Raven Software coaster

Prints (0)

Description

Raven Software coaster

Raven Software (or Raven Entertainment Software, Inc.) is an American video game developer based in Wisconsin and founded in 1990. In 1997, Raven made an exclusive publishing deal with Activision and was subsequently acquired by them. After the acquisition, many of the studio's original developers, largely responsible for creating the Heretic and Hexen: Beyond Heretic games, left to form Human Head Studios.

source: https://en.wikipedia.org/wiki/Raven_Software

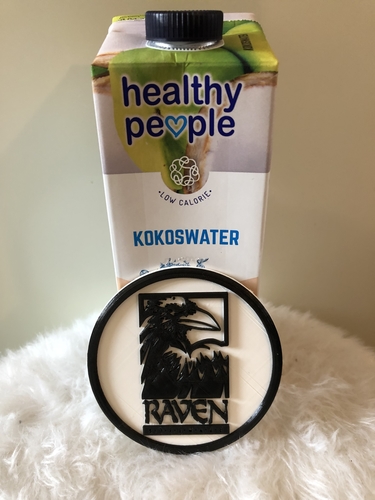

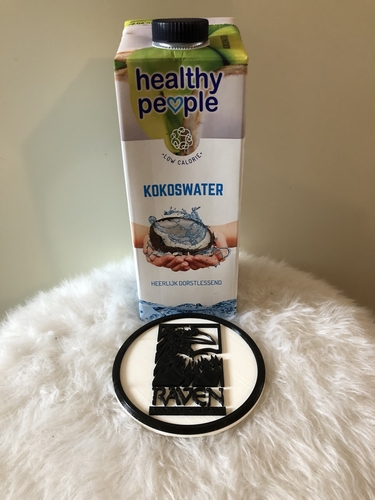

Use this coaster to place your favourite drink. If you have printed it, don't hesitate to show of your skills and upload a picture.

This is a standard size coaster (100 by 100 by 5 mm), to fit in my coasterholder:

https://www.thingiverse.com/thing:3130397

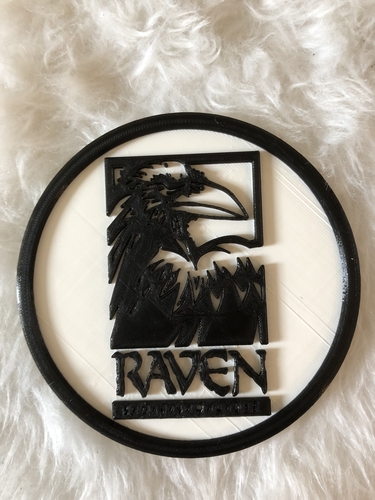

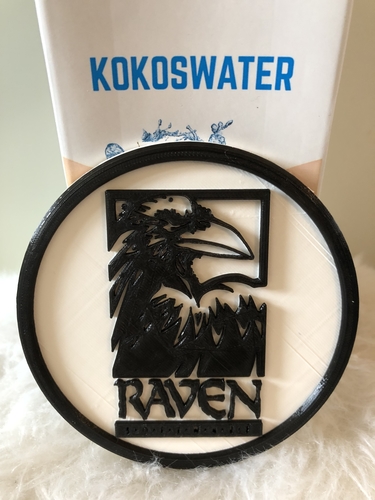

I have printed this model with Ultimaker white PLA. I used 0.2mm layer height and, 18% infill. I used a 0.4mm nozzle with my extruder at 210 degrees Celcius. I used a heated bed. To avoid the curling up at the bottom i used a brim. Don't hesitate to use your own configuration....no worries!

Design steps

I picked a logo from my browser and have put it in svg format in inktscape. Opened the svg file in blender and made it a 3D object. In meshmixer i have repaired the file; and erased some aspects. In meshmixer i have also added a coaster. Than i have merged the coaster with the picture after scaling the picture. I made the drinkcoaster in 123D Design using simple model techniques. You can also choose to make a template of a drinkcoaster in another program. For example: tinkercad. Or download a template of my website (https://www.thingiverse.com/thing:3542555). Saved it as a STL file and sliced it for printing. Cause the model has still some issues even after repairing it in meshmixer; i have decided to export it into Netfabb Online Service. This is an app i discovered recently after using MakePrintable. Cause MakePrintable in my opion only gives us 3 procedures of fixing an STL file and, with Netfabb Online Service the frequency of STL fix procedures is unlimited, my choice was clear. It worked well for me and i could slice the model without any problems.

If you would like to know how i design a 2D picture (google) into a 3D model. Use this link:

https://www.youtube.com/watch?v=g6cmClwLhz8 (video is under 6 min.)

2D to 3D in Blender

use this link to download blender for free: https://www.blender.org/download/

use this link to download inkscape for free: https://inkscape.org/nl/download/

Best,

Raimon of IdeaLab

:)

Design Files

File Size

raven coaster_fixed.stl
6.25 MB
