Bird Cathedral

This is a Bird Feeder for little Birds. It's design is inspired by Gothic Cathedrals :-)

Only small Birds can get in due to the small openings. Now they have a save place to eat and if necessary they can escape trough one of the four sides :-)

Of course there is also a place for bigger Birds to eat. They can go to the Tower on top. This tower is also a Seed dispenser. It can be filled by taking the Tower Roof off. By turning the green ring it is possible to regulate the amount of Seeds coming out.

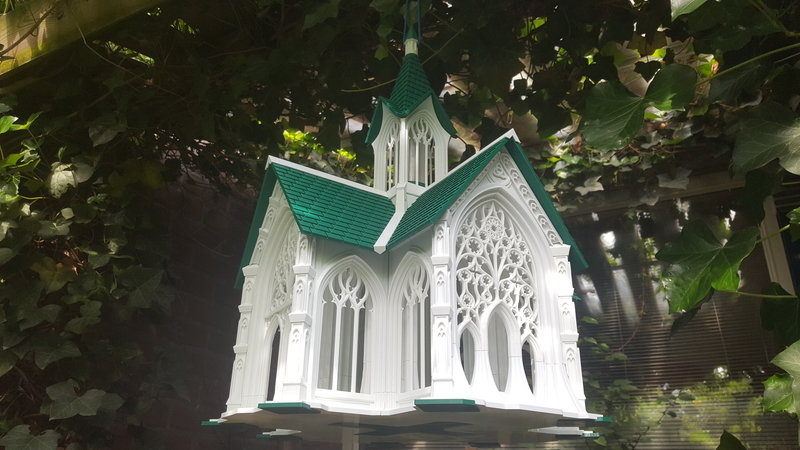

The Bird Cathedral is designed to stand on a floor or table, but it is also possible to hang it from a tree. Then the Birds are less worried about Cats etc. :-)

The green center floor can be taken out for cleaning purposes.

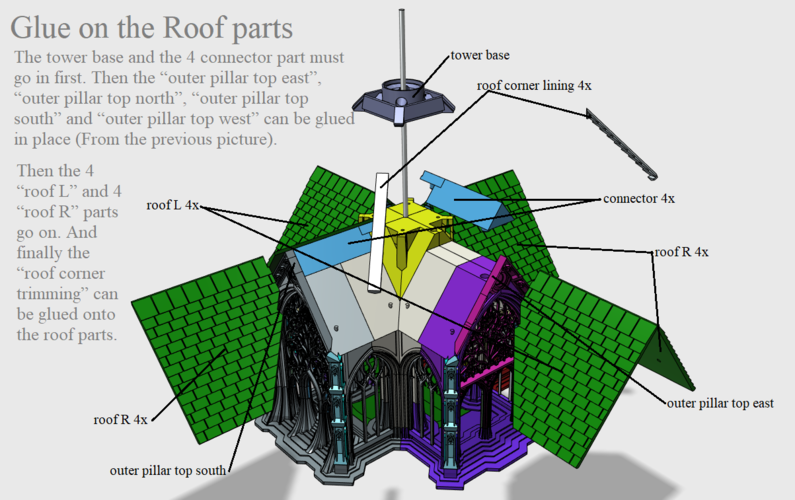

Included with the files is an “ manual “ to get an idea how the parts come together. They are also shown with the pictures one the website. But be warned. On the website they are NOT in the chronological order.

Needed parts:

M6 treated rod, length 255mm

M6 nut& super glue /lock nut

M6 nut

White PLA around 2900 gram

Green PLA around 550 gram

PET-G around 10 gram

313 hours :-)

List of files that need to be printed:

inner part1 center.stl 2X

inner part2 center.stl 2X

north:

north gate.stl

entrance north.stl

inner part L1 north.stl

inner part R1 north.stl

inner part L2 north east south west.stl

inner part R2 north east south west.stl

inner arch above gate.stl

inner arch support north L.stl

inner arch support north R.stl

window L.stl

window R.stl

window glass A.stl 2X

window glass B.stl 2X

East:

east & west L gate.stl

east & west R gate.stl

entrance east.stl

inner part L1 east & west.stl

inner part R1 east & west.stl

inner part L2 north east south west.stl

inner part R2 north east south west.stl

inner arch above gate.stl

inner arch support east & west L.stl

inner arch support east & west R.stl

window L.stl

window R.stl

window glass A.stl 2X

window glass B.stl 2X

South:

south gate.stl

entrance south.stl

inner part L1 south.stl

inner part R1 south.stl

inner part L2 north east south west.stl

inner part R2 north east south west.stl

inner arch above gate.stl

inner arch support south L.stl

inner arch support south R.stl

window L.stl

window R.stl

window glass A.stl 2X

window glass B.stl 2X

West:

east & west L gate.stl

east & west R gate.stl

entrance west.stl

inner part L1 east & west.stl

inner part R1 east & west.stl

inner part L2 north east south west.stl

inner part R2 north east south west.stl

inner arch above gate.stl

inner arch support east & west L.stl

inner arch support east & west R.stl

window L.stl

window R.stl

window glass A.stl 2X

window glass B.stl 2X

base center floor.stl /base center floor REMOVABLE.stl (print with support material)

base east & west side.stl 2X

base north side.stl

base south side.stl

window glass A.stl 8X

window glass B.stl 8X

outer pillar L1 east & west.stl 2x

outer pillar L1 north.stl

outer pillar L1 south.stl

outer pillar L2 NESW.stl 4x

outer pillar L3 NESW.stl 4x

outer pillar R1 east & west.stl 2x

outer pillar R1 north.stl

outer pillar R1 south.stl

outer pillar R2 NESW.stl 4x

outer pillar R3 NESW.stl 4x

outer pillar top east.stl

outer pillar top north.stl

outer pillar top south.stl

outer pillar top west.stl

roof corner lining.stl 4x

roof L.stl 4x

roof R.stl 4x

connector.stl 4x

tower base.stl

tower top.stl 2X

tower top connector.stl 4X

tower top roof.stl

feeder ring.stl

tower roof.stl

tower feeder container SPIRAL OUTER CONTOUR MODE.stl

tower.stl

tower window.stl 4x

roof top lining.stl 4x

foot north, east & west L.stl 3x

foot north, east & west R.stl 3x

foot south L.stl

foot south R.stl

If you have any questions feel free to ask.

Do you think I made a mistake or forgot something feel free to inform me :-)
