painters pyramide - stackable

Prints (0)

Description

Update Painter Pyramide V2!

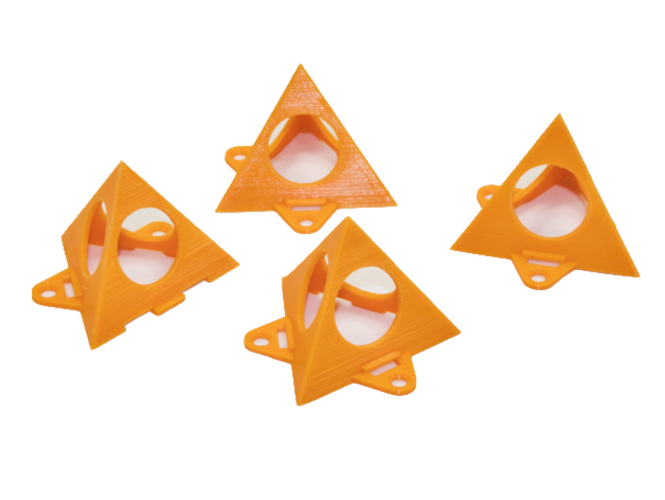

I made some minor changes to my original Design. The updated version is no interlocking as you can see in the pictures. There is now also a second type with a flat face at the top available. The pointy version can be used for harder materials and when you want to flip the part when the paint is still fresh, it will leaves smaller marks. The flat version is for painting heavier objects or when using softer materials, because the pointy version tends to leave impression marks when pressure from above is applied to the object.

The size except the height remained the same.

« Links »

Here is a short video where I show that three of these flat pyramids can take up to 80Kg of weight: https://youtube.com/shorts/NuWcdzu4RmA?feature=share

________________________________________________________________________________________________________________

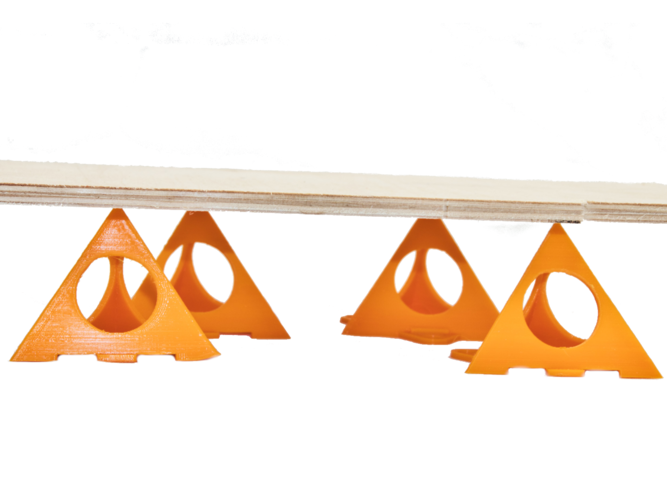

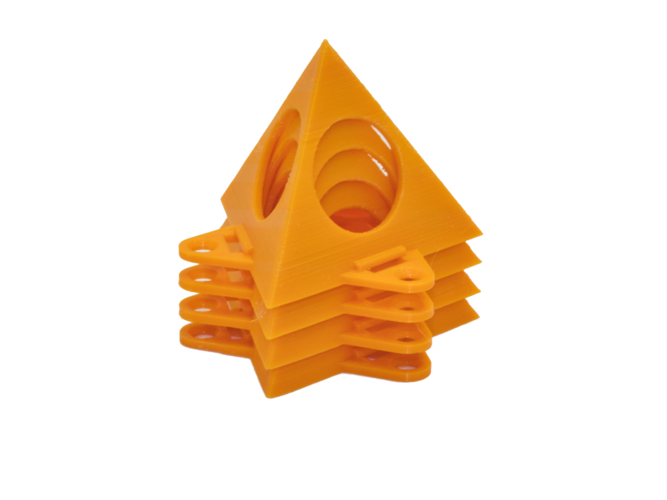

This paitners Pyramide helps you to lift your work piece, so you can paint it direcly from both sides. The pointy top ensures minimal surface contact. The pyramides are stackable, so they don't require much space, when being stored. Each pyramide has a ground plate of 60mm x60mm and a height of 45mm.

_________________________________________________________________________________________________________________

Printing Parameters

Support                No supports required

Print Speed            50mm/s

Infill                             20%

Travel-Speed          100 mm/s

Nozzle-Temp           210 °C

Build plate Temp.   60°C

Layer Resolution    0,15 mm

Nozzle Diameter     0,4 mm

Print Time                   53 min

Filament                       PLA Orange

Amount of Filament     7 g

Used Printer                Anycubic i3 Mega

Design Files

File Size

pointy_painters_pyramide_V2.stl
175 KB
flat_painters_pyramide_V2.stl
174 KB
