Bar-End Plugs

Prints (0)

Description

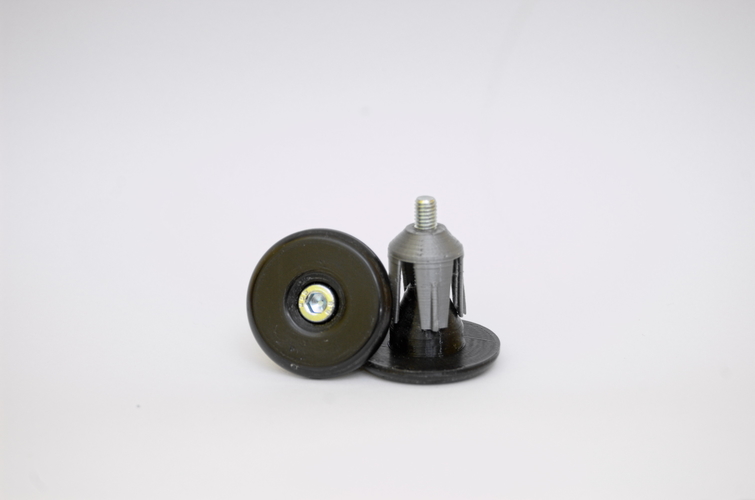

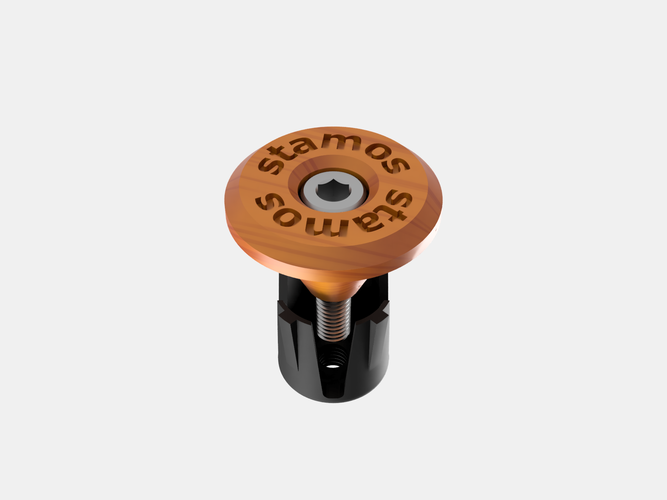

Quality plugs with effective grip. You will never lose your plugs again and will protect your bar in case of a crash. With this specific design the plug is very strong and if you over-tighten it, you will not destroy the plug but only the wedge (in contrast with the usual wedge design). There are two sizes: one with large (32mm)outer diameter if you are using lock-on grips (the cap will also protect the rings) and  one with small (28mm) outer diameter for simple grips. There is a version with my name embossed and one without, in each diameter.

Except for the printed parts you will need a pair of M5 bolts (25mm). You don't need nuts because the wedge has built-in threads. Before you insert the plug into the bars, tighten the wedge a bit, so the plug fits snugly in the bar. That way the wedge will not rotate.Then tighten the bolt (do not use excessive force).

Design Files

File Size

Wedge.stl
1.52 MB
Plug 28mm.stl
604 KB
Plug 32mm.stl
577 KB
Plug stamos 28mm.stl
952 KB
Plug stamos 32mm.stl
950 KB
