DIY SUITCASE PARTS

Prints (0)

Description

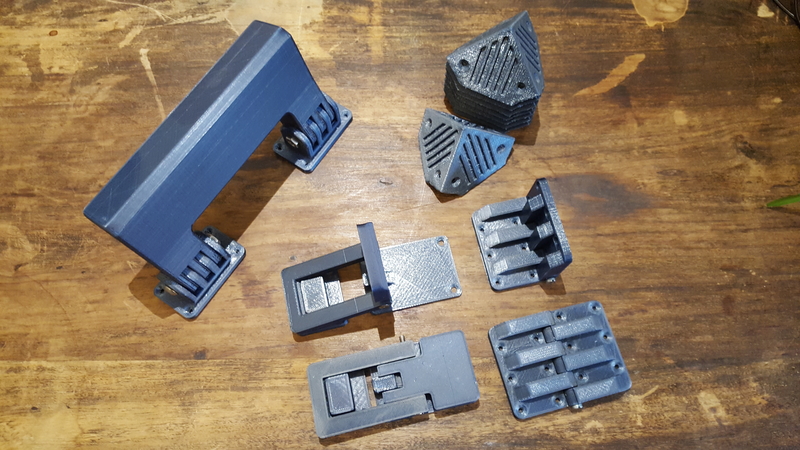

These are parts for making your own suitcase. :-)

There are two kinds of handles (big and small). You can choose 4 different kinds of corner protectors. Also there are 4 closures available. See print screen for more information

For the closure you need an M4x40mm bolt, M4x20mm bolt &2 M4 nuts For the handle you need 2X M6x40mm & 2x M6 nuts For the hinge you need an M4 x 65mm bolt & m4 nut

You do not need support material for printing,  but for one of the corners it may be necessary depending of the orientation on the bed of the printer.   See print screen of cura.

If you think I have missed a part that’s necessary, please let me know.  :-)

Printed in PET-G resolution 0.2mm

Design Files

File Size

handle hinge.stl
3.77 MB
handle big.stl
6.14 MB
corner plane no filet.stl
542 KB
closureA1.stl
1.51 MB
closureA2.stl
93.8 KB
closureA3.stl
117 KB
closureA4.stl
1.63 MB
closureB2.stl
94 KB
closureB3.stl
747 KB
closureC1.stl
91.9 KB
closureC2.stl
69 KB
closureC3.stl
100 KB
closureC4.stl
82.1 KB
closureD2.stl
68.8 KB
corner filet.stl
971 KB
corner no filet.stl
599 KB
corner plane filet.stl
915 KB
handle small.stl
1.28 MB
hinge with open stop1.stl
1.03 MB
hinge with open stop2.stl
1.14 MB
hinge1.stl
1.07 MB
hinge2.stl
1.23 MB
