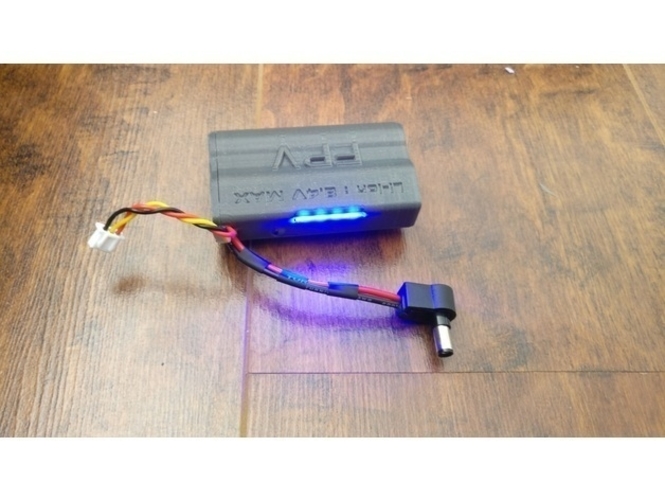

Fatshark 18650 FPV battery Case with LED

This design is for mature audiences only. NSFW Show it anyway

Prints (1)

Description

Check the making of video and how its assembled.

https://www.youtube.com/Fatshark 18650 li-ion FPV battery Case with LED

I finally got version 2 with led done. I kept it almost the same size as v1, I printed one and assembled it and is working perfect. So enjoy

Needed components

2x li-ion battery (from old laptop battery) http://www.banggood.com/2PCS-I... Battery Voltage Display Indicator Board http://www.banggood.com/1-5S-L... Angled DC jack ID2.2mm OD5.5 http://www.ebay.com.au/itm/DC-... 3pin JST-XH female plug http://www.ebay.com.au/itm/10-...

Print Settings Printer: Kossel Xl Rafts: No Supports: Yes Resolution: 0.25 Infill:15%

Design Files

File Size

fatshark18650case_v3.stl
398 KB
fatshark18650top_v3.stl
242 KB
fatshark18650top_v2.stl
253 KB
fatshark18650cas_v2.stl
392 KB
