TDCS Enclousre
Free

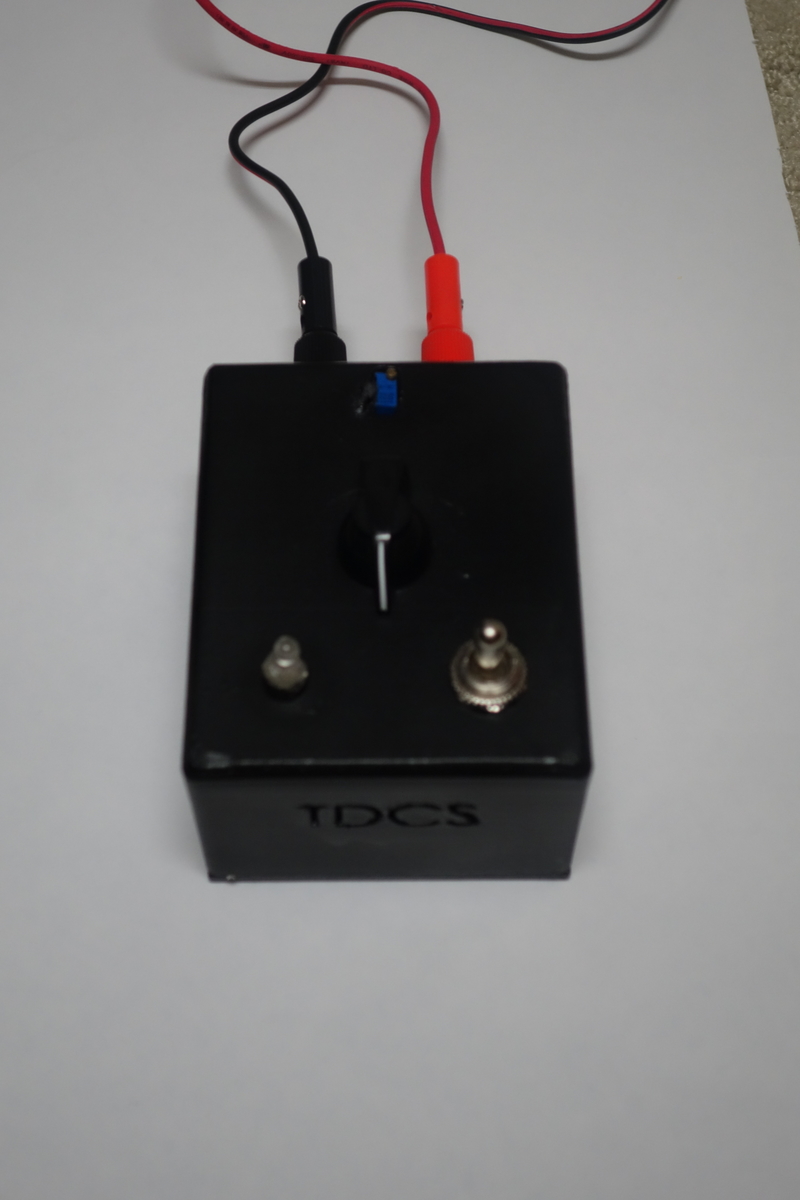

A simple enclosure for a basic TDCS device made using the parts listed in the guide here: http://www.makeuseof.com/tag/b...  Description of holes (Assuming the 'TDCS' text is the front face. The bottom left hole is for the Led with its housing The bottom right hole is for the toggle switch (may need to be adjusted depending on the size of your toggle switch) The middle hole is for the large potentiometer The top hole is for the trim potentiometer (optional) The holes on the very top of the box are for the anode and cathode banana jacks

Loading comments...

Loading prints...

TDCS Enclousre

likes
0 collections
Tags:
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
TDCS_3d_Print.stl
STL Model
212.9 KB
File size
Free download - login required
Downloaded: 18 times
