Description

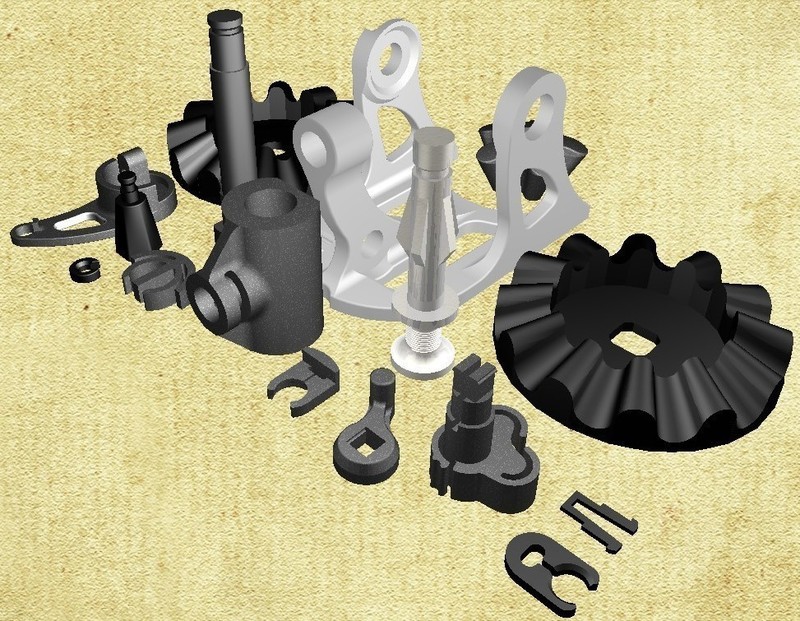

This is a design that I entered into the GrabCAD "da Vinci Gear Challenge". All files are "fixed" using NetFabb, and are 100% printable with zero support material. The machine works, and makes a beautiful coffee-table accent, if nothing else. I would love to see your version(s) of my machine... please share them here!
Design Files
File Size
Gear left_fixed.stl
787 KB
Handle_arm_fixed.stl
1.11 MB
Pivot_fixed.stl
252 KB
Handle_fixed.stl
969 KB
Retaining_clip_axle_fixed.stl
110 KB
Ratchet_handle_fixed.stl
602 KB
Ratchet_fixed.stl
399 KB
Retaining_clip_handle_fixed.stl
530 KB
Handle_base_fixed.stl
129 KB
Stand_fixed.stl
2.72 MB
Axle_v2_fixed.stl
2.57 MB
Carrier_fixed.stl
541 KB
Central_gear_fixed.stl
796 KB
Gear right_fixed.stl
550 KB
Retaining_clip_pivot_fixed.stl
429 KB
Retaining_clip_ratchet_handle_fixed.stl
9.75 KB
