Description

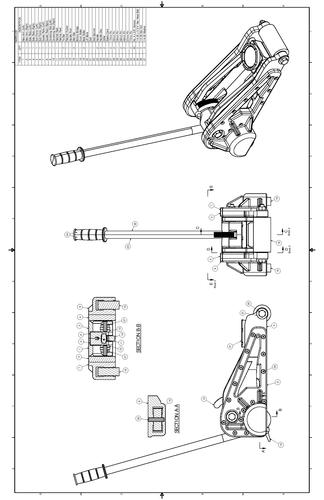

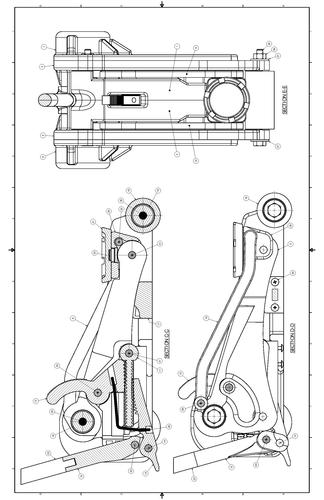

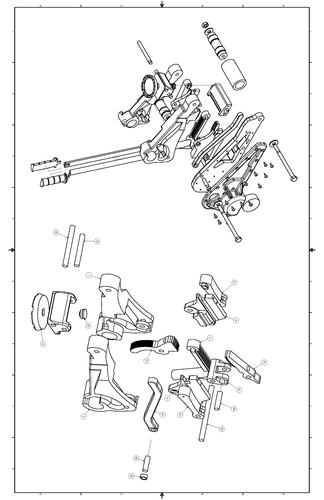

This is a working model of a floor jack.  It goes from 50mm to 175mm with a few pumps of the handle.  It can only lift a few pounds, so it's not meant for actually jacking anything.  I printed it pretty heavy at 50% infill for stability.  About 50 hours and 800 grams of filament.  I included the pins as printable objects, but I used 1/4" aluminum rod instead.  The print also requires forty two (42) No. 4, 3/8" button head screws and two (2) 1/4-20 x 4" long bolts.  You'll have to grind a little bit off the end of the bolts for a nicer look.

Design Files

File Size

Dish.stl
183 KB
26mm Pin.stl
29.2 KB
17mm Pin.stl
28 KB
Back Roller.stl
33 KB
77mm Pin.stl
28 KB
Collar.stl
37.2 KB
Conecting Rod (Right).stl
81.4 KB
Dish Spinner.stl
63.9 KB
Gusset Plate (Left).stl
567 KB
24mm Pin.stl
30.6 KB
Ratchet Pawl.stl
317 KB
Ratchet Pusher.stl
64.2 KB
Ratchet Rack.stl
103 KB
Side Plate (Left).stl
521 KB
Gusset Plate (Right).stl
567 KB
Handle Pivot.stl
241 KB
Handle.stl
15.7 KB
Lift Block.stl
289 KB
Side Plate (Right).stl
521 KB
Main Arm (Left).stl
191 KB
Sub Frame (Left).stl
74.9 KB
Main Arm (Right).stl
191 KB
Sub Frame (Right).stl
74.9 KB
Main Bar.stl
184 KB
Tie Bar.stl
71.3 KB
20mm Pin.stl
33.1 KB
44mm Pin.stl
27.4 KB
Bottom Bridge.stl
63 KB
Conecting Rod (Left).stl
81.4 KB
Front Roller.stl
57.1 KB
57mm Pin.stl
28.6 KB
Handle Grip.stl
308 KB
