Phaser Rifle from Star Trek The Original series

Prints (0)

Description

Model dimensions:

- length – 904 mm

- height – 360 mm

- width – 121.5 mm

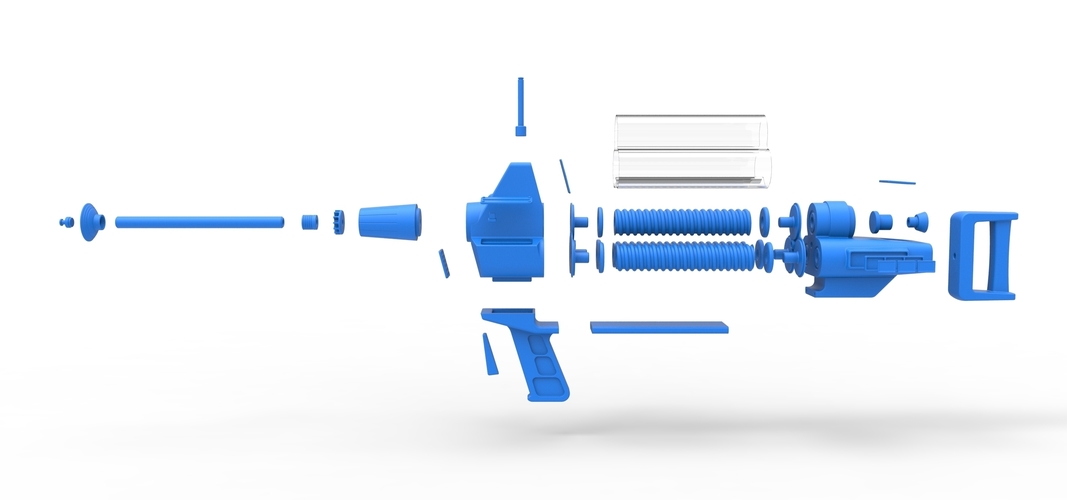

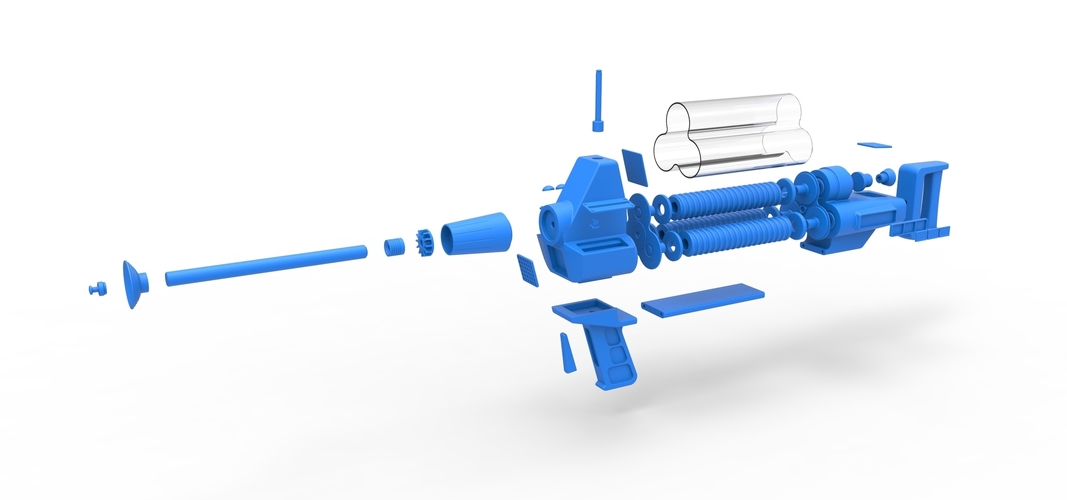

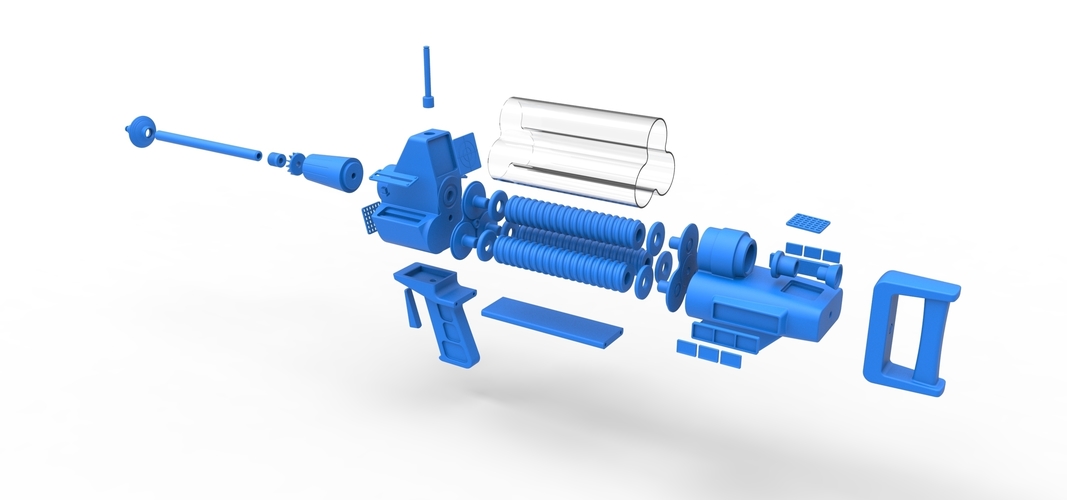

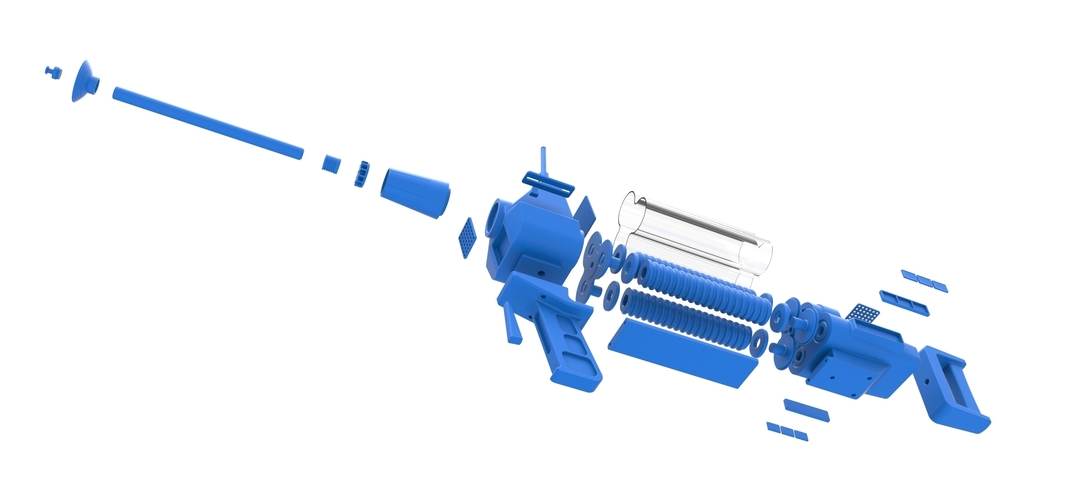

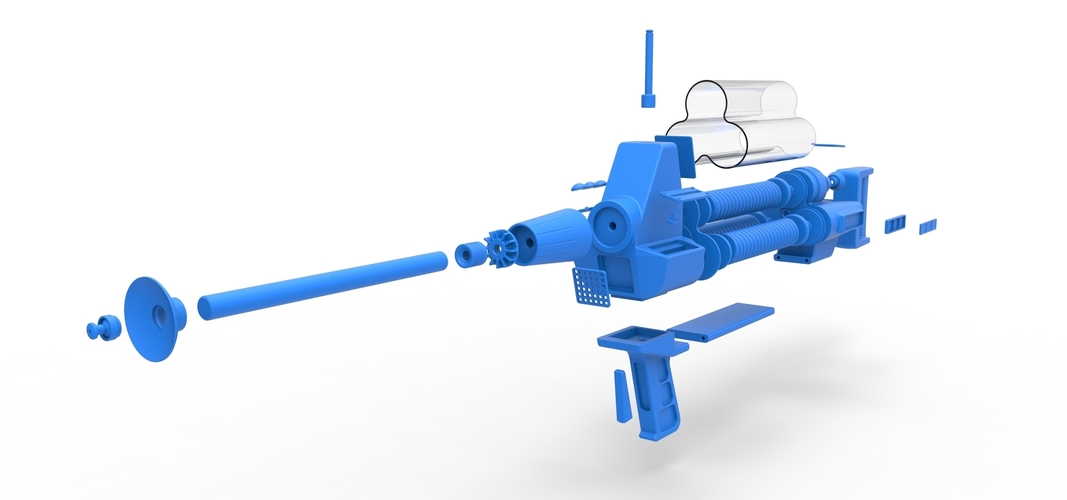

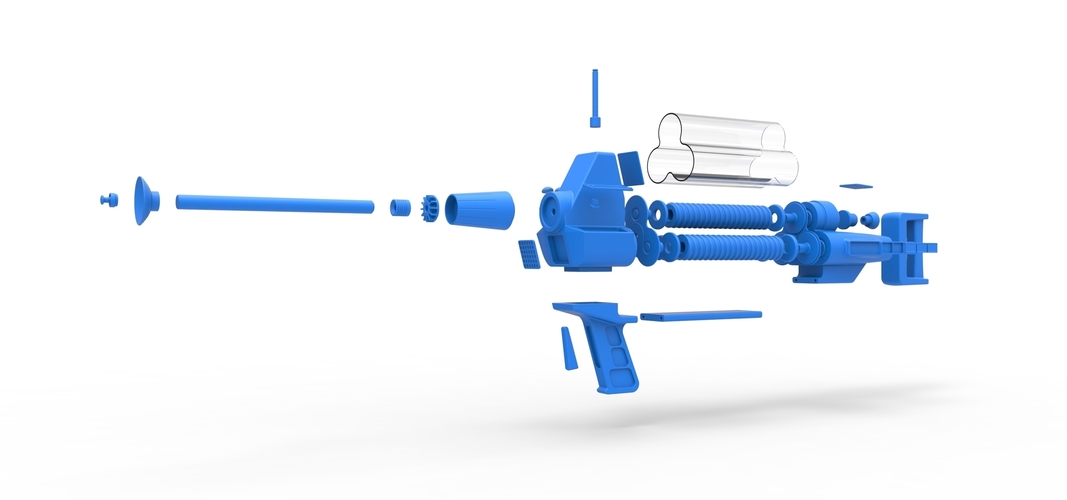

Model consists of parts: barrel insert, barrel part 1, barrel part 2, barrel part 3, barrel part 4, body front part, body middle part, body rear part, chambers, emiter, front grid, front handle, indicators, left insert, plates, rear grid, rear handle, rear side insert, regulator, right insert, scope part 1, scope part 2, screen, shell, side buttons, sight, trigger, washers.

During assembly, use guiding rods or tubes d=4 and d=8 mm.

Designed in Solid Works 2012, rendered in Keyshot 5.0.99.
