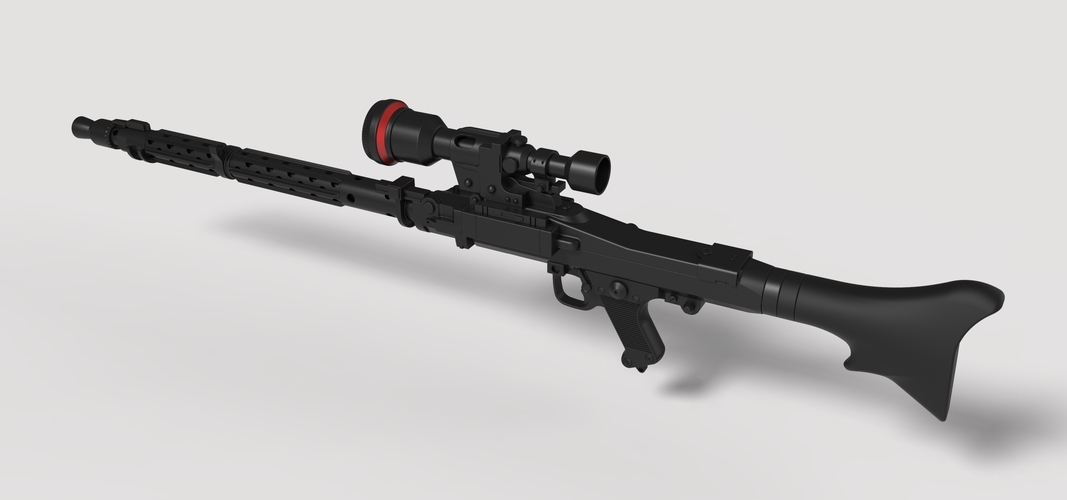

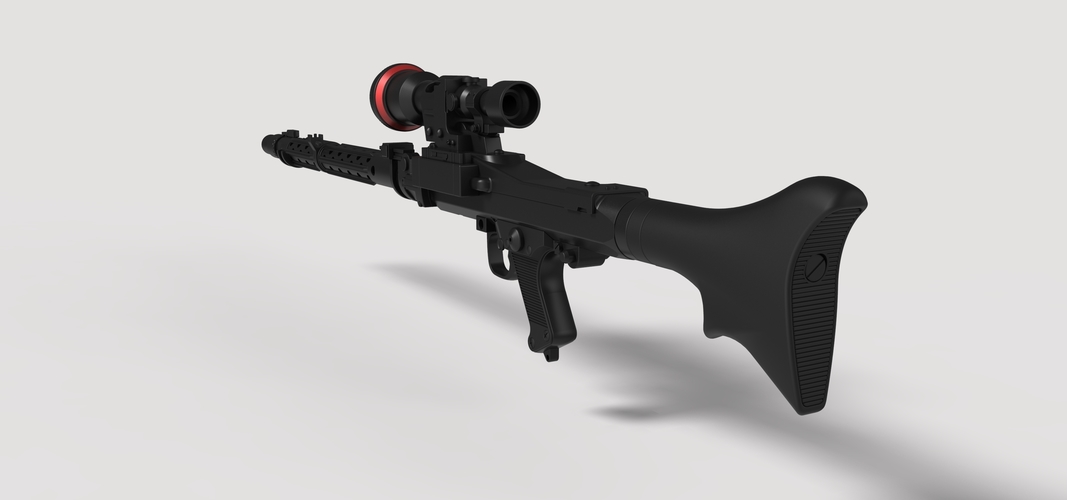

Stormtrooper Heavy Blaster Rifle DLT-19X from Star Wars

Description

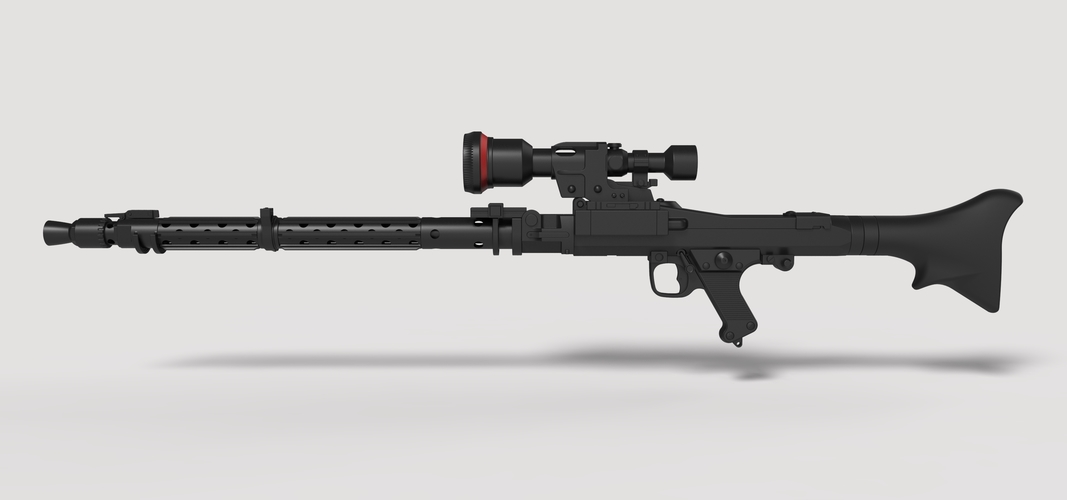

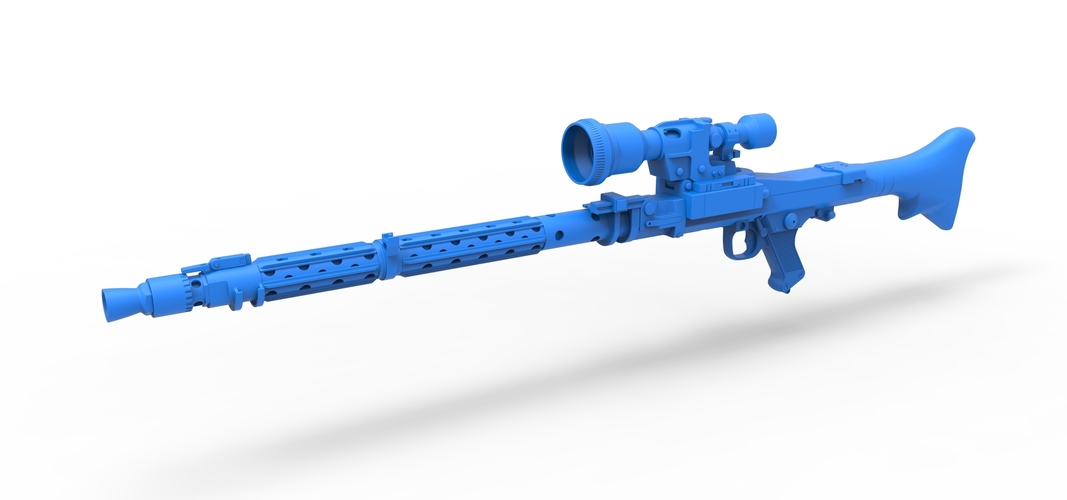

The DLT-19X targeting blaster was a blaster rifle, and a variation of the DLT-19 heavy blaster rifle. Unlike the DLT-19, the DLT-19X released all of its power in one shot before it would need to cool down. The DLT-19X was a very powerful weapon, and could take down most enemies in one shot.

Model dimensions:

- length – 1219 mm

- height – 271.8 mm

- width – 130 mm

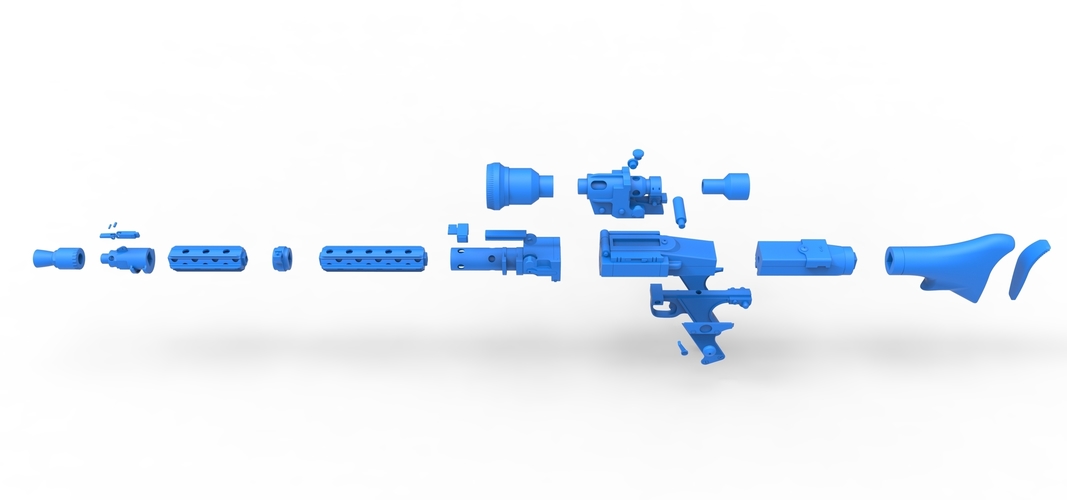

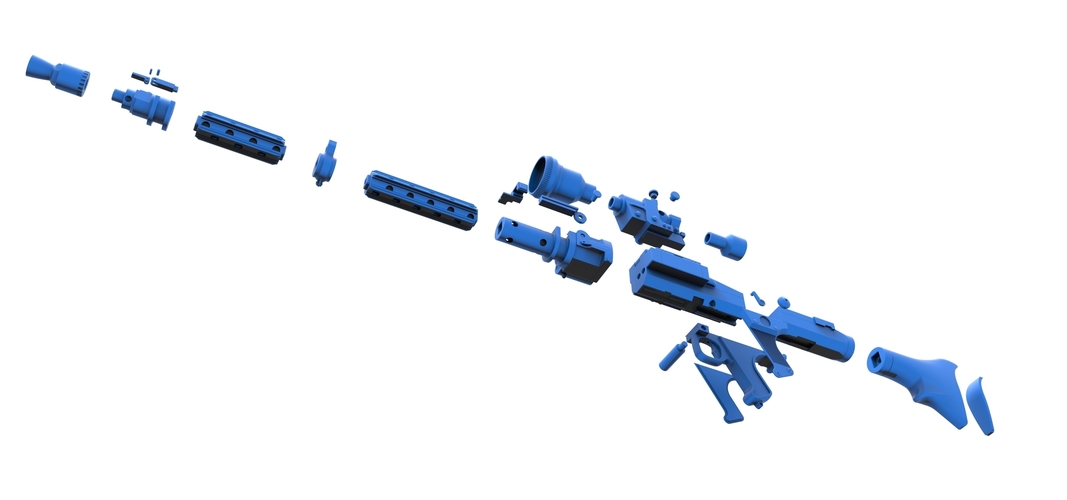

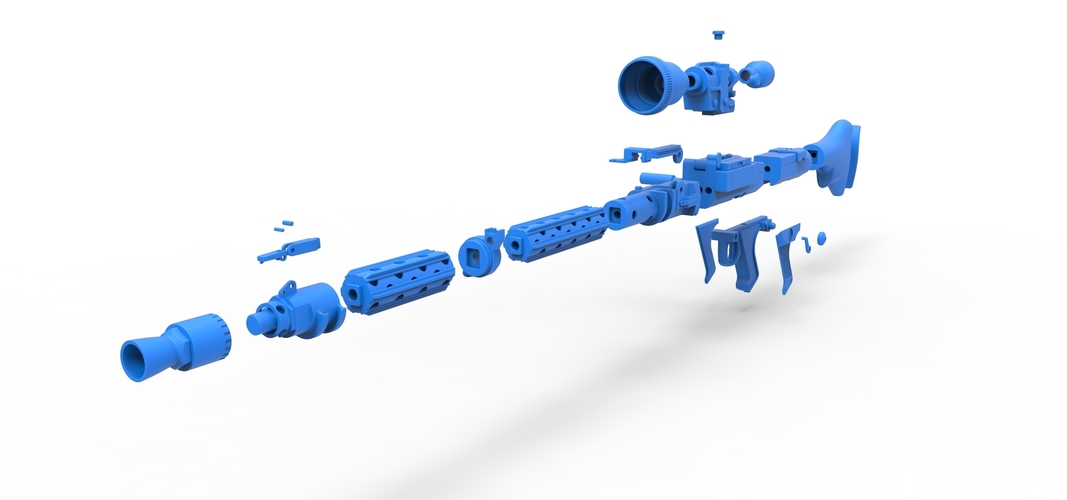

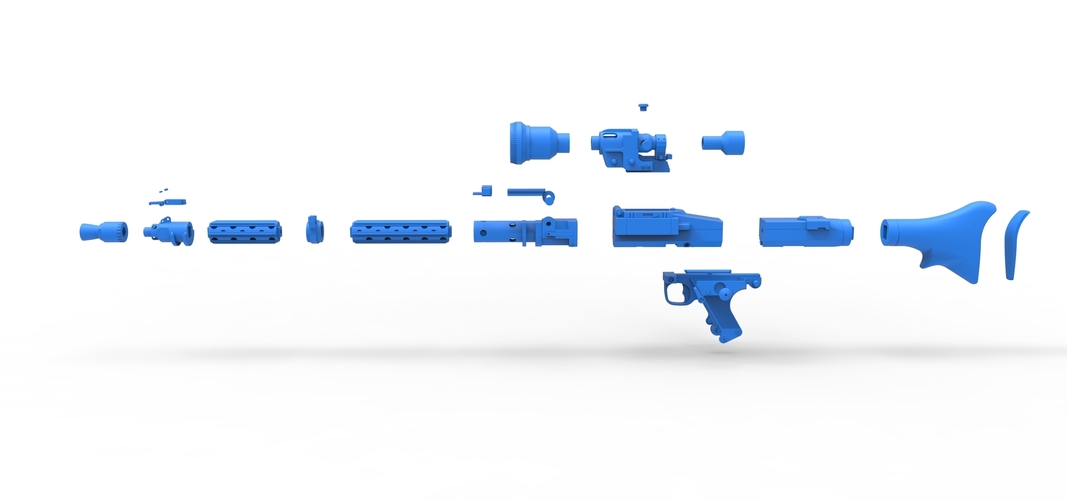

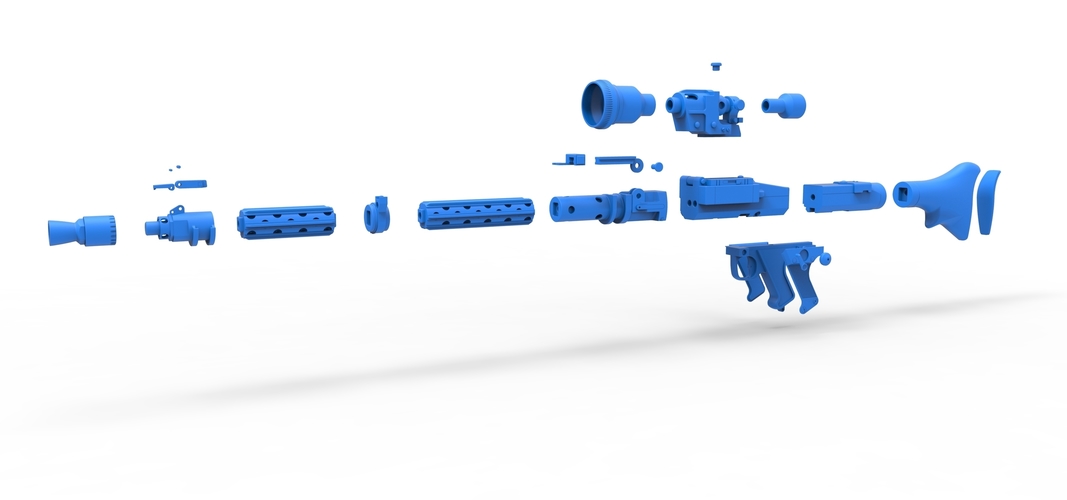

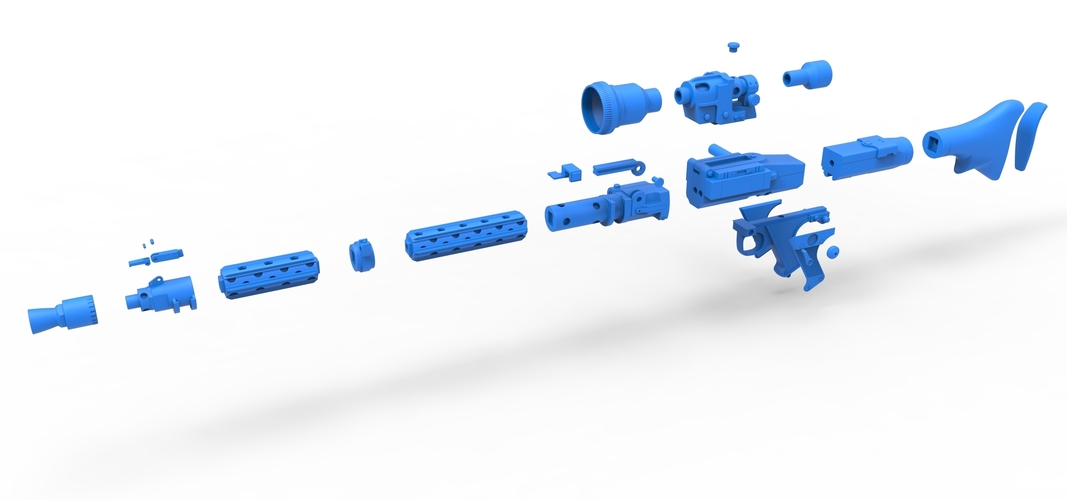

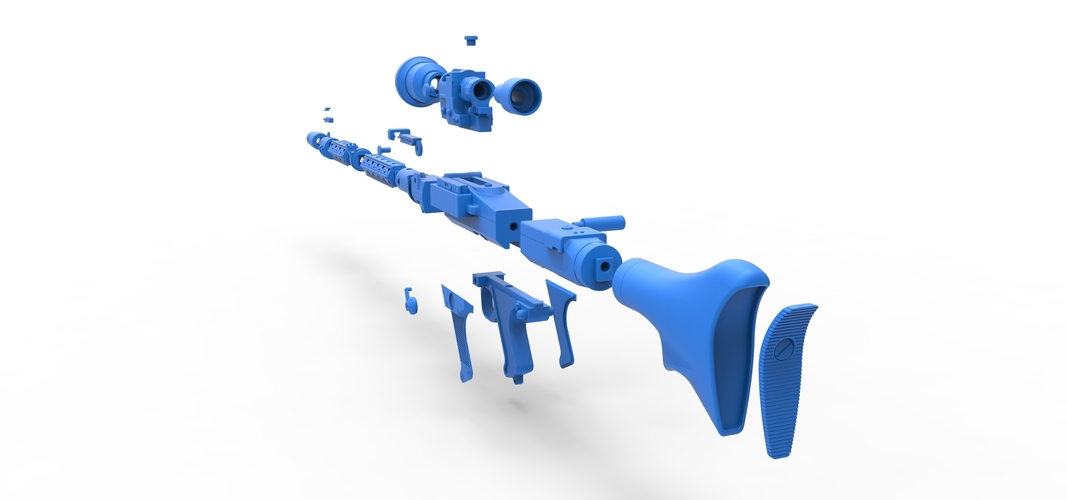

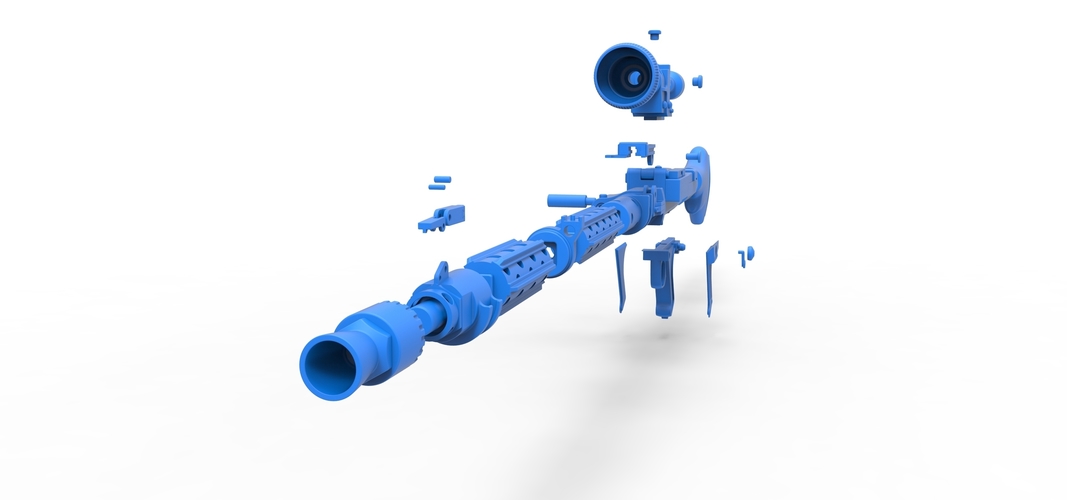

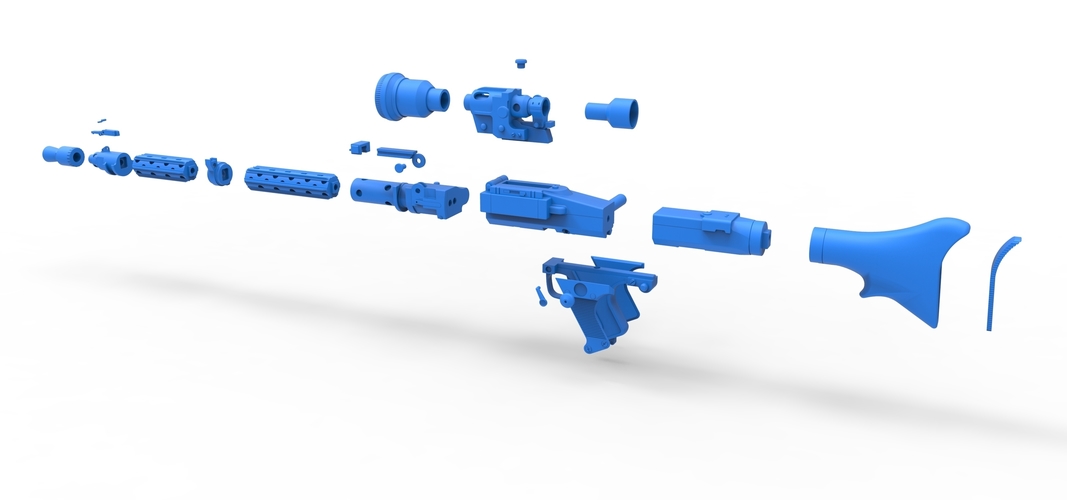

Model consists of parts: Barrel part 1, Barrel part 2, Barrel part 3, Barrel part 4, Barrel part 5, Barrel part 6, Body part 1, Body part 2, Butt, Disks, Fixator, Handle button, Handle, Left grip, Lever, Pin 1, Pin 2, Pin 3, Rear insert, Rear sight part 1, Rear sight part 2, Right grip, Scope body, Scope front part, Scope rear part, Sight, Tube.

Pins 1 and 2 need to bee from metal.

During assembly, use guiding metal rods or tubes d=10 mm.

Designed in Solid Works 2012, rendered in Keyshot 5.0.99.
