PiMac - Raspberry Pi 7 Inch Touch Screen Stand (with Camera)

Description

[Upload] 20190924

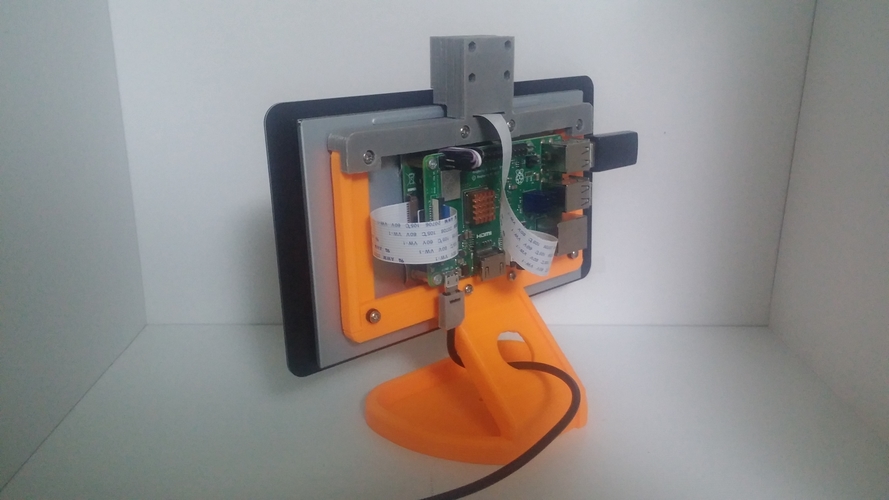

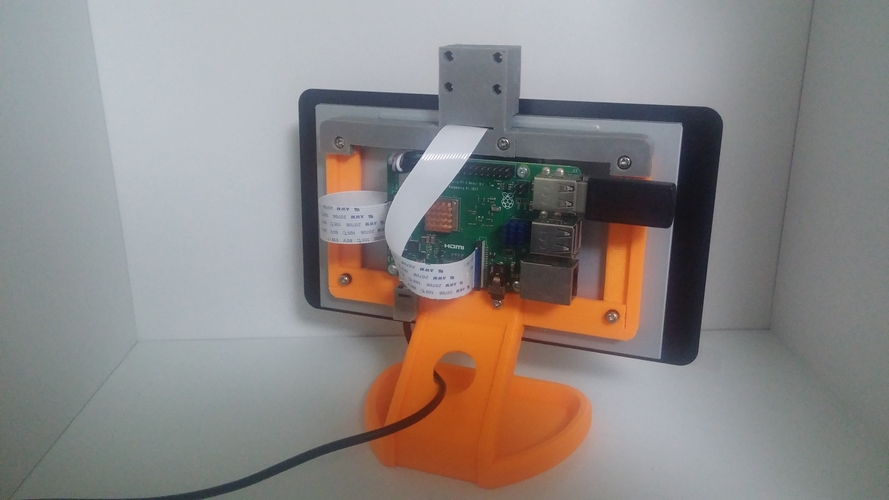

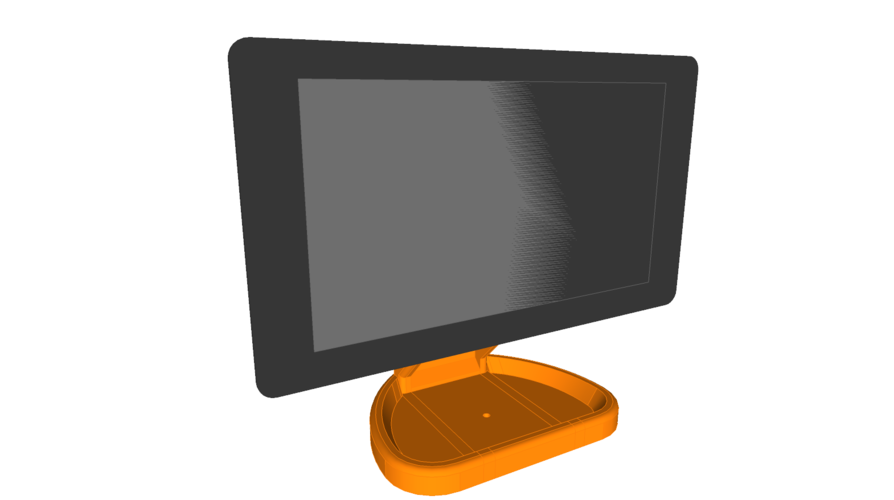

PiMac is a stand for the official Raspberry Pi Touchscreen screen.

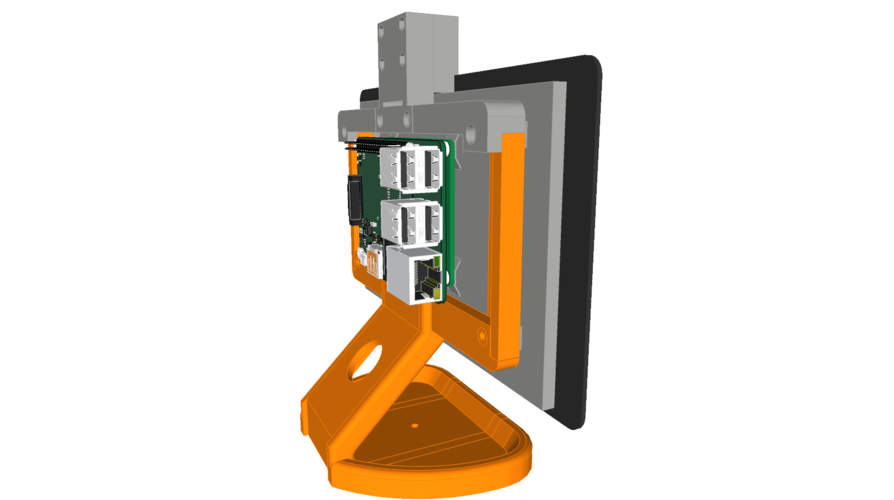

Camera can be mounted for the Raspberry Pi.

PiMac is designed to resemble an Apple iMac.

Parts

  • 1 x Raspberry Pi 7 Inch Touch Screen
  • 1 x Raspberry Pi Camera
  • 3D Plinted Parts
  • 5 x M3 x 12mm Bolts
  • 4 x M3 x 10mm Bolts
  • 5 x M3 Nuts
  • 4 x M2 x 16mm Bolts
  • 4 x M2 Nuts

------------------------------------------------------------------------------------------

  • Design Tool: SketchUp
  • 3D Printer: PANDORA DXs - DIY Desktop 3D Printer
  • Slicer: Cura 15.04.6
  • Layer height (mm): 0.2
  • Shell thickness (mm): 1.6
  • Bottom/Top thickness (mm): 0.8
  • Fill Density (%): 15
  • Print speed (mm/s): 60
  • Print temperature: 200
  • Bed temperature: 0
  • Filament: PLA
  • Filament Diameter (mm): 1.75

Design Files

File Size

Raspberry_Pi_7_Inch_Touch_Screen_Stand_C.stl
89.6 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountBottom_3mm.stl
37.6 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountLeft_3mm.stl
15.1 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountRight_3mm.stl
15.1 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountTop_3mm.stl
40.8 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountTopCameraBracket_3mm.stl
56.9 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountTopCameraFrontCover_3mm.stl
65.6 KB
Raspberry_Pi_7_Inch_Touch_Screen_Stand_MountTopCameraRearCover_3mm.stl
37.4 KB
