Fusion Sword from Final Fantasy VII

Prints (0)

Description

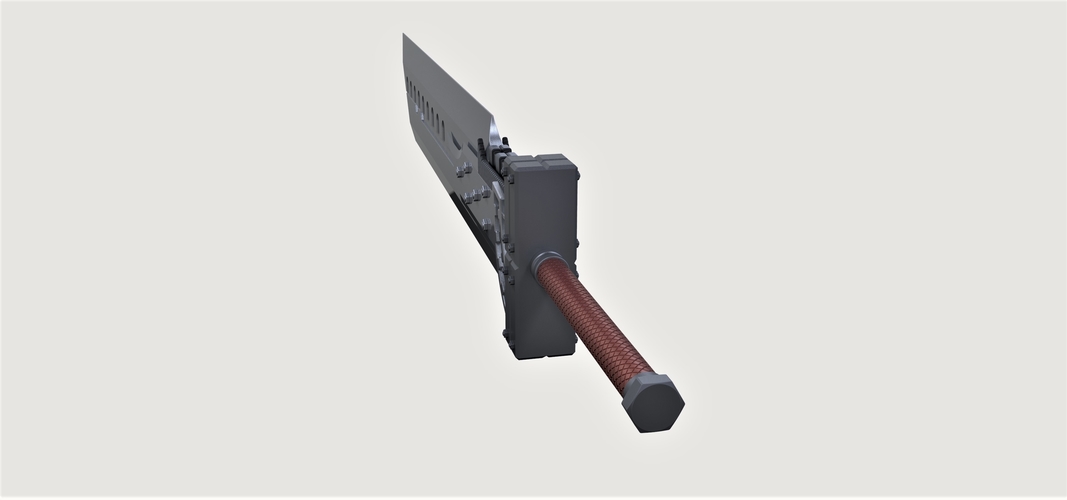

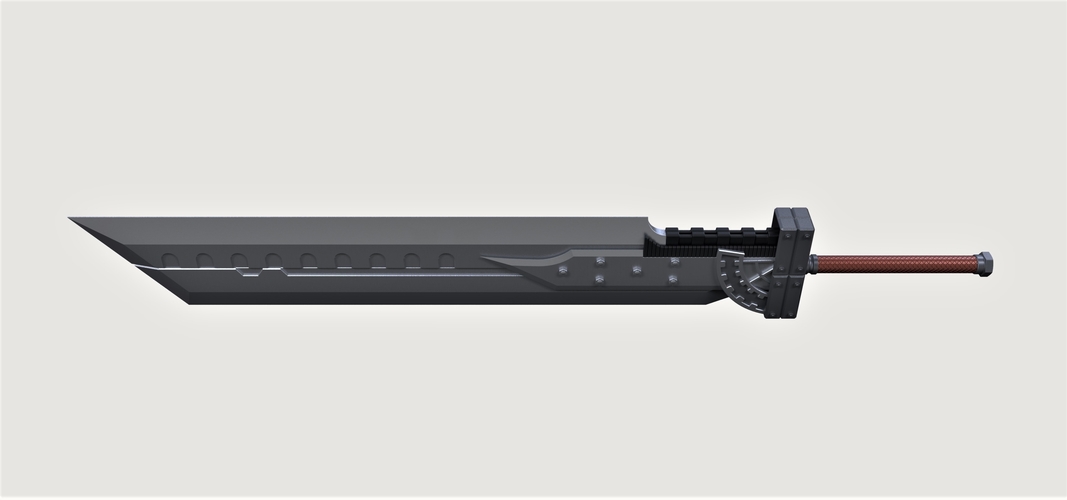

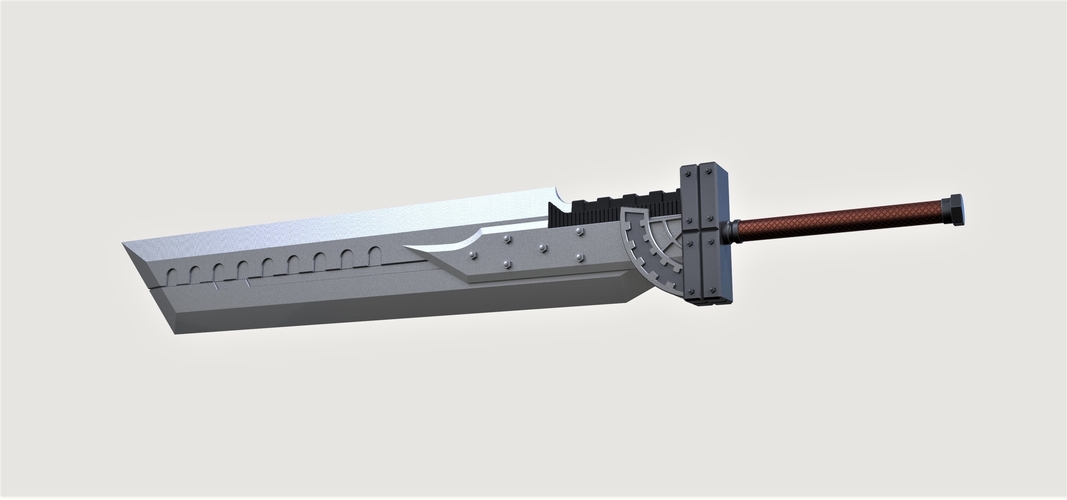

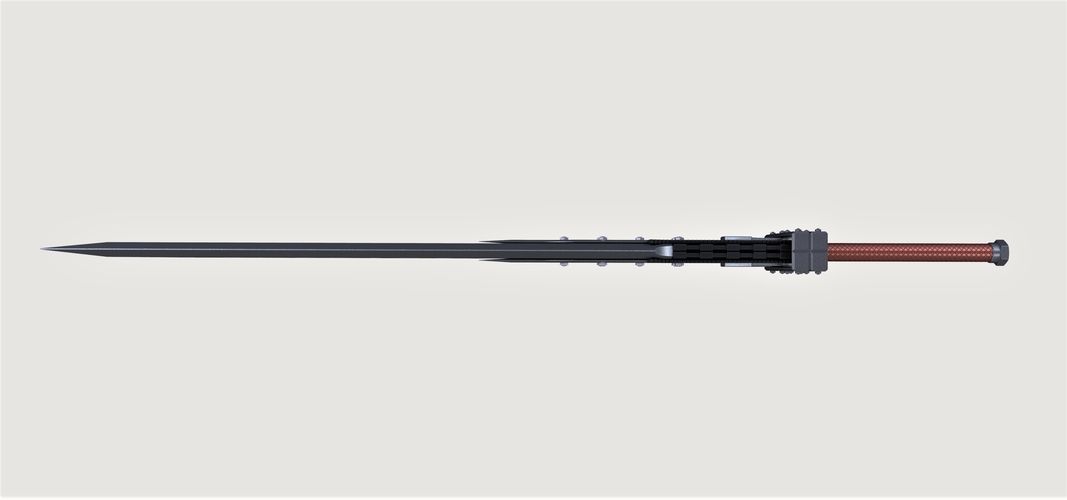

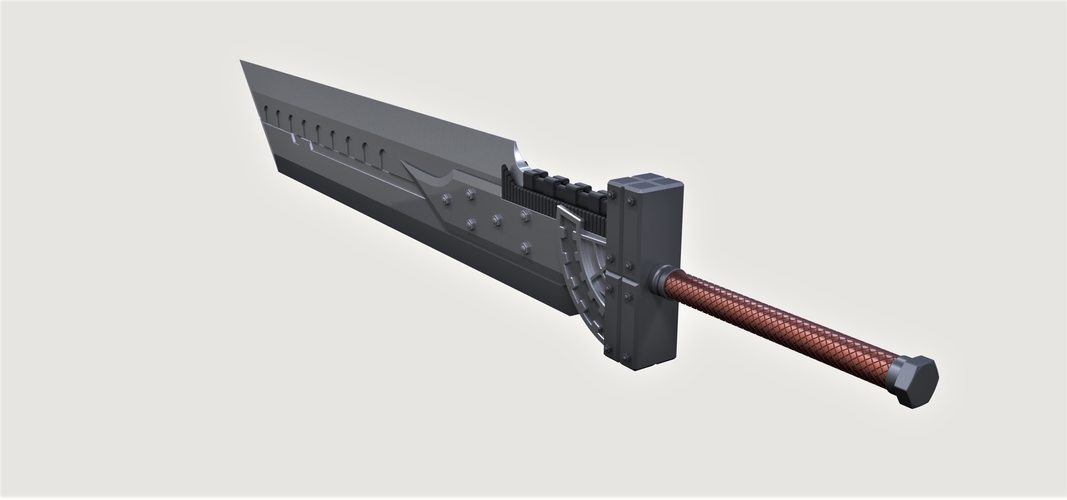

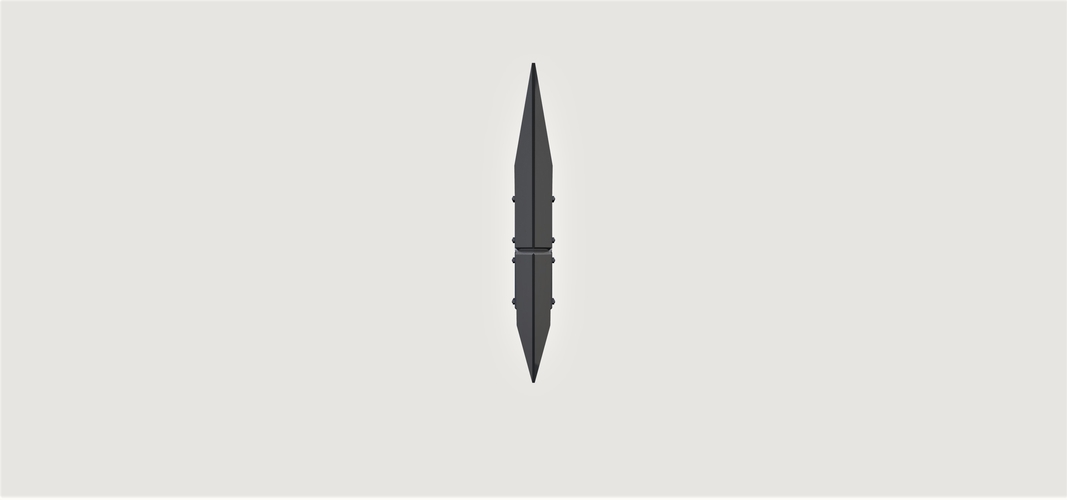

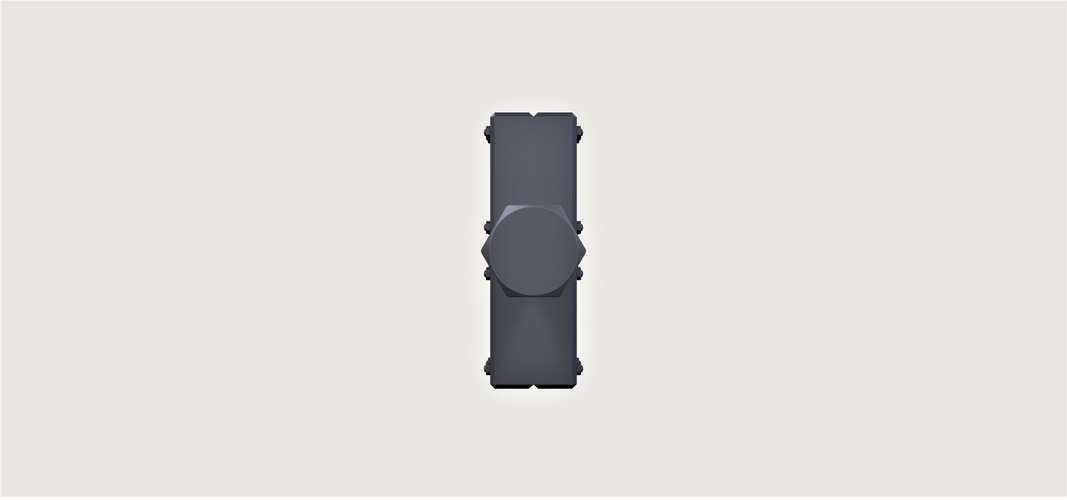

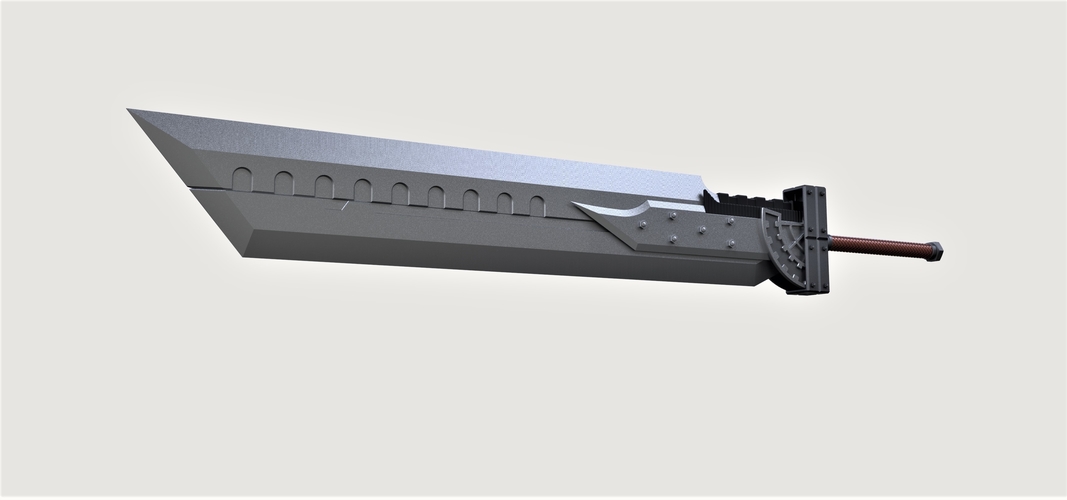

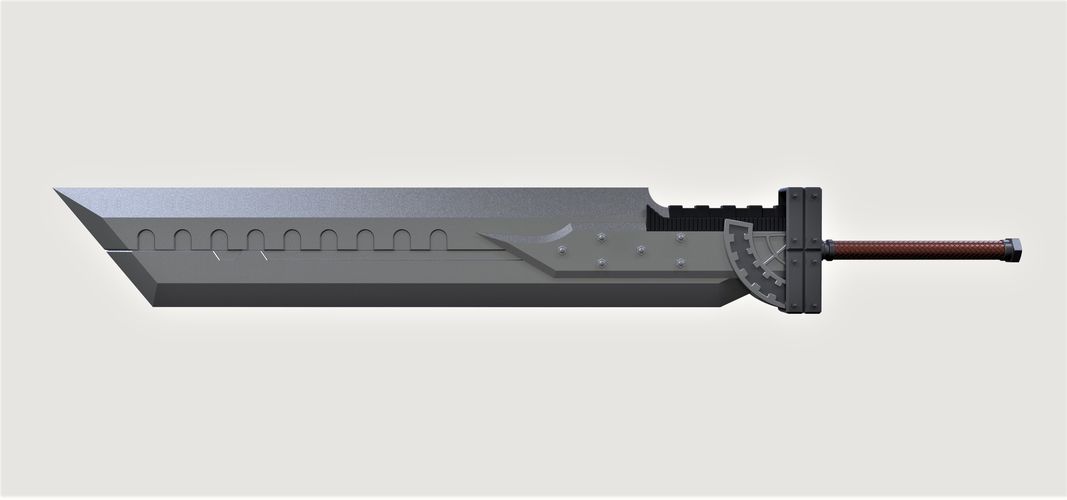

The Fusion Sword is a six-piece sword assembly wielded by Cloud Strife.

Model dimensions:

- length – 1828 mm

- height – 237 mm

- width – 86 mm

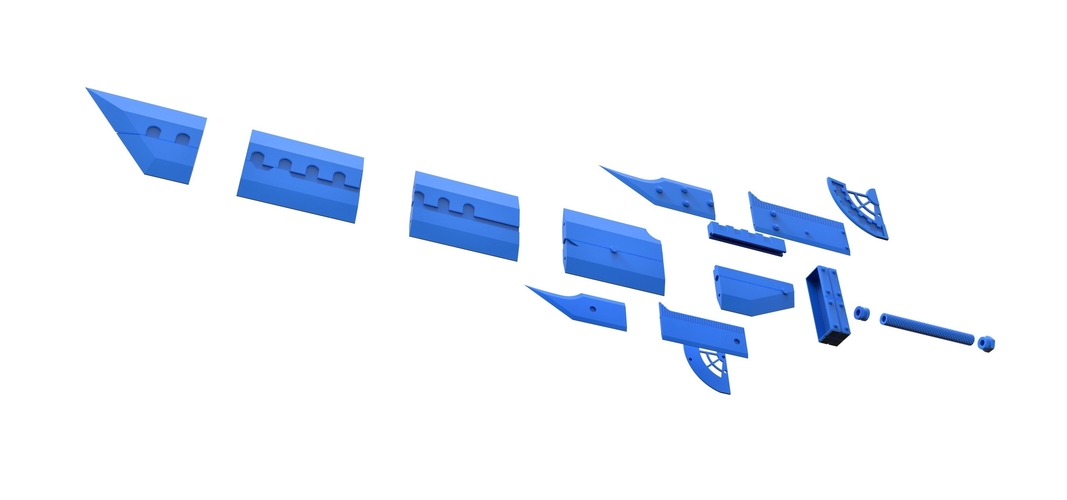

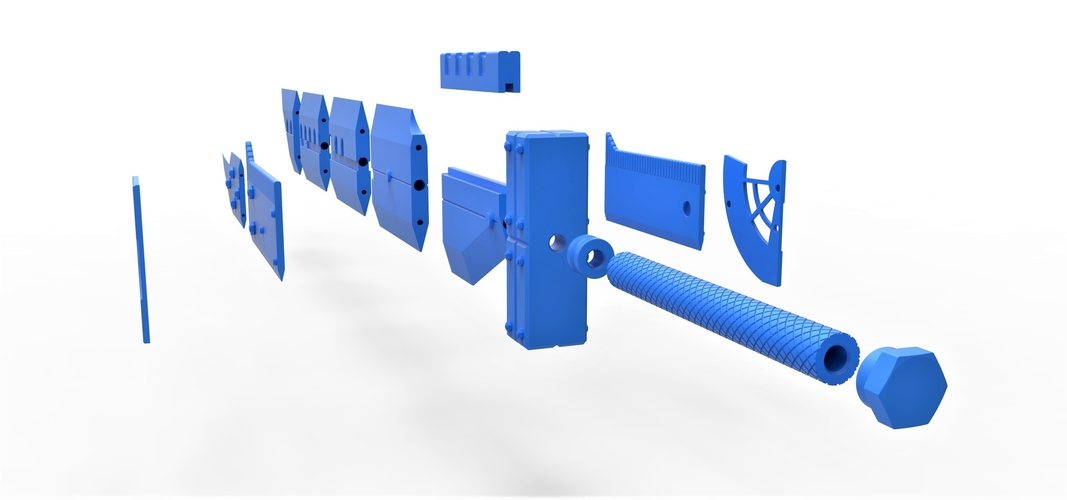

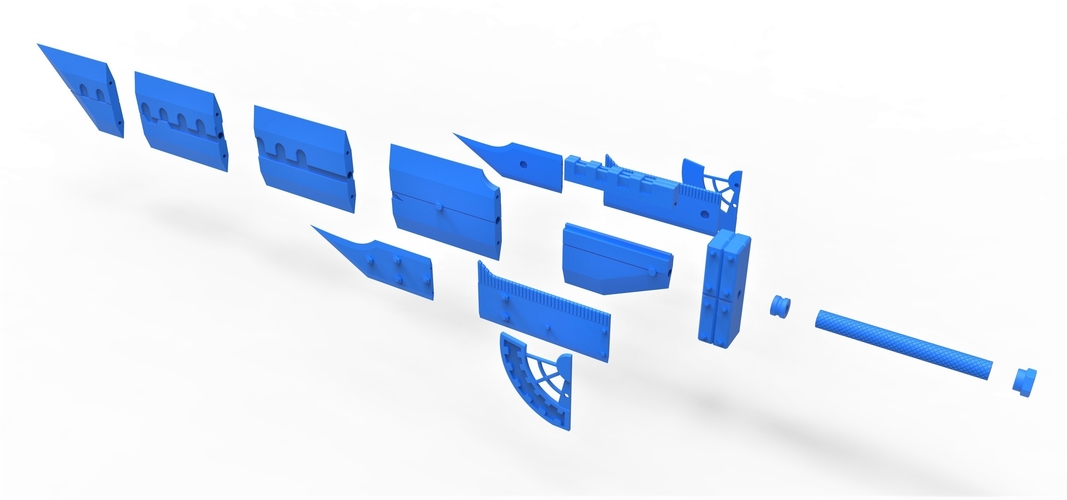

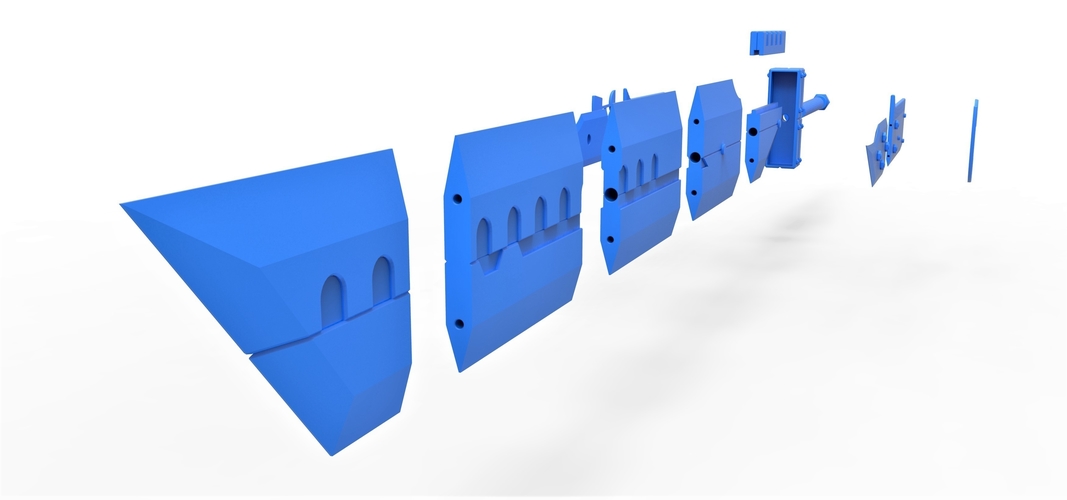

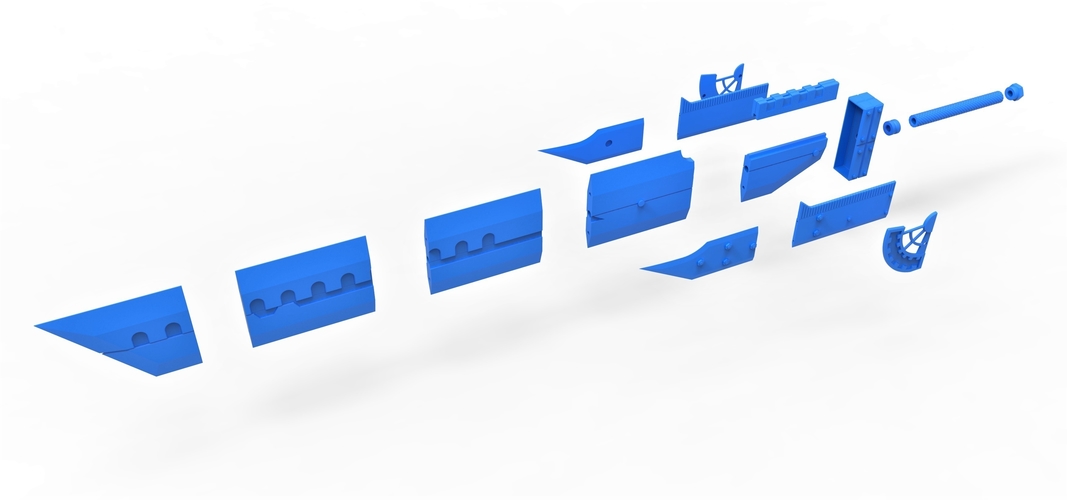

Model consists of parts: blade part 1, blade part 2, blade part 3, blade part 4, blade part 5, box, handle, hub, insert, right blade part 1, right blade part 2, left blade part 1, left blade part 2, right sector, left sector, rear cap.

During assembly, use guiding metal rods or tubes.

Rod sizes:

-         upper – d=8 mm, length – 955 mm,

-         central -  d= 16 mm, length – 1360 mm,

-         lower - d=8 mm, length – 1045 mm



Designed in Solid Works 2012, rendered in Keyshot 5.0.99.

Design Files

File Size

Blade part 1.STL
92.7 KB
Blade part 2.STL
189 KB
Blade part 3.STL
161 KB
Blade part 4.STL
332 KB
Blade part 5.STL
156 KB
Box.STL
8.61 MB
Handle.STL
23.9 MB
Hub.STL
792 KB
Insert.STL
2.95 MB
Left blade part 1.STL
2.49 MB
Left blade part 2.STL
7.06 MB
Left sector.STL
213 KB
Rear cap.STL
937 KB
Right blade part 1.STL
2.49 MB
Right blade part 2.STL
7.06 MB
Right sector.STL
211 KB
RackMultipart20190906-20921-1h276kc.zip/Sword.obj
58.1 MB
RackMultipart20190906-20921-1h276kc.zip/Sword.mtl
1.79 KB
