Alien coaster

Prints (0)

Description

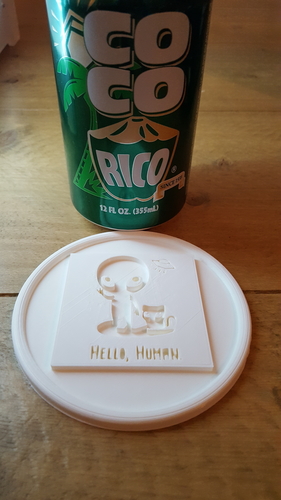

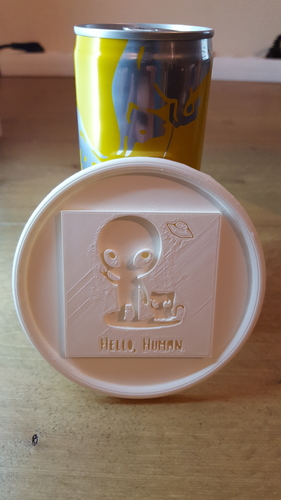

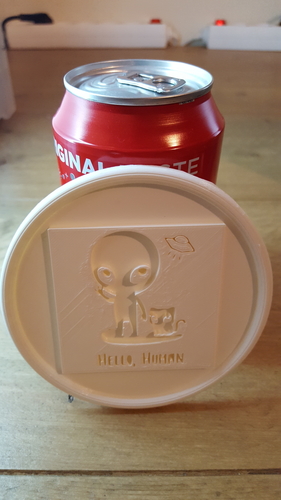

Ever wondered who else would be here with us in space? Don't be afraid to leave earth with your thoughts and explore the universe. Print out this flying soucer to place your drink.

source: https://www.teeturtle.com/products/hello-human

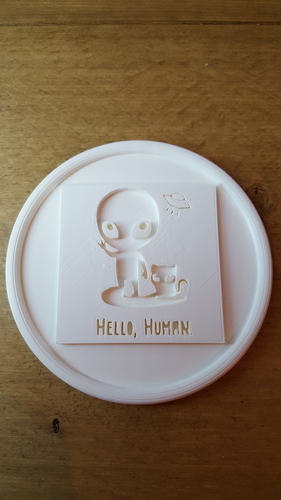

This is a standard size coaster (100 by 100 by 5 mm), to fit in my coasterholder:

https://www.thingiverse.com/thing:3130397

I have printed this alien object using 0.15mm density and a 10% infill. It requires no support. I used a 0.4mm nozzle and it's temperature was 210 degrees Celcius. My heated bed was 60 degrees Celcius. Don't worry to use your own configuration, for example a 0.2mm layer height will do just fine and, speeds up things.

Design process

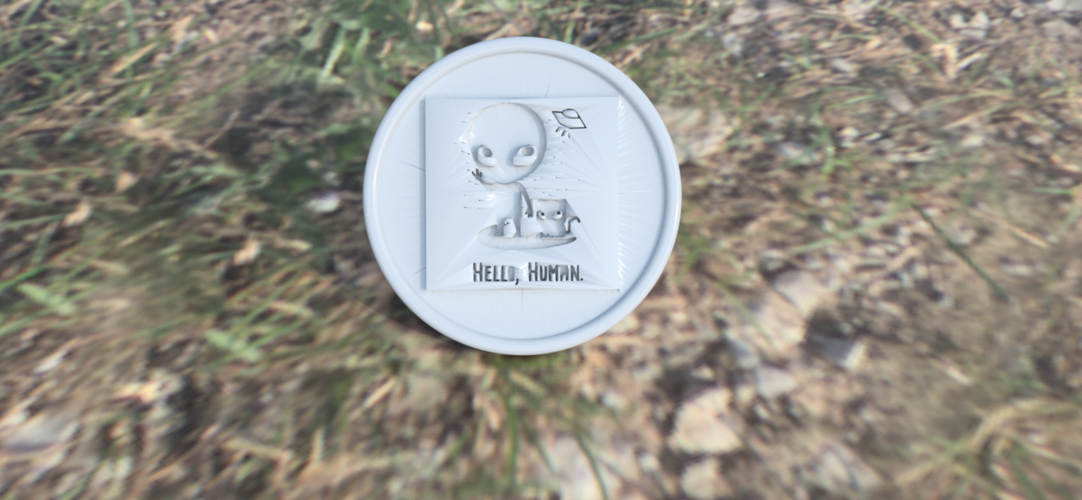

I picked a logo from my browser and have put it in svg format in inktscape. Opened the svg file in blender and made it a 3D object. In meshmixer i have repaired the file; and erased some aspects. In meshmixer i have also added a coaster. Than i have merged the coaster with the picture after scaling the picture. Saved it as a STL file and sliced it for printing. Cause the model has still some issues even after repairing it in meshmixer; i have decided to export it into Netfabb Online Service. This is an app i discovered recently after using MakePrintable. Cause MakePrintable in my opion only gives us 3 procedures of fixing an STL file and, with Netfabb Online Service the frequency of STL fix procedures is unlimited, my choice was clear. It worked well for me and i could slice the model without any problems.

If you would like to know how i design a 2D picture (google) into a 3D model. Use this link:

https://www.youtube.com/watch?v=g6cmClwLhz8 (video is under 6 min.)

2D to 3D in Blender

use this link to download blender for free: https://www.blender.org/download/

use this link to download inkscape for free: https://inkscape.org/nl/download/

Design Files

File Size

alien coaster_fixed.stl
2.33 MB
