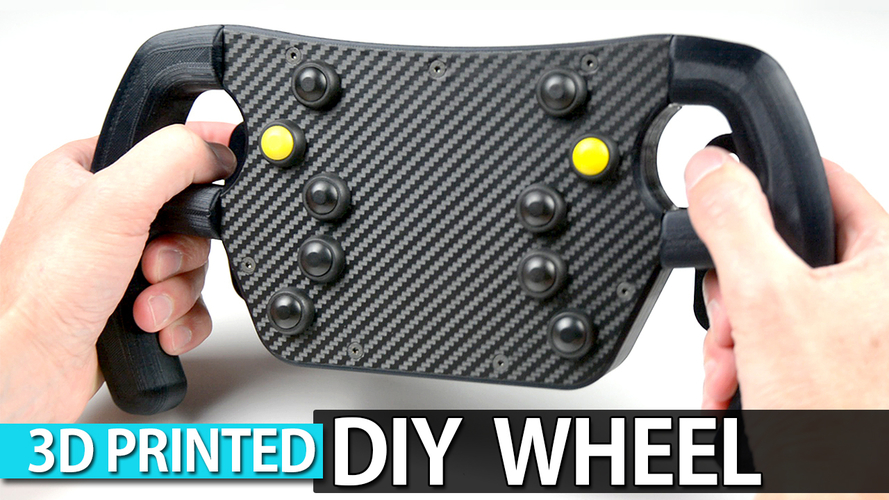

DIY 3D Printed F1 GT Wheel with Magnetic Shift Paddles

Files included - Refer to picture to see included parts

  • Base
  • Left and Right Handles
  • Top Cover for 10 buttons
  • Updated Magnetic shift paddles
  • Hub Spacer
  • Bonus 50mm F1/GT Wheel side QR adapter
  • Detailed Parts List PDF

*G29 wheel base QR in video not included.

Minimum Print Setting

  • 2-shell
  • 0.2 Layer
  • 50%+ Infill

PARTS

Joystick Encoder BG http://bit.ly/2EFocW7  or  https://ebay.to/2MOZseb

Bolts for wheel

M6x25mm Cap socket https://ebay.to/2Jc5BPU

M3-M6 Nuts https://ebay.to/2O2KRuO

M5x 50mm Cap socket https://ebay.to/2D10XUG

M3x 35 Countersunk https://ebay.to/2q8pM8V

Carbon Vinyl https://ebay.to/2Ravt1l or BG http://bit.ly/2JhDwa8

Buttons https://ebay.to/2RbreCD

Magnetic Paddle Shifters Build video Step by Step – https://youtu.be/hbHkliQDCx0

Parts per Paddle Shifter

2x M3 Cap socket screws 10mm https://goo.gl/84xvmt

5x M3 Cap socket screws 30mm eBay https://goo.gl/13T4UQ

2x Neodymium magnets eBay https://ebay.to/2Tg8QdV

1x Micro lever switch eBay https://ebay.to/2vERsFo

Wire DX https://goo.gl/jMLLa5

Wire Bulk eBay https://goo.gl/msz99e



Tools

Hot glue DX https://goo.gl/DuTU3r

Superglue DX https://goo.gl/DR7gid

Solder DX https://goo.gl/gZZjvP  BG https://goo.gl/Ni6n4P

Soldering Iron Cheap DX https://goo.gl/T3CRNq  or https://goo.gl/Ahq8e2

My Soldering Iron eBay https://goo.gl/y7Nbzx

Heat Proof Mat BG   https://goo.gl/YCuQJG

Allen keys https://ebay.to/2yWIxjF

A3 cutting Mat https://ebay.to/2OMnb2U

Utility Knife https://ebay.to/2yYbxHA

Wire Cutters  BG https://goo.gl/ja3HWb

Wire strippers https://goo.gl/4PFXny

Solder Wick BG http://bit.ly/2K9iHgz

3D Printer https://ebay.to/2x1MeUU or BG https://goo.gl/E8uS76

3D Filament http://bit.ly/2LokfDd

See the build video here:

FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE

COPYRIGHT AMSTUDIO 2018 - ALL RIGHTS RESERVED

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model.
