Bowl ellipse shape (with voronoi pattern)

Prints (0)

Description

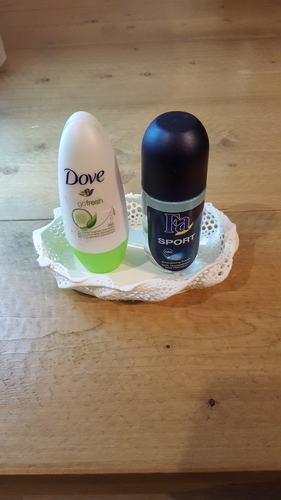

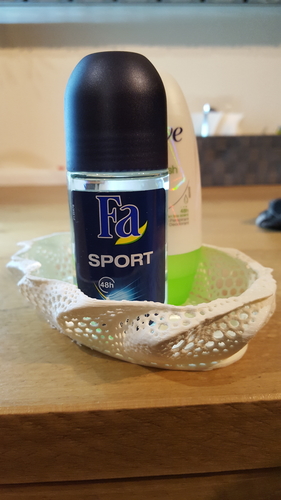

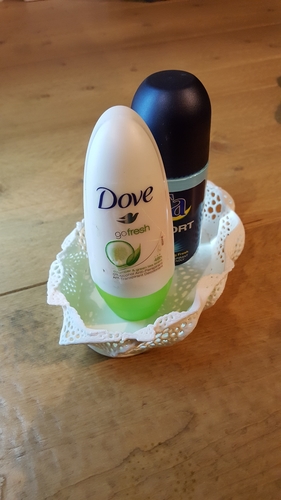

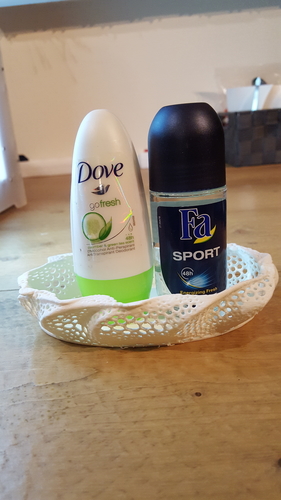

This is a bowl in the shape of a ellipse, with a voronoi pattern. The dimensions are 150 by 100 by 30mm, so it is not that big. But cause of the voronoi pattern it prints in a good 6 hour. This model will be in my toilet to put my air freshener in. It makes a nice display. Or use this bowl to put your other stuff in.

:)

I have printed this model with white Ultimaker PLA, at 0.15 mm resolution and 18% infill. I have used my 0.4mm nozzle and the extruder temperature was 210 degrees celcius. My printbed was set at 60 degrees celcius.

Design process

I used the patch environment to shape the bowl, using the loft feature. This way the model has zero density and can be used to make a voronoi (single) pattern in meshmixer. After applying the pattern in meshmixer, i have made the bottom in fusion and combined the two models together as one. This way the bottom of the bowl won't have the voronoi pattern. And that gives a better result. In 123design i have rescaled the model to 150 by 100 by 30 mm.

Greet Raimon Elctrncs

Design Files

File Size

bowl ellipse v5 fixed.stl
31.9 MB
