Water Jet Drive 64 mm

Prints (0)

Description

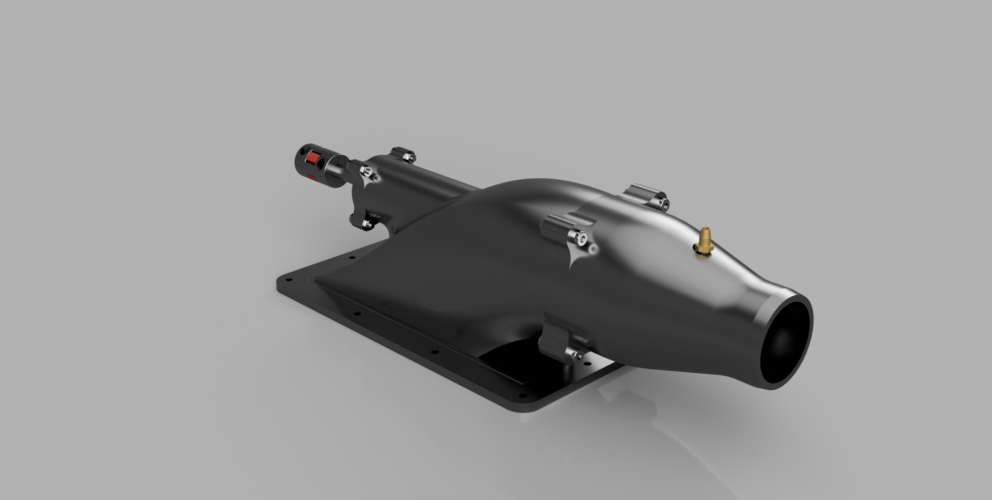

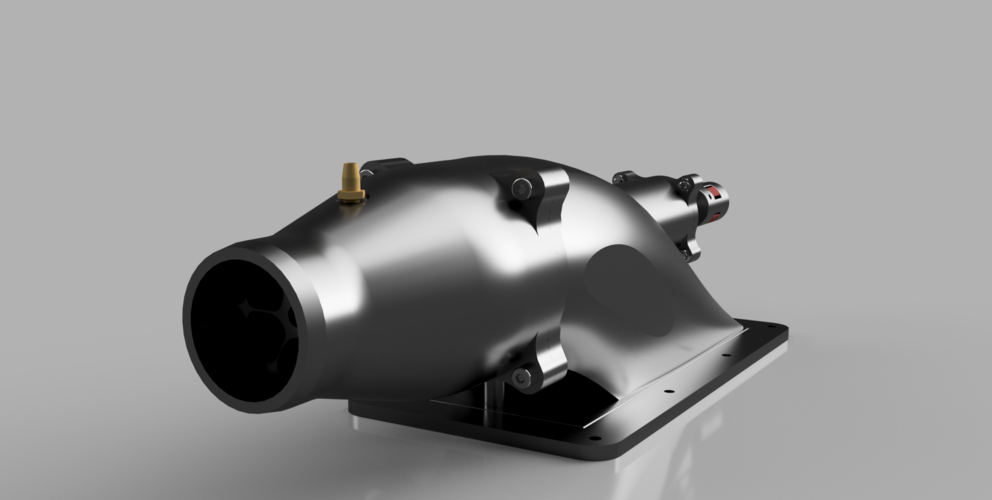

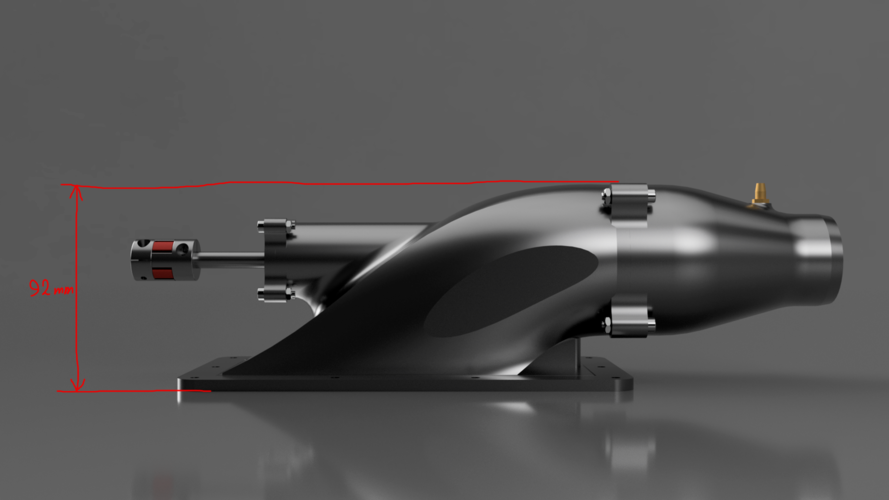

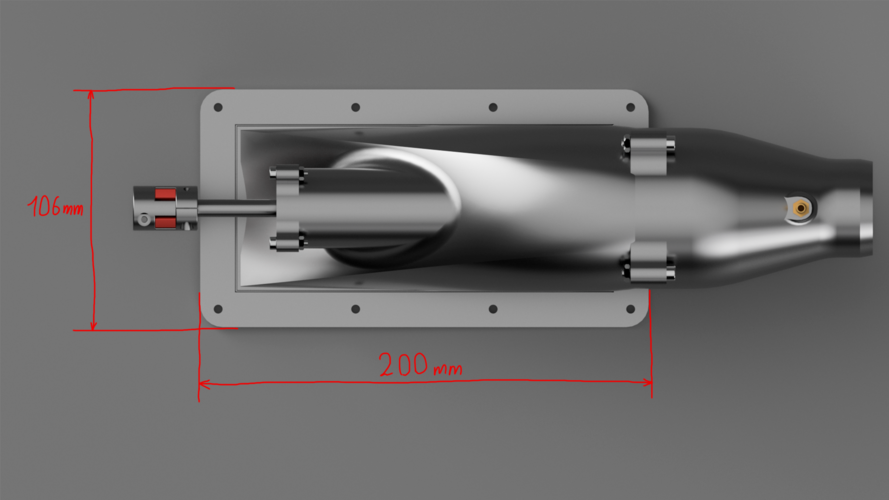

This is new Water Jet Drive 64 mm  for electric Surfboard:

https://www.youtube.com/watch?v=69YW7y_0W64

*************************************************************************************************************************************

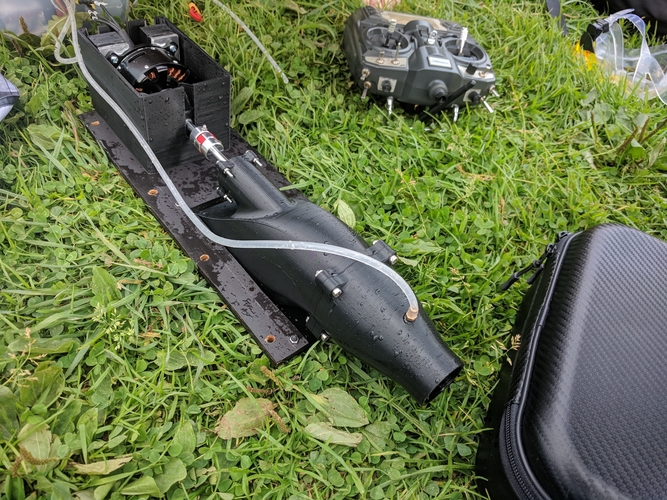

My used electronics:

https://hobbyking.com/ru_ru/turnigy-rotomax-1-20-brushless-outrunner-motor.html

https://hobbyking.com/ru_ru/hobbyking-yep-80a-hv-4-12s-brushless-speed-controller-opto.html

https://hobbyking.com/ru_ru/turnigy-battery-5000mah-4s-25c-lipo-pack-xt-90.html (two batteries 4s x 2 = 8s)

I recommend using a 300 - 450 kv motor. Do not buy my rotomax 1.20, its 280 kv at 8s (8400 rpm) was not enough. Therefore, you should have 10000-15000 rpm. Then you will rush like a rocket.

**************************************************************************************************************************************

The model is very very durable, you can’t break it with your hands, I tried to compress it in different ways, but sintering is so good at pla that it is impossible.

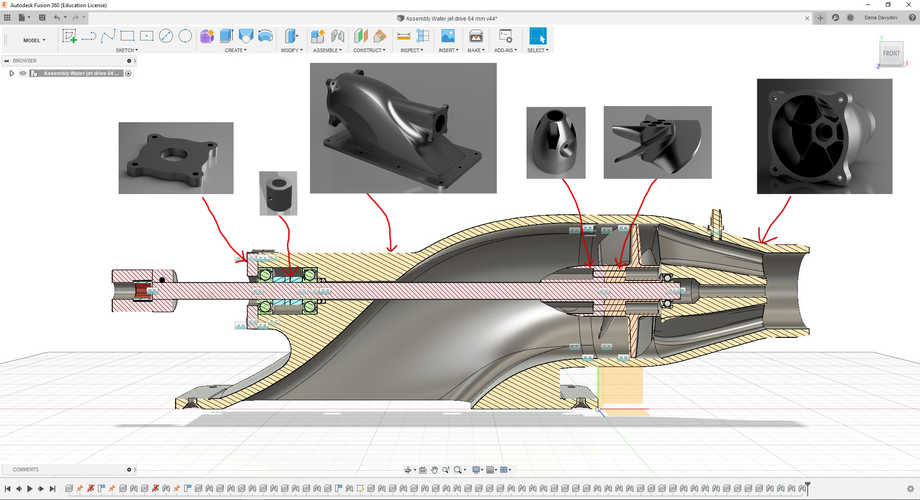

This project was created in Fusion 360 and printed with my Anycubic i3 mega (210x210x205) mm

My print settings:

- Black PLA

- 220* nozzle;

- 60* bed;

- 65 mm/s

- 100% fill

*************************************************************************************************************************************

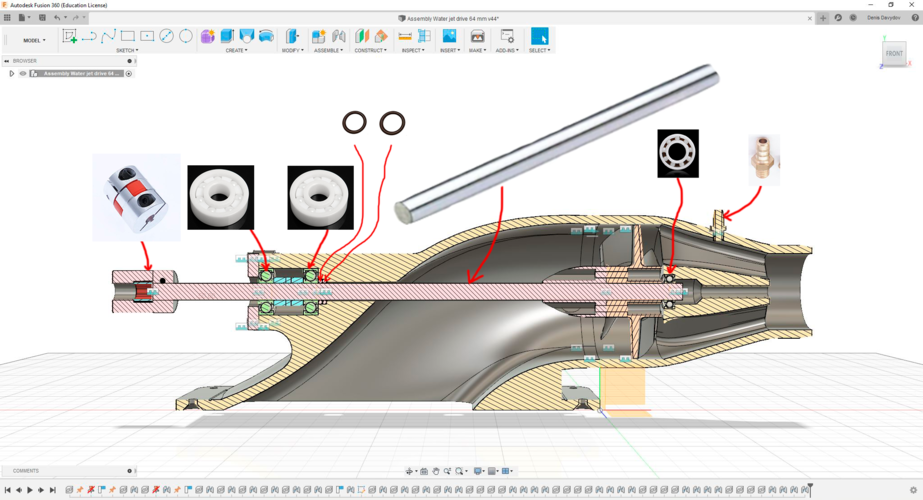

In this table you can view a list of parts ( Shaft, bearings, screws, nuts....) that will be needed for production https://docs.google.com/spread...

*************************************************************************************************************************************

If you have questions, you can write to my mail:    [email protected]

If you want to buy cheaper, then I can sell you for $ 26, because the site takes a percentage. Write to the mail and I'll drop the files

**************************************************************************************************************************************

Design Files

File Size

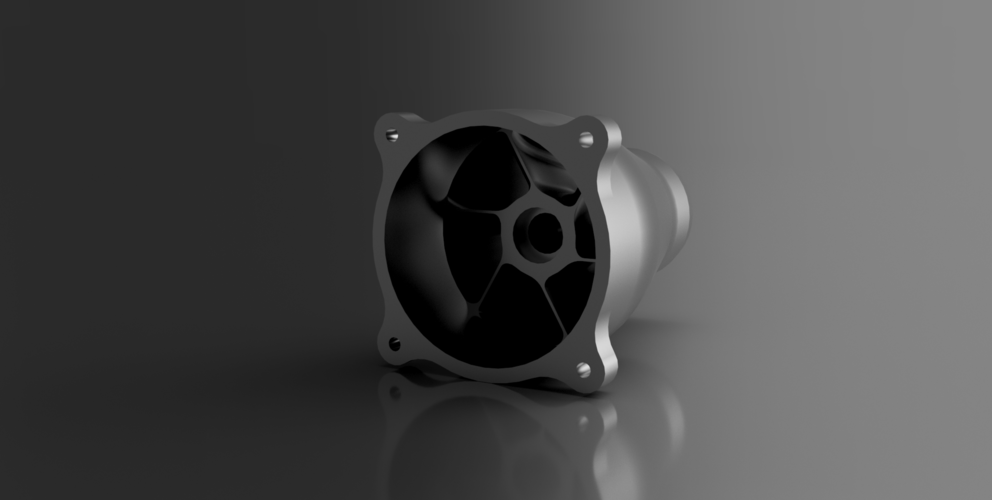

Steering nozzle v25.stl
2.64 MB

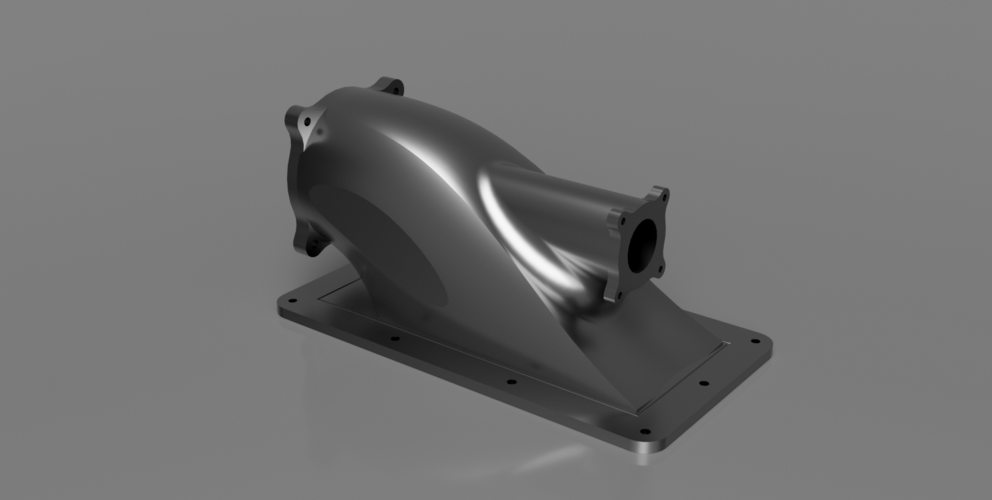

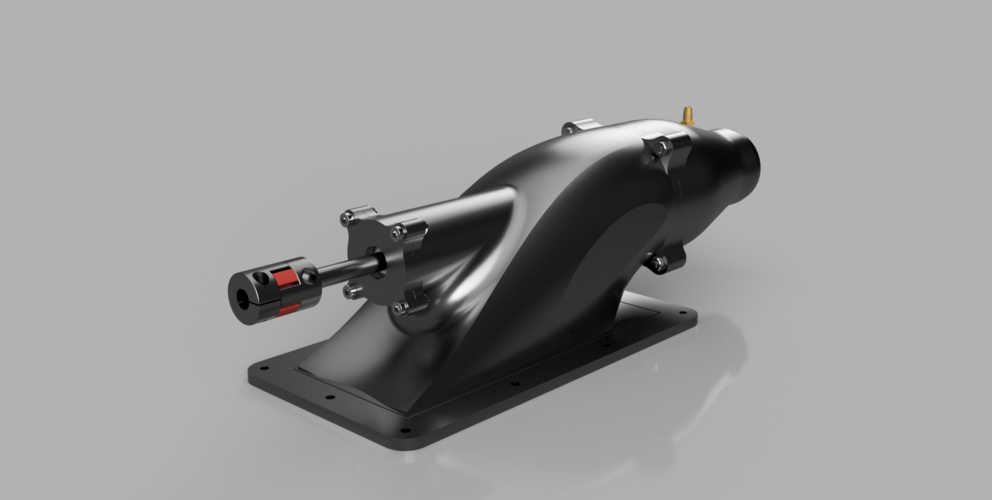

Water jet drive 64 mm v44.stl
4.09 MB

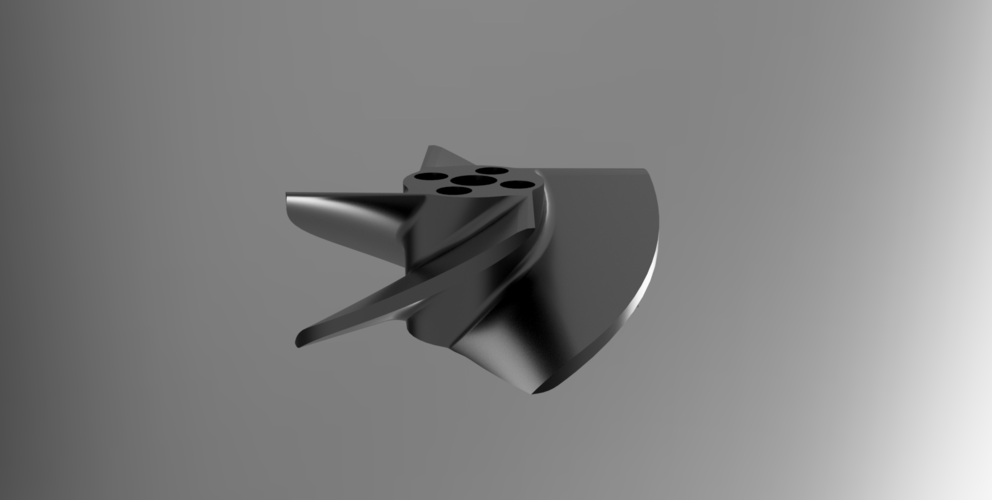

Impeller 64 mm big step v5.stl
2.85 MB

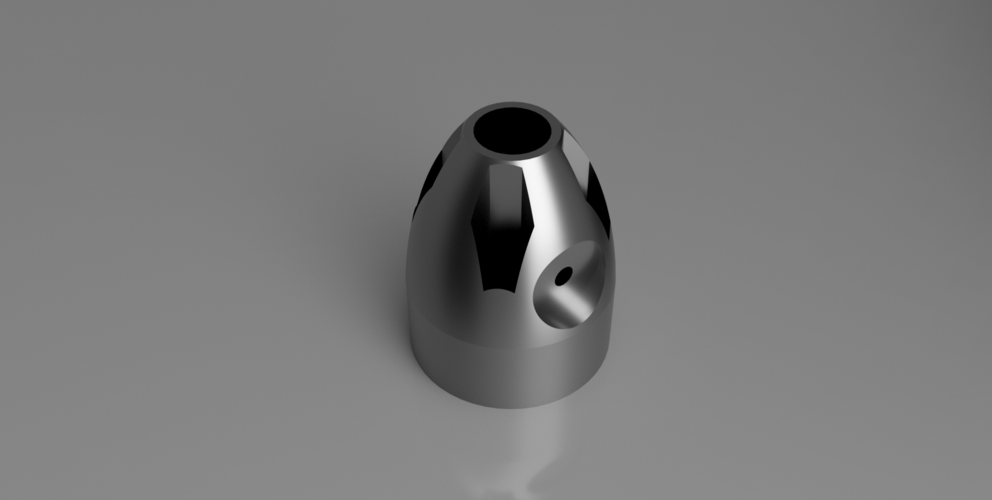

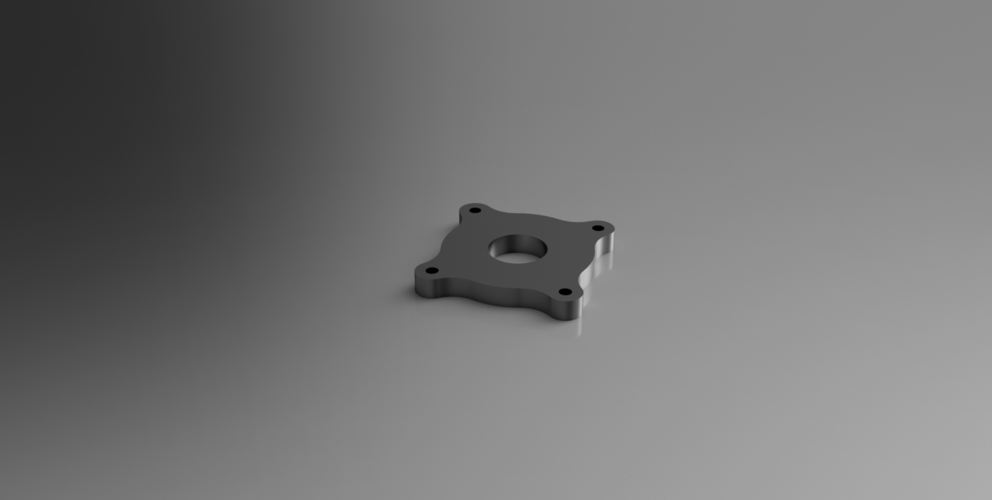

Bearing cap v2.stl
159 KB
Impeller mount v5.stl
958 KB

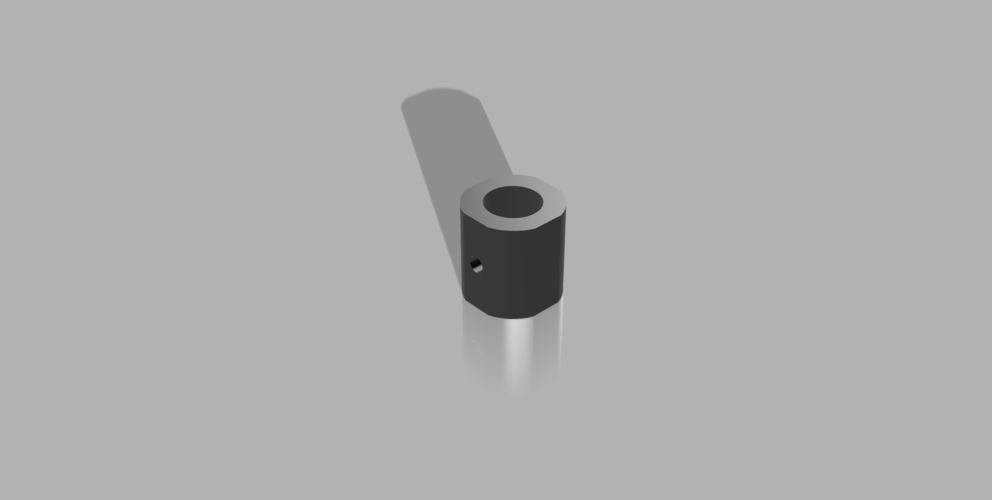

Spacer length 14 mm v3.stl
154 KB
