IOT Vending-Machine with Twitter-Acocunt

Prints (0)

Description

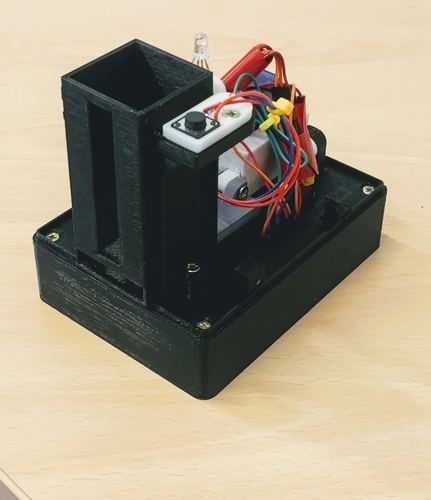

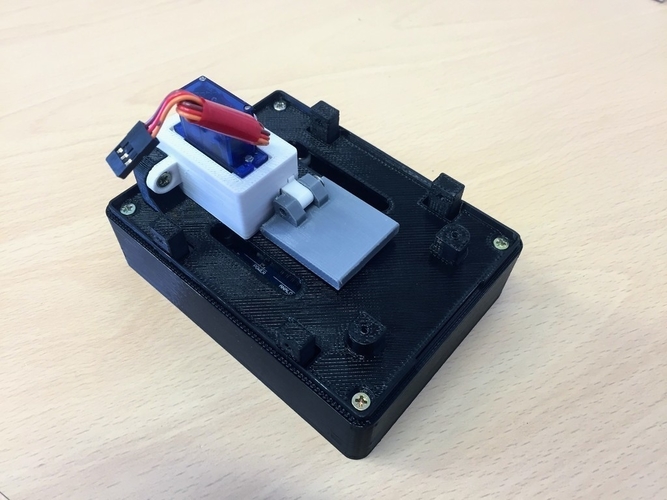

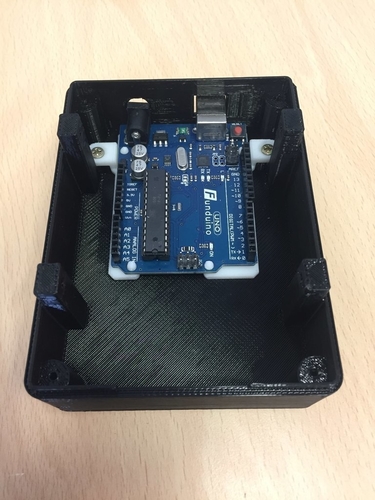

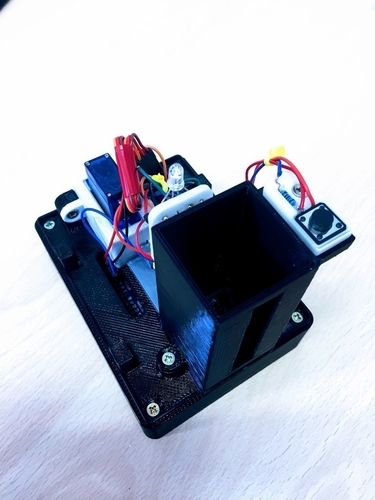

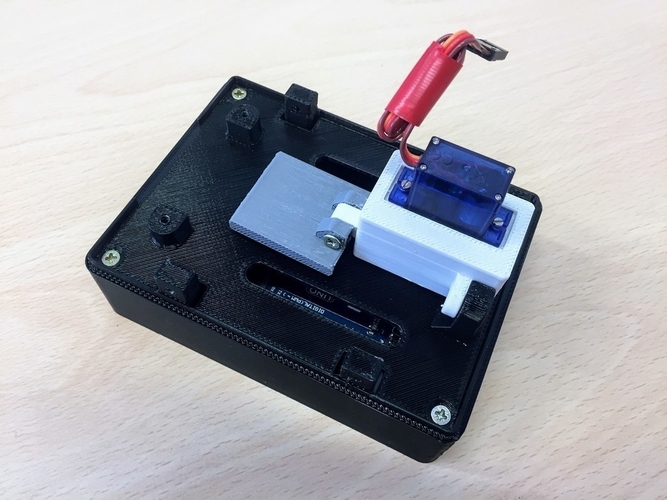

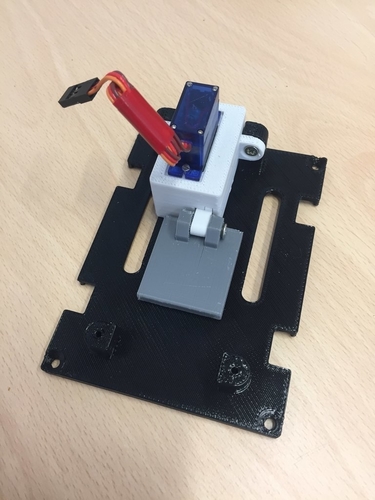

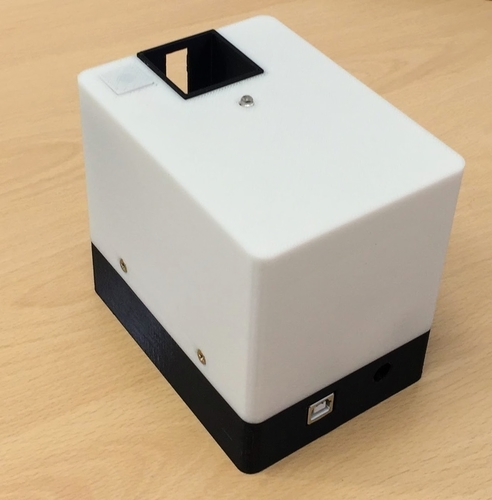

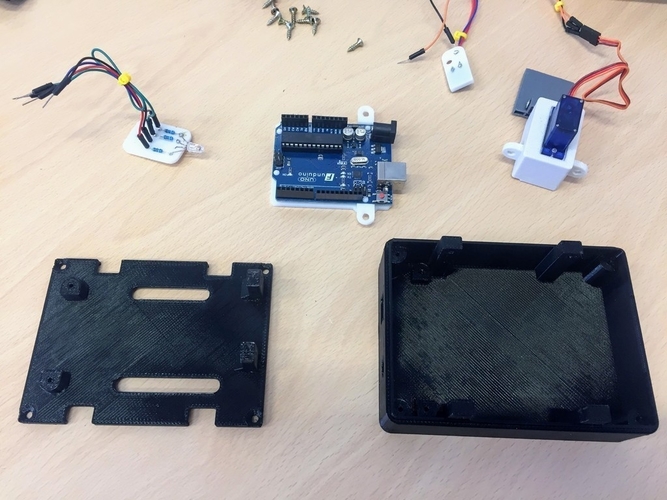

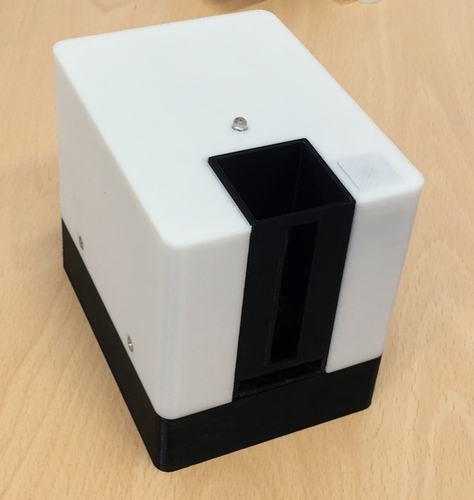

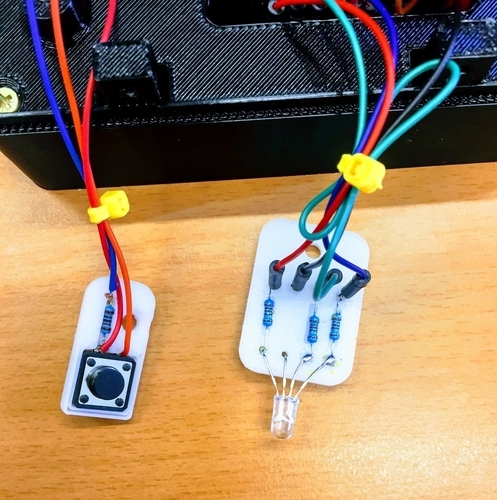

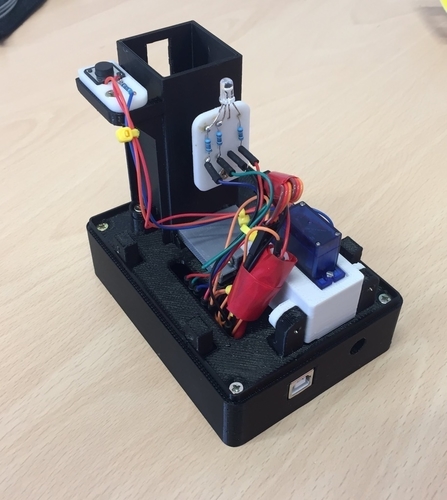

Summary This is an internet connected candy vending machine. It uses an Arduino Uno, a servo, a led lamp and a button. The Code is running in a node js environment and firebase acts as an iot hub. Every time the button is pushed a candy is pushed out, the light blinks and a tweet is sent. The vending machine can be controlled over internet! Code can be found here:https://github.com/jw1401/vending-machine Video:https://youtu.be/PwSugGfmX3U Enjoy :-) Print Settings Printer Brand: Up Printer: Up Plus Supports: Yes Resolution: 0,3 mm Infill: 20% How I Designed This Fusin 360 Designed with Fusion 360

Design Files

File Size

Halterung.stl
60 KB
Abdeckung.stl
40.7 KB
Rack.stl
23.7 KB
Spur_Gear_10_teeth.stl
74.5 KB
AbdeckungServo.stl
22.3 KB
Speicher.stl
32.5 KB
Träger.stl
78.6 KB
CircuitBoard.stl
41.3 KB
Aufnahme.stl
48.8 KB
Unterteil_1.stl
83.7 KB
Tasterträger.stl
29.6 KB
Auswerfer.stl
15.3 KB
