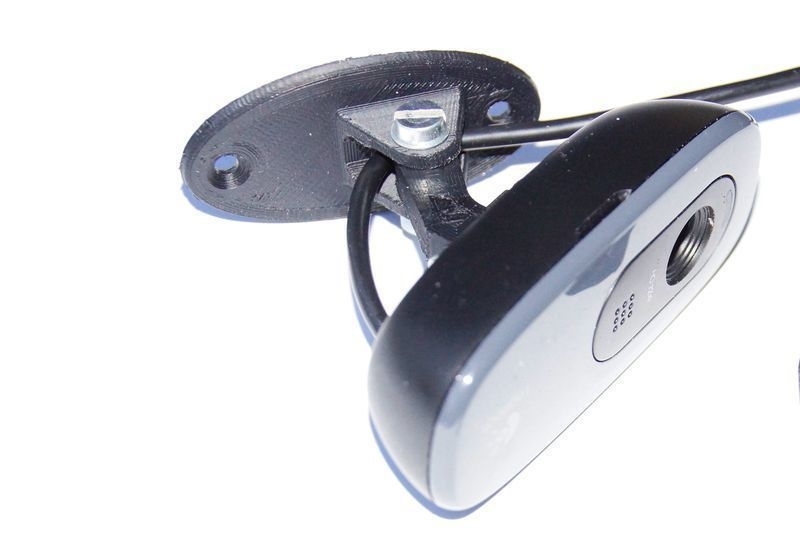

Mount Logitech C270

Description

Summary Mount for Logitech C270. Baseplate for fixing at e.g. printer housing - adjustable bracket. Remove the original clamp and replace with the bracket by using a M3x20 screw. Connect to the baseplate with M4x15 screw. I used ASA material. Have also a look to my Lens adapter for the C270. Print Settings Printer: GermanRepRap x 350 Rafts: Doesn't Matter Supports: Yes Resolution: 0,2 Notes: Support needed inside the vertical holes

Design Files

File Size

Grundplatte_Webcam-Halter2.stl
1.43 MB
Halter_Cam-2.stl
135 KB
