Destiny 2 Merciless

Prints (0)

Description

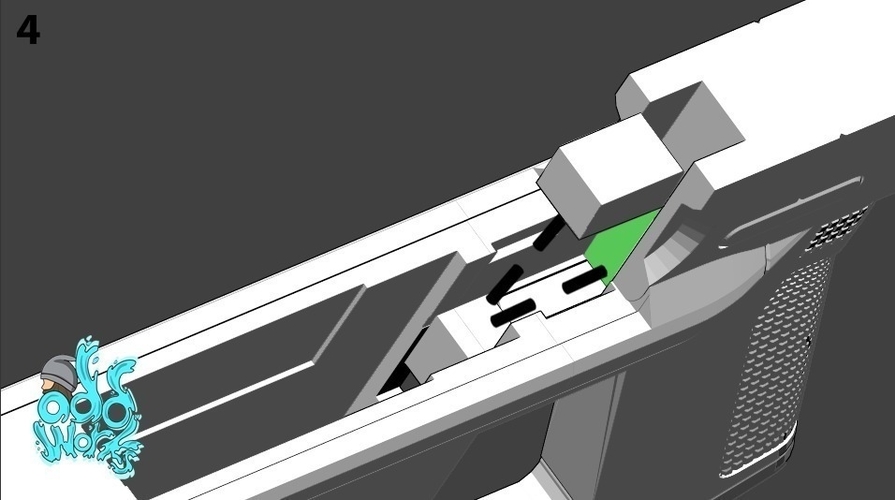

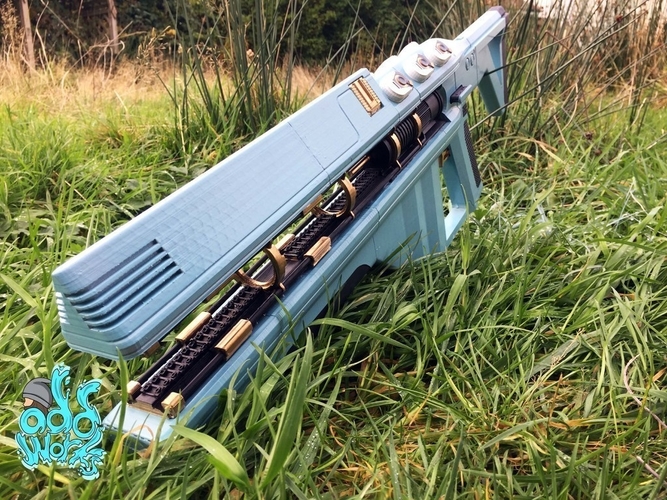

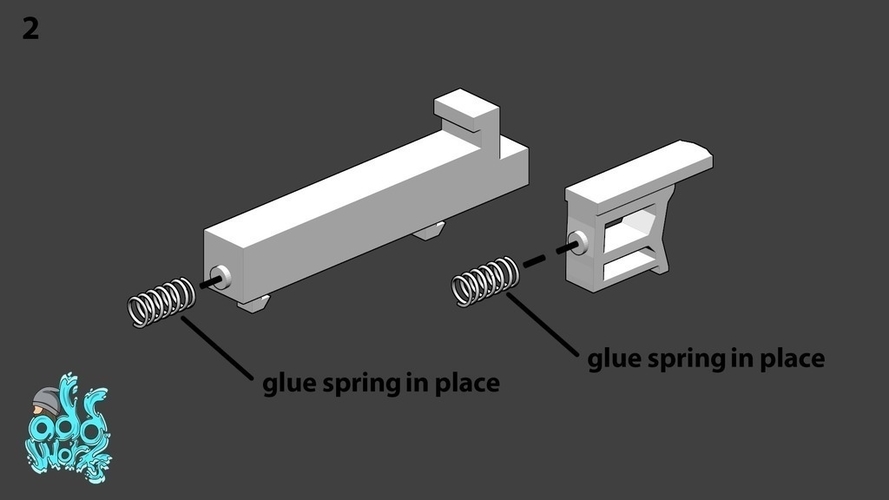

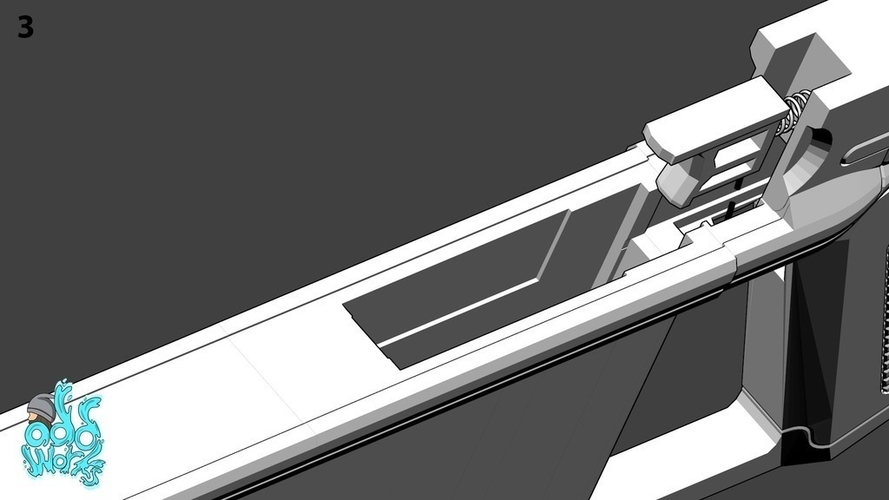

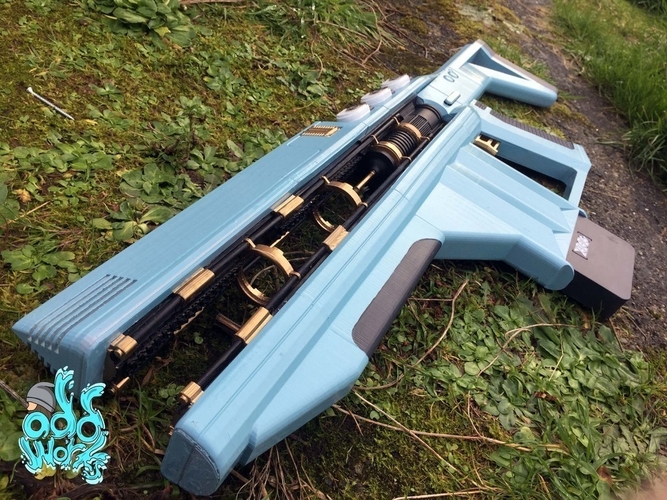

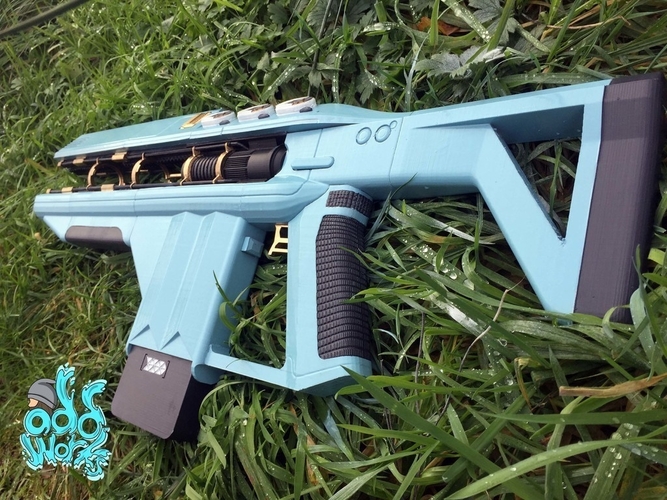

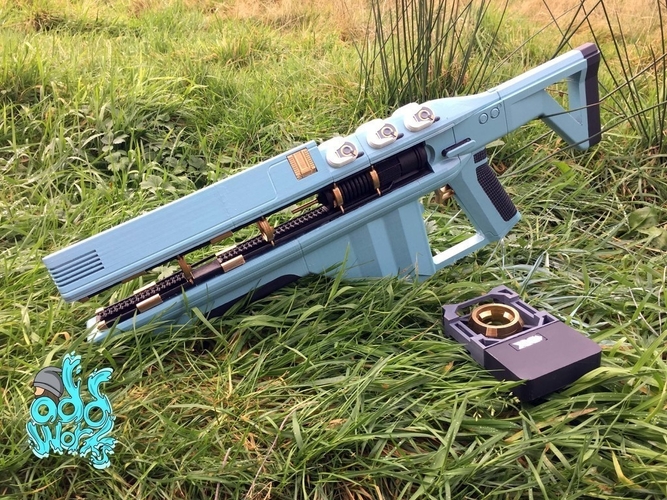

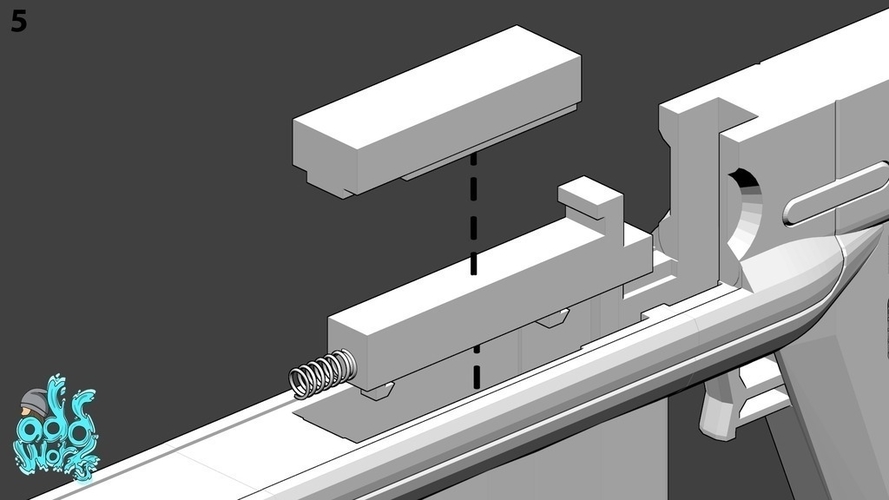

Summary after a longer than expected build process thanks to part not fitting and waiting on paint to arrive the merciless in finally finished hehe the model has a springloaded trigger as well as a mag release system. I hope you guys like the model :) Warning!!!!!!! this is a complex model and will need some skill in assembling especially the core parts I would suggest test fitting every part before glueing anything together :) update!! an awesome has asked me for a version of the core parts without the rods in them so you guys can make his own rods for the model these are the optional parts :) to build the model you are going to need some springs, these are used for the trigger and magazine release button function and will need to glued in place as shown, here is a link to the springs I used https://www.amazon.co.uk/gp/product/B004TRSKAM/ref=s9u_simh_gw_i1?ie=UTF8&fpl=fresh&pd_rd_i=B004TRSKAM&pd_rd_r=c0860a8b-ade7-11e7-8349-210e0959bc42&pd_rd_w=ozGCB&pd_rd_wg=BTb84&pf_rd_m=A3P5ROKL5A1OLE&pf_rd_s=&pf_rd_r=V9BC56QFJGNNQHPHVE3E&pf_rd_t=36701&pf_rd_p=187bec3b-0822-4044-bbe9-441718232b3f&pf_rd_i=desktop want to see what I am working on next? have a look at my facebook page :P https://www.facebook.com/OddworksDesign if you like this awesomeness and want to support the creation of more awesomeness check out my Patreon :P https://www.patreon.com/OddWorks

Design Files

File Size

frame_back_pad.stl
49.7 KB
mag_1_v2_fixed.stl
144 KB
core_bottom_4_Optional_no_rods.stl
386 KB
trigger.stl
73.2 KB
core_top_2.stl
221 KB
vents_R_X3.stl
118 KB
top_frame_2.stl
60.5 KB
top_frame_1.stl
114 KB
core_ring_X2.stl
172 KB
pins_optional.stl
6.14 KB
low_frame_1.stl
68.7 KB
frame_mag.stl
122 KB
mag_button.stl
22.2 KB
mag_2.stl
56.3 KB
core_bottom_3_Optional_no_rods.stl
402 KB
core_top_3_Optional_no_rods.stl
381 KB
core_top_4_Optional_no_rods.stl
290 KB
core_top_1.stl
540 KB
handel_2.stl
641 KB
core_2.stl
793 KB
core_bottom_3.stl
535 KB
trigger_plate.stl
6.33 KB
core_top_4.stl
483 KB
core_top_3.stl
517 KB
core_bottom_4.stl
484 KB
site_R.stl
46.2 KB
handel_1.stl
395 KB
core_1.stl
315 KB
core_bottom_1.stl
558 KB
site_L.stl
46.2 KB
core_pipe_X4.stl
12.4 KB
core_bottom_2.stl
236 KB
top_frame_4.stl
110 KB
vents_L_X3.stl
117 KB
top_frame_3.stl
58.8 KB
mag_plate.stl
17.7 KB
frame_back.stl
79.4 KB
low_frame_2.stl
81.2 KB
