Description

It's time for a siesta!

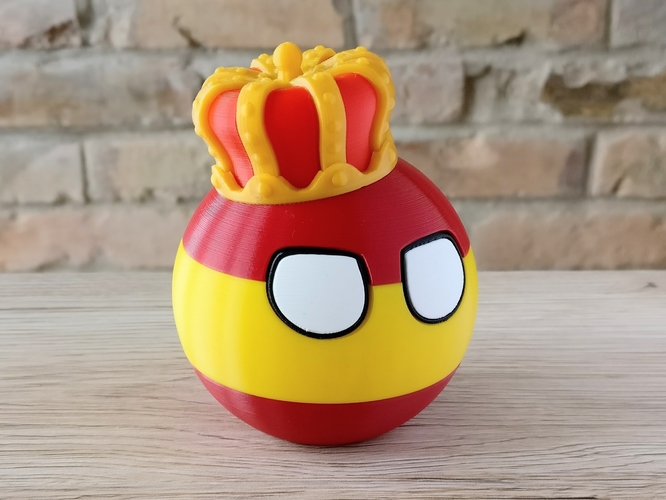

But not for me! I keep working on more countryball models! Spainball is the next one in my countryball series. My girlfriend is studying in Cordóba now so I made this figure for her as a gift. This little guy got a moody look and the crown from the Spanish flag, a bit oversized for his head. Maybe that's why the moody look. :)

EDIT (2017.10.08.): Updated the bottom part. The connections were a bit messed up.

EDIT (2017.10.12.): Sorry everyone! At first I accidentally uploaded the clips of the Betyár countryball instead. I fixed it now.

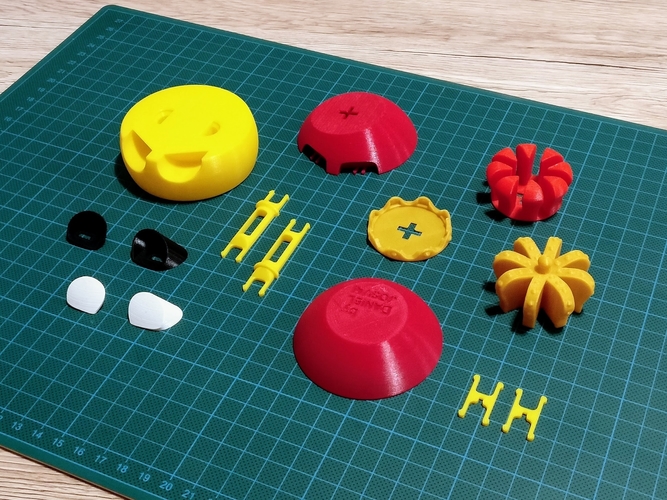

Notes: This model is designed to be printed in multiple parts, WITHOUT support at 0.1-0.15 mm layer height with some infill. Since the eyes are separate pieces you can print the tree layers in the colors of your country's flag. For the best accuracy print it slow! I've used 20 mm/s for the outer walls. Print two of the clips and crown clips.

Assebbly The model is designd to be assembled without glue only with its snap-fit joints. Check out the video! ;) https://youtu.be/osLqe4-cGMw

Note that the tolerances were designed to fit the accuracy of my Ultimaker 2. You will need a similarly accurate printer and fine settings for the snap-fit joints to work properly, otherwise you might have to readjust the size of the clips.

Design Files

File Size

Spainball_bottom.stl
958 KB
Spainball_clip.stl
51.3 KB
Spainball_middle.stl
1.03 MB
Spainball_crown_base.stl
3.04 MB
Spainball_top.stl
970 KB
Spainball_right_eye.stl
581 KB
Spainball_left_contour.stl
1.07 MB
Spainball_crown_clip.stl
53.8 KB
Spainball_crown_inner_cushion.stl
1.67 MB
Spainball_crown_top.stl
3.8 MB
Spainball_left_eye.stl
581 KB
Spainball_right_contour.stl
1.07 MB
Spainball_round_top.stl
1.36 MB
