KTM Ascender RC tri copter

Prints (0)

Description

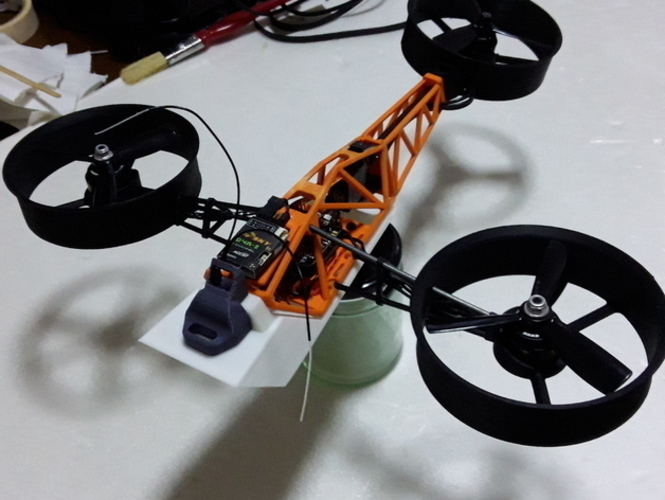

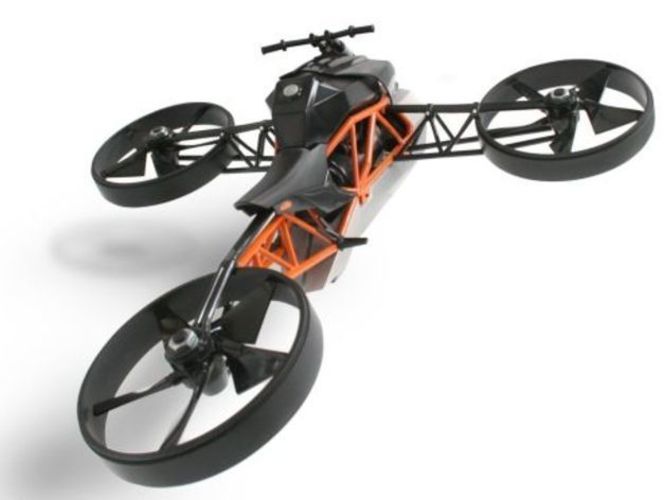

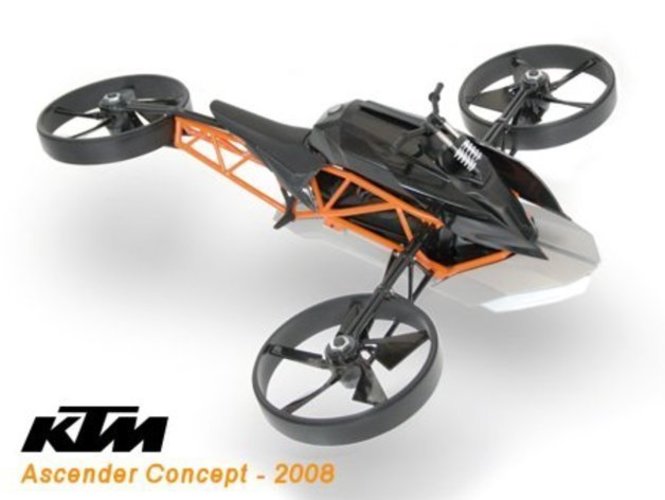

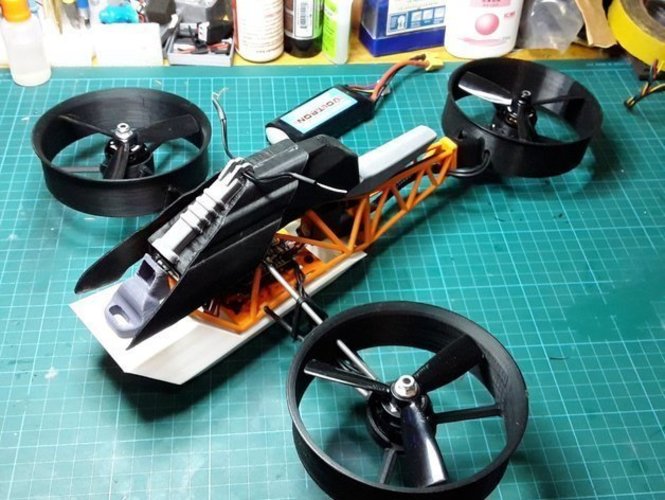

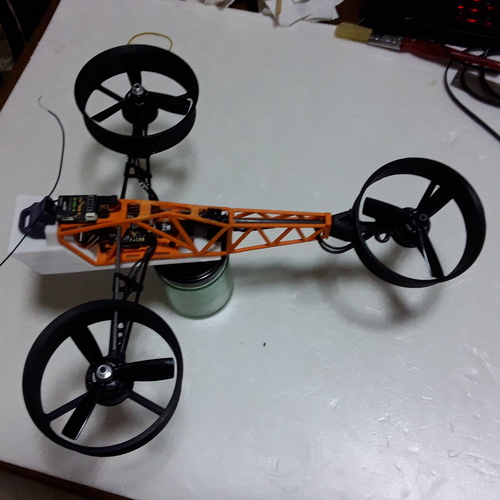

Inspired by some images from 2008 i developed a working  RC tricopter that can be 3D printed.

Enjoy

The outrigger struts ar 3mm OD solid carbon fiber rod and the rear yaw drive shaft it carbon tube 5 mm OD / 3mm ID

The equipment ive used can be found in the following links These are affiliate links that cost you nothing but give me points towards my next project, Much appreciatted if you choose to use the links.

FC =http://www.banggood.com/Afro-Naze32-10DOF-Rev5-MPU6050-Flight-controller-p-1007113.html?X9120314803172015043 Any 6 or 10 dof FC with a 30.5mm hole centre patern will fit ( FLip 32) PDB = http://www.banggood.com/CC3D-NAZE32-F3-Power-Distribution-Board-PDB-With-Filter-BEC-Output-5V-12V-3A-for-QAV250-p-1023543.html?X9120314803172015043

Motor = http://www.banggood.com/Racerstar-Racing-Edition-2205-BR2205-2300KV-2-4S-Brushless-Motor-CWCCW-Black-For-QAV250-ZMR250-260-p-1086693.html?X9120314803172015043

& ESC's = http://www.banggood.com/BL20A-OneShot-125-OPTO-2-4s-Mini-Brushless-20A-BLHeli-ESC-For-FPV-QAV180-250-p-1023318.html?X9120314803172015043

Props = http://www.banggood.com/2-Pairs-DAL-Pro-5045-3-Blade-CWCCW-Propeller-for-FPV-Racing-Muliticopter-p-1056430.html?X9120314803172015043 ( I trimmed the props down to fit the ducts )

or these which are a perfect fit

http://www.banggood.com/10-Pai...

Servo is a Corona met gear servo https://hobbyking.com/en_us/corona-919mg-digital-metal-gear-servo-1-7kg-0-06sec-12g.html

RX = Frsky Dr4II http://www.banggood.com/FrSky-D4RII-24G-4CH-ACCST-Telemetry-Receiver-p-929069.html?X9120314803172015043

Design Files

File Size

RackMultipart20170130-1550-ph658c.zip/PM_KTM_Servo_Drive_boss_Rev_1.stl
156 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_FC_-PDB_base_Rev_1a.stl
403 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_2_part_Battery_case-_front.stl
140 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_2_part_Battery_case_-rear.stl
132 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Battery_compartment_Rev_1.stl
131 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_end_frame_Rev_1.stl
75.3 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Fairing_left_Rev_1.stl
350 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Fork_base_Rev_1.stl
823 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Fork_tank_front_Rev_1.stl
704 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Front_Cross_beam_Rev_1.stl
339 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Grill_Rev1.stl
104 KB

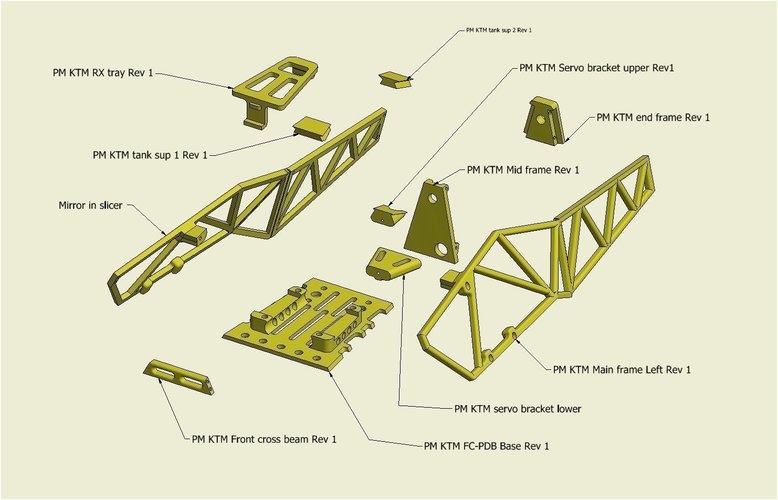

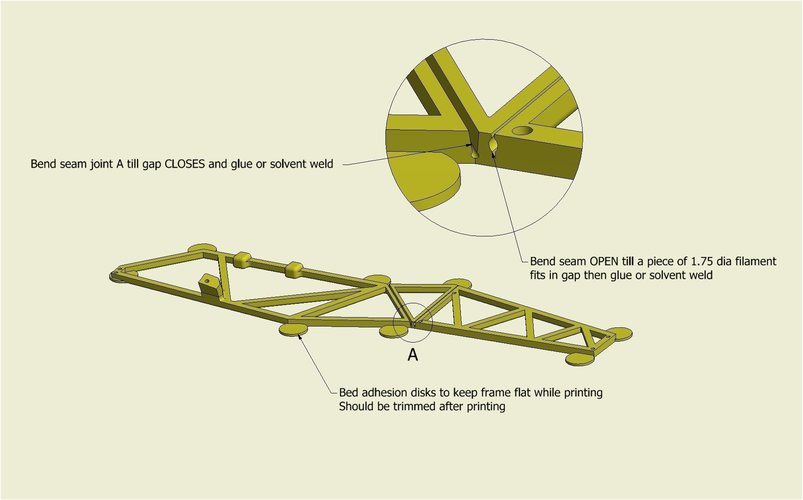

RackMultipart20170130-1550-ph658c.zip/PM_KTM_Main_frame_Left_Rev_1.stl
816 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Mid_frame_Rev_1.stl
397 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Motor_base_rear_Rev_1.stl
1.65 MB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Motor_base_Rev_1.stl
750 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_RX_tray_Rev_1.stl
114 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Seat_Rev_1.stl
498 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_servo_bracket_lower_Rev1.stl
150 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Servo_bracket_upper_Rev_1.stl
425 KB

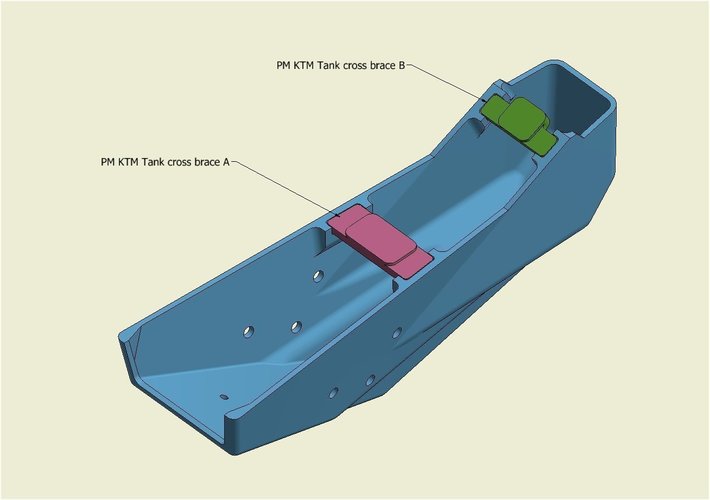

RackMultipart20170130-1550-ph658c.zip/PM_KTM_Tank_cross_brace_A.stl
29.6 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Tank_cross_brace_B.stl
44.8 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Tank_Rev_1.stl
886 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Tank_sup_1_Rev_1.stl
1.84 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Tank_sup_2_Rev_1.stl
1.06 KB
RackMultipart20170130-1550-ph658c.zip/PM_KTM_Tri_truss_stabiliser_Rev_1.stl
204 KB
