Clip on water bottle tote for the hippies...

Prints (0)

Description

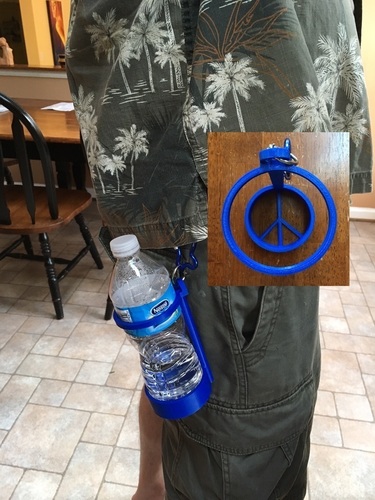

Summary This is the same water bottle tote that attaches to your belt loop except the base support for the bottle forms the "peace" sign (or a chicken foot if you happen to just love chickens). I modified the latest version of the base file. It prints in two parts. The fit is snug so simply rub both connecting pieces with acetone (nail polish remover). Once assembled, I usually rub a bit more acetone on the top and bottom of the connections to provide a stronger bond. Add a ring from a key ring and a simple carabiner so you can hang from your belt loop. NOTE: Not all water bottles are created equally. I found that the bottles from Costco (Kirkland brand) are slightly larger at the base and do not slide in easily. The inner diameter of the tote is 67mm (~2.64 inches). You may want to scale the stl file up a percent or two to make it more universal. Print Settings Printer: FlashForge Creator Pro Resolution: .2 Infill: 20-25% Notes: The base requires no supports. The top portion will print fine without supports but prints a bit better if you add a support or two for the arch where the ring attaches. Print the two parts. Wipe the inside opening on the top portion with acetone, dip the top of the rod for the lower portion in acetone and press together. Wipe additional acetone on top of and below the two pieces and hold until set. Run ring through the hoop and connect the carabiner clip. Attach top belt and walk around town with hands free water bottles. Peace out! :)

Design Files

File Size

Bottle_holder_base_peace_2.0.stl
449 KB
Bottle_holder_top_2.0.stl
352 KB
