Large scale Divers watch desk clock

Description

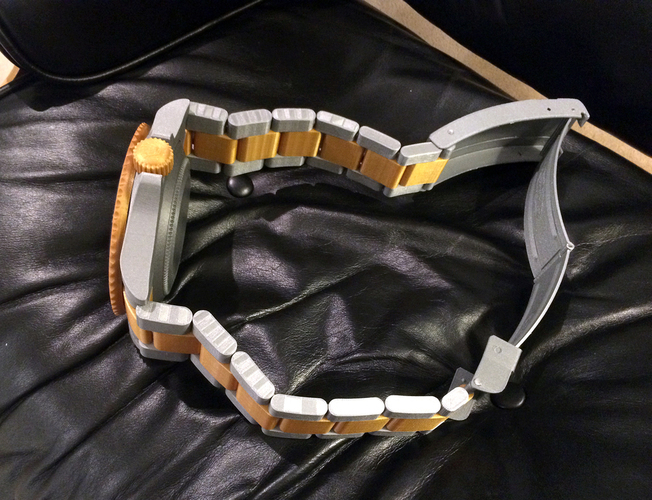

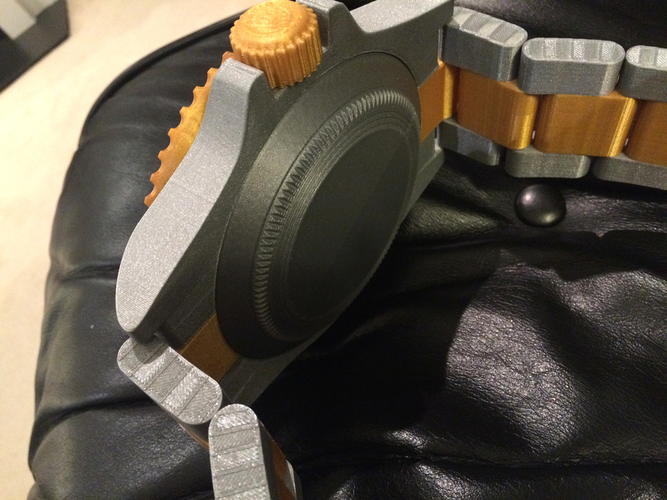

SummaryIf you ever wanted a really massive divers watch desk clock - your dreams have been answered! However, this little project isn't for the faint hearted! 131 individual parts (or thereabouts). 30 hours printing time - approx @ 0.2mm (0.1 recommended). 50 metres of filament @ 3mm dia. 400g weight (approx) This project will require model making skills and lots of patients! Ideally, all parts should be printed at 0.1 or higher if possible and some fine tuning will be required to make parts fit. Printed on the MB Rep 2 and Ultimaker 2 Printed with Faberdashery Bling Bling Gold, Robot Silver and Classic Black PLA. Fully detailed printing spec and assembly instructions included. UPDATE: 210115 I've had a couple of requests for the face to be printable flat on the bed. You won't get the maximum resolution in that orientation but i've added a new .stl to the list: Face_dial_MB flat.stl UPDATE: 250115 I've spilt the 'Back thread' file into two individual files: Back_thread_2_v2.stl Back_thread_1_v2.stl Easier to print as two individual parts - the previous file had one thread ring not on the bed - sorry about that! UPDATE: 300115 Added v2 version of the main body. Split into 2 files: MAIN_body_1_v2.stl MAIN_body_2_v2.stl Simpler geometry - some users were having slicer, printer issues. UPDATE: 080215 Added v2 versions of the bracelet files: Bracelet_outer_links_v2.stl Bracelet_inner_links_v2.stl Optimised arrangement to fit onto smaller build beds. UPDATE: 170215 Added a new 'Main clasp' (without support) file. To use with your slicer support settings UPDATE: 040815 Replaced Bracelet_inner_links_v2 with a new file: Bracelet_inner_links_v3 - some of the links weren't aligned to the floor (only an issue if slicing higher than 0.2mm) UPDATE: 081115 Added a blank face dial: Face_dial_Blank.stl. Add your own branding Enjoy!InstructionsFully detailed instructions included with the 'Thing files': Divers_Watch_desk_clock_v1.pdf

Design Files

File Size

Clasp_hinge_clasp_v2.stl
1.02 MB
Main_clasp_no_support.stl
594 KB
Bracelet_outer_links_v2.stl
1.56 MB
MAIN_body_2_v2.stl
1.48 MB
Main_body.stl
8.17 MB
Bracelet_watch_links.stl
385 KB
Bezel_outer.stl
516 KB
Clasp_hinge_latch.stl
1.58 MB
Dial_hour_inserts.stl
188 KB
Face_dial_Blank.stl
306 KB
Face_dial_MB.stl
400 KB
Winder_MB.stl
745 KB
Main_clasp.stl
1.43 MB
Bezel_face_numbers.stl
294 KB
Bracelet_inner_links.stl
659 KB
Bracelet_outer_links.stl
1.56 MB
Back.stl
2.49 MB
Face_dial_MB_flat.stl
317 KB
Back_thread_2_v2.stl
371 KB
Bracelet_inner_links_v3.stl
659 KB
MAIN_body_1_v2.stl
958 KB
Back_thread_1_v2.stl
342 KB
Divers_Watch_desk_clock_v1.pdf
2 MB
Back_outer.stl
226 KB
Dial_hours_outer.stl
504 KB
Bezel_number_face.stl
1.7 MB
Hands_inserts.stl
30.7 KB
Inner_ring.stl
292 KB
Hands.stl
279 KB
Bezel_ratchet.stl
133 KB
Small_clasp.stl
1.29 MB
