3DP XL SphereBot (Fully 3D Printed Eggbot)

Prints (0)

Description

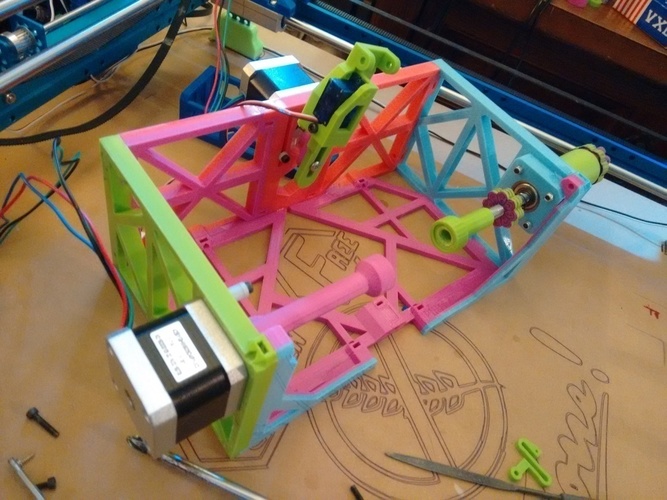

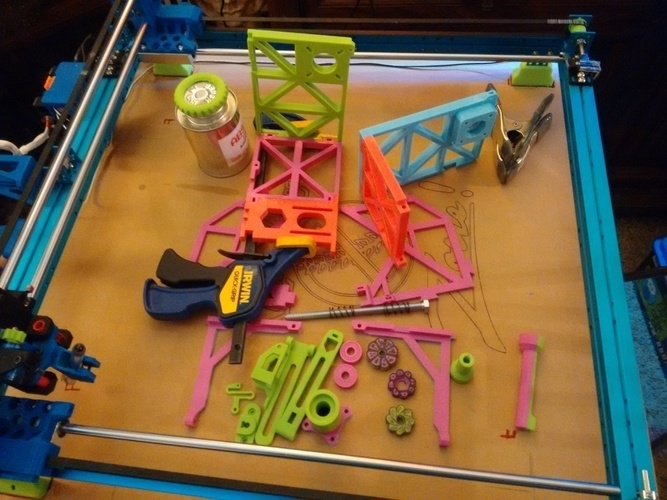

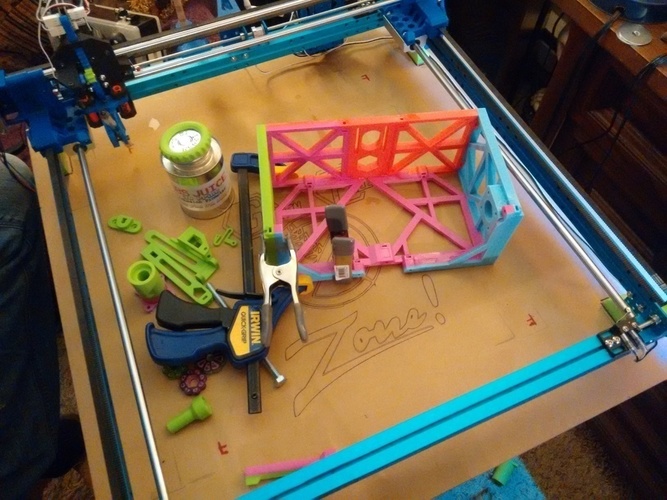

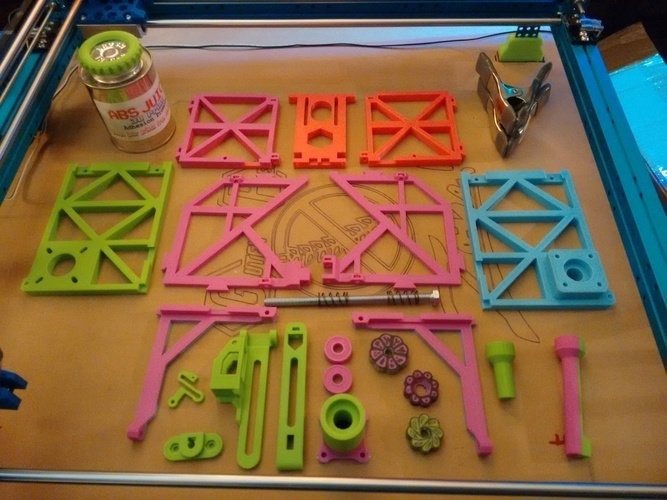

Summary3DP XL Spherebot Fully 3D printed (bolt and/or glue together) Extra Large Eggbot/Spherebot Files for a standard size version are included. 5mm and 4mm shaft options...comment below if you desire a different shaft diameter for the driver egg cup and pen pivot motor shaft adapter. I will be printing the XL version very soon. I am working on publishing an instructable for the assembly...it should be pretty straight forward but due to my use of the dovetail joints, a specific order is required for assembly. This can be bolted together and/or glued together...I glued mine with ABS Juice and used clamps to hold the parts while the ABS Juice dried. DO NOT print "SphereBot_XL_Assembled.stl" file, it is for assembly reference only!Print SettingsPrinter: FFCP, Dup4Rafts: Doesn't MatterSupports: YesResolution: 200 microns (0.20mm)Infill: 30%+Notes: Support only required on a few parts (drive/idler cups, bearing holder) Print bed adhesion promoter and the use of "helper discs" at the corners is highly recommended to prevent warping/peeling.

Design Files

File Size

3DP_Spherebot_Pen_Pivot_Motor_Shaft_Adapter_4mm.stl
212 KB
3DP_Spherebot_Pen_Pivot_Motor_Shaft_Adapter.stl
196 KB
3DP_Spherebot_Y-Axis_Motor_Bracket.stl
456 KB
3DP_Spherebot_X-Axis_Motor_Bracket.stl
457 KB
3DP_Spherebot_Bottom_Right.stl
413 KB
3DP_Spherebot_Bottom_Left.stl
285 KB
3DP_Spherebot_Back_Right.stl
654 KB
3DP_Spherebot_XL_Y-Axis_Motor_Bracket.stl
587 KB
SphereBot_XL_Assembled.stl
5.01 MB
3DP_Spherebot_XL_Y-Axis_Motor_Support_Bracket.stl
181 KB
3DP_Spherebot_XL_Front_Left_Support.stl
161 KB
Helper_Disk_Small.stl
18.6 KB
3DP_Spherebot_Cross_Support.stl
272 KB
3DP_Spherebot_Bolt_Knob.stl
299 KB
3DP_Spherebot_Threaded_Knob_v2.stl
399 KB
3DP_Spherebot_Threaded_Knob_v1.stl
479 KB
3DP_Spherebot_Pen_Lift_Spring.stl
162 KB
3DP_Spherebot_Pen_Holder.stl
269 KB
3DP_Spherebot_Pen_Pivot_Servo_Mount.stl
540 KB
3DP_Spherebot_Driver_Egg_Cup_4mm.stl
427 KB
3DP_Spherebot_Driver_Egg_Cup.stl
429 KB
3DP_Spherebot_Idler_Egg_Cup.stl
424 KB
3DP_Spherebot_Front_Right_Support.stl
157 KB
3DP_Spherebot_Front_Left_Support.stl
157 KB
3DP_Spherebot_Bearing_Idler_Bracket.stl
677 KB
3DP_Spherebot_Back_Left.stl
653 KB
3DP_Spherebot_Bearing_Holder.stl
593 KB
3DP_Spherebot_XL_Front_Right_Support.stl
161 KB
3DP_Spherebot_XL_Bearing_Idler_Bracket.stl
706 KB
3DP_Spherebot_XL_X-Axis_Motor_Bracket.stl
580 KB
