Makeblock XY Plotter (Drawbot) Feet

Prints (0)

Description

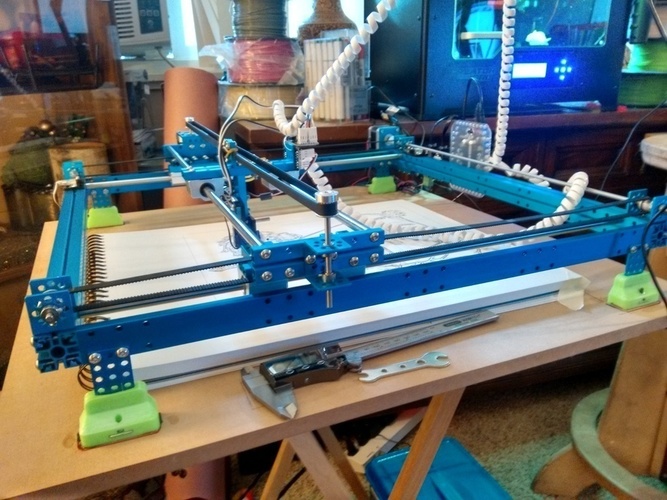

SummaryFeet for the Makeblock drawbot (XY plotter) for use with 3mm t-nuts so the bot may be secured to a platform (2' x 2' MDF wood in my case) the bot can be stored on the wall plus I plan a few mods for my Makeblock drawbot (xy plotter) I have noticed the precision of the drawbot has vastly improved with only 2 of the 4 feet secured to a mounting surface (1/2 inch x 2x2 feet MDF wood base) 07FEB16- updated file with proper dimensions (foot insert hole was not wide enough) 08FEB16- modified the original design for a stronger foot and to allow the bolt/screw to pass through the foot when using longer hardware.

Design Files

File Size

Drawbot_foot_rev3.stl
263 KB
