Shift Knob
Free

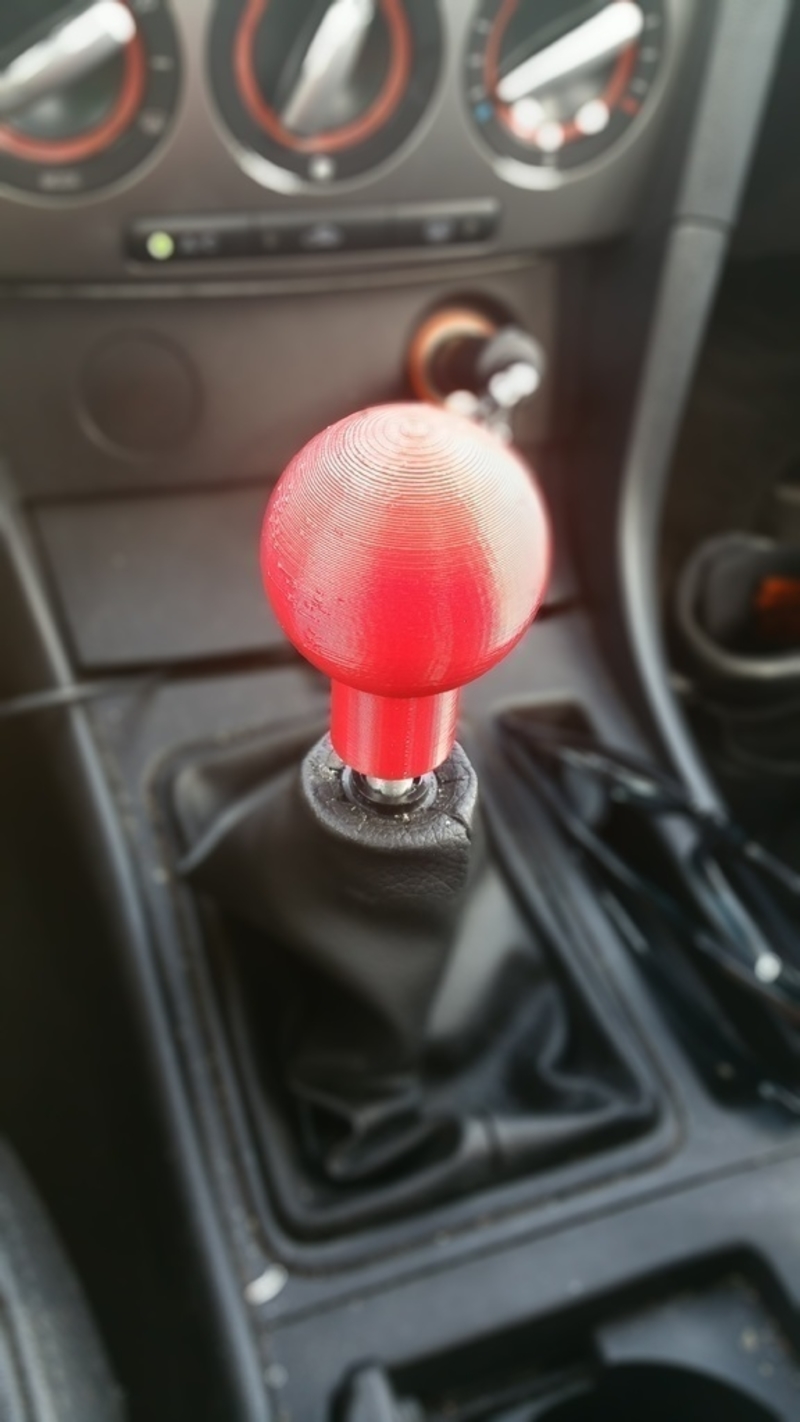

Summary My shift knob in my 2007 Mazda 3 broke, so instead of just buying a new one I created my own simple one. The picture shown does not have the knob screwed on all the way, it does go all the way down to the boot. I was worried about printing this upright and using support, but it worked just great. I have since printed it upright without support so it is whatever you want to do with your specific printer. The thread on it is M10x1.25, so even though I did this for a Mazda 3 it should fit any shifter that has that thread on it. It was a little hard to twist on, but I prefer that to ensure it won't come off while driving. I printed mine with a higher infill than I usually do (35%vs10%), this is because of the force that will be put on the center thread/core while shifting. I wanted give it a little more robustness while driving. I hope at least one person finds this useful, it is my first upload to Thingiverse. Enjoy. Print Settings Printer Brand: MakerBot Printer: MakerBot Replicator Rafts: Doesn't Matter Supports: Doesn't Matter Resolution: 0.25 Infill: 20% + Notes: Pretty easy print, shouldn't be a problem. I did mine in ABS because that is what I have.

Loading comments...

Loading prints...

Shift Knob

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
Mazda_3_Shift_Knob.stl
STL Model
1.2 MB
File size
Free download - login required
Downloaded: 7 times
