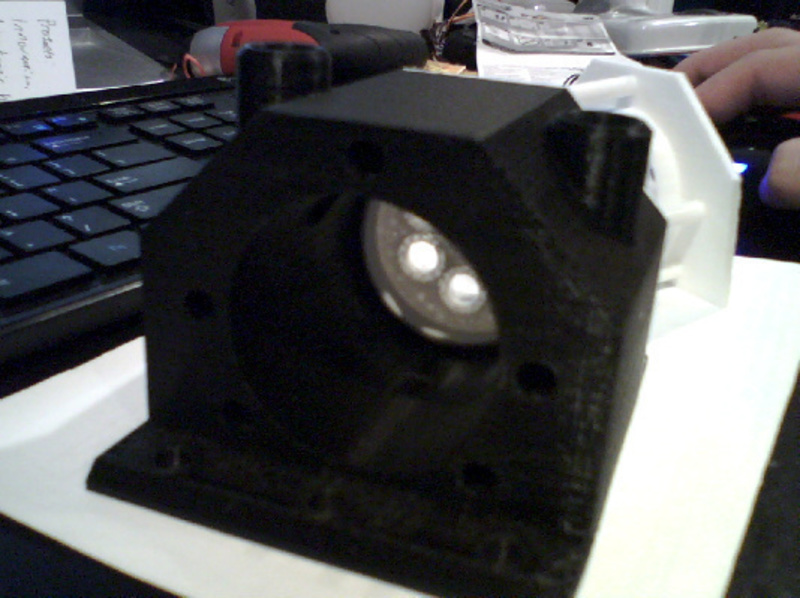

Tesla Turbine Parts
Free
Summary This is a turbine designed by Nikola Tesla. it is said to have a 95% efficiency rate and I have modified it. I plan to plasti dip the part to make it air tight. Compressed air needs to flow through one of the two hole at the top with a 1/8" Rod going through both exhaust plates and the spindle (Yet to pictured) Pleas use the proper safety equipment during use. I am not responsible for any injuries during the use of this device. Instructions Print two face plates 1 body 1 spindle Wear goggles and take other necessary precautions Please print the spindle with one of the flat sides down and of course the body with the large face down.

Loading comments...

Loading prints...

Tesla Turbine Parts

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

3 downloadable files:

View 3D
Spindle_V1.stl
STL Model
177.0 KB
File size
View 3D
Body_V.stl
STL Model
312.9 KB
File size
View 3D
Exhaust_Plate_V1.stl
STL Model
130.5 KB
File size
