Turbo Charger Model [Working]
Free

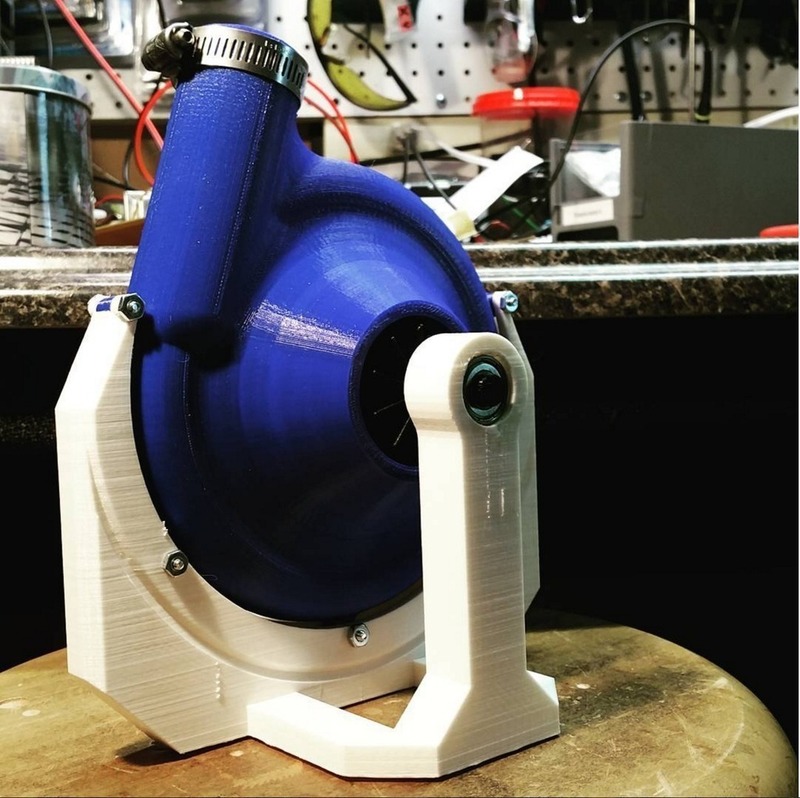

Summary This is a working Turbo Charger Model! It does not compress the air, but it definitely sounds like a turbo! Just print one of every part and get assembling! Be ware, it is quite large. You will need two 608ZZ ball bearings ( https://www.amazon.com/gp/product/B00OKXRJBG/ref=oh_aui_search_detailpage?ie=UTF8&psc=1 ) to completely assemble this. As for the axel, I went to my local hardware store and picked up some square aluminium tubing that had a 4x4 mm profile. You only need about 8-10 inches to complete assembly. I also found some flexible plastic tubing, helps to use as a stand off, to keep things lined up properly. If you have any questions, please feel free to comment! I will release .IPT files upon request. DO NOT print the "Full Assembly DO NOT PRINT.stl" file. It is for assembling reference only. Also: The motor I used was the High-Speed Motor from radioshack. ( https://www.radioshack.com/products/radioshack-super-speed-9-18vdc-hobby-motor?variant=5717369029 ) Keep it at ~12v though. Higher than that, things melt quickly. KNOWN ISSUES: Gear for motor needs a better method of mounting to the motor. No place for a switch on base. Print Settings Printer Brand: MakerBot Printer: MakerBot Replicator (5th Generation) Rafts: Doesn't Matter Resolution: .18 Infill: 50% Notes: I only supported the more conic half of the turbo shell. It has a weird dip in it that would cause an ring to float. I tried to use at least 3-5 layers to keep everything air tight. As you can see in the thumbnail, there is a hose clamp around the output of the turbo. That is due to some warping during the print. It shouldn't be necessary.

Loading comments...

Loading prints...

Turbo Charger Model [Working]

likes
2 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

9 downloadable files:

View 3D
Bearing_Axel_Adapter.stl
STL Model
49.8 KB
File size
View 3D
Motor_Gear_Final.stl
STL Model
59.4 KB
File size
View 3D
Full_Assembly_DO_NOT_PRINT.stl
STL Model
2.4 MB
File size
View 3D
Cradle_V1.stl
STL Model
202.3 KB
File size
View 3D
Bearing_casket.stl
STL Model
3.0 MB
File size
View 3D
Case_Bottom.stl
STL Model
8.0 MB
File size
View 3D
Blades_V2.stl
STL Model
10.2 MB
File size
View 3D
Case_Top.stl
STL Model
7.0 MB
File size
View 3D
Bearing_Spindle_Coupler_With_Gear_V1.stl
STL Model
508.4 KB
File size
