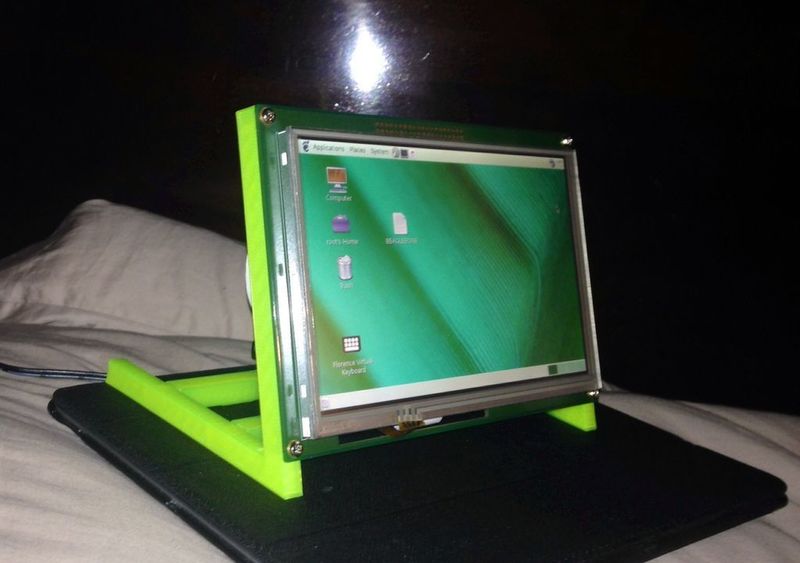

BBVIEW 7 LCD + Beaglebone Black Stand
Free
Summary Stand for mounting Beaglebone_Black + BBVIEW 7" LCD and cape. Left and right side of stand push onto hex posts on back of LCD snugly. 4 legs for cpu push into recesses in stand sides to provide posts for mounting Beaglebone Black. Cape will need to be removed temporarily to screw into the posts. Note: new properly oriented STL files uploaded. Note 9/20/14: Additional files for people with 6mm instead of 5mm hexagonal posts. Instructions printed on a raft w/ .32mm layers (all). Avoid supports on cpu legs (4 will need to be printed) if you can, though the pentagonal post for mounting into the left and right frame will need filing/sanding cleanup to fit, whether you do or not.

Loading comments...

Loading prints...

BBVIEW 7 LCD + Beaglebone Black Stand

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

5 downloadable files:

View 3D
bbview7_stand_R.stl
STL Model
18.0 KB
File size
View 3D
bbview7_stand_L.stl
STL Model
18.0 KB
File size
View 3D
cpuleg.stl
STL Model
14.7 KB
File size
View 3D
bbview7standL6mm.stl
STL Model
18.0 KB
File size
View 3D
bbview7standR6mm.stl
STL Model
18.0 KB
File size
Free download - login required
Downloaded: 40 times
