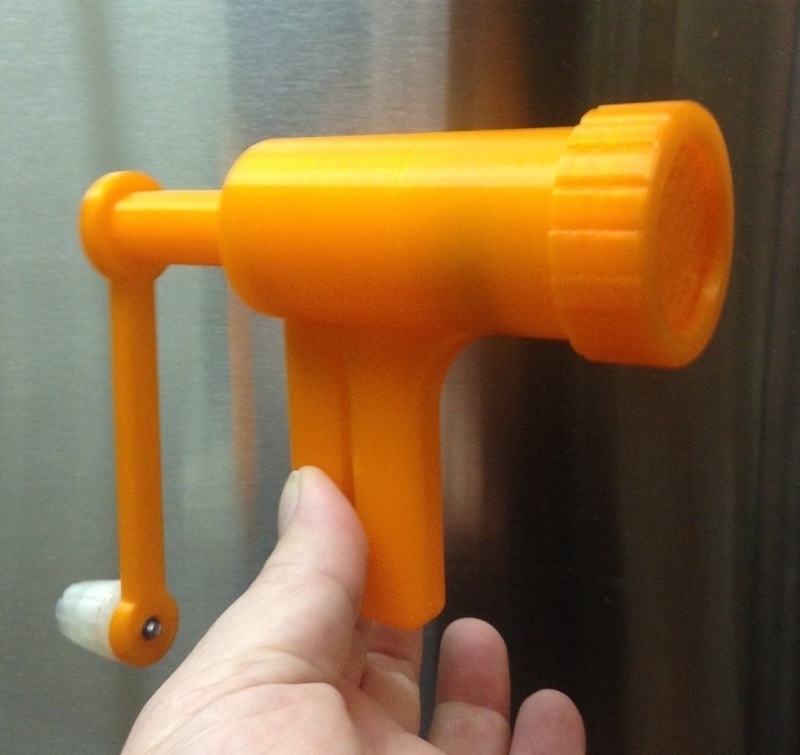

Food grater/slicer
Free
Summary Semi-useful for shredding or making ribbons out of not-too-hard and not-too-soft foods. (Too soft, and it gets destroyed by cranking action, too hard and it won't cut - this is plastic, not metal). Attach knob using M3 screw and two nuts. Glue either "xholder" or "spiked holder" (only for harder stuff) onto end of crank after inserting thru pusher. Notch in disc lines up inside retainer ring. Screw ring onto body, insert pusher into body, apply pressure, and crank away. Tested with Japanese cucumber - made some nice curly strings out of it... see photo. More of an exercise than a real useful tool. But give it a shot. Warning! Use at your own risk! Possibility of plastic coming loose into food unknown. Food contamination risk unknown. Injury risk unknown Instructions Body needs supports for handle, but can be printed with .30 layers. All others don't need supports. Holders and slicing disk should be print with .25 or thinner layers. Holder with 50% infill, disk with solid (100%) infill. Depending on your printer, ring may end up messy. Slow down print to 80% or so...

Loading comments...

Loading prints...

Food grater/slicer

likes
1 collection
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

8 downloadable files:

View 3D
slicedisc.stl
STL Model
23.7 KB
File size
View 3D
xholder.stl
STL Model
23.1 KB
File size
View 3D
knob.stl
STL Model
126.4 KB
File size
View 3D
crank.stl
STL Model
179.3 KB
File size
View 3D
spikedholder.stl
STL Model
98.4 KB
File size
View 3D
ring.stl
STL Model
509.0 KB
File size
View 3D
pusher.stl
STL Model
90.8 KB
File size
View 3D
body.stl
STL Model
282.0 KB
File size
