Ikea 'Dilling' Underbed Box Clip
Free

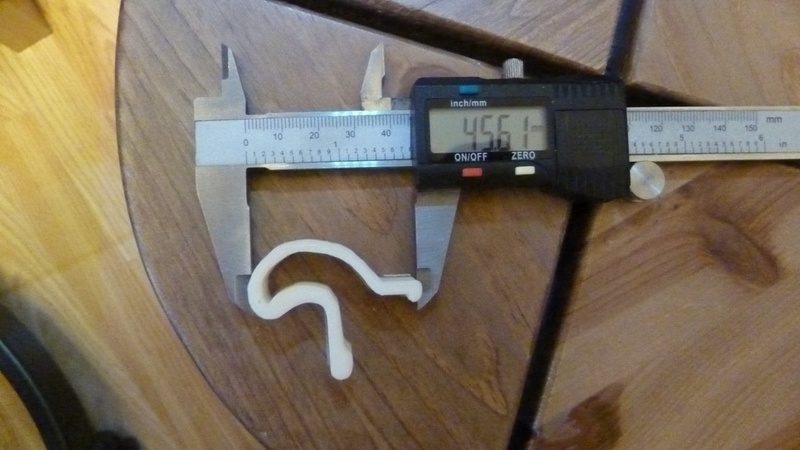

SummaryA simple Clip for the Ikea Dilling Underbed Box. The shape follows the box edge closely to get a tight grip of the slippery plastic. Simply twist on between the ribs of the box to get a good grip.They can be attached on any side, I usually fit 4 2 a side. Test Clip STL file is to check the dimensions quickly before making a bulk run with the full size file, in case the scaling is out.InstructionsSimple extrusion of a 2d clip shape. Prints in about 15 minutes per clip. I batch printed about twenty of these on an ancient Thing-o-matic with the APB (Titanium Belt) but almost any 3d printer will print this easily. Thanks to dnewman for the Inkscape convertor which saved doing the drawing to scad conversion by hand. Prints well in ABS.

Loading comments...

Loading prints...

Ikea 'Dilling' Underbed Box Clip

likes
0 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

2 downloadable files:

View 3D
Dilling_clip_test.stl
STL Model
246.3 KB
File size
View 3D
Dilling_clip.stl
STL Model
246.3 KB
File size
Free download - login required
Downloaded: 28 times
