button 8701 ,10
Button cap M10 ,10 （color ）
OMRON SS-5GL ,2
Screw & nut
HOLDER
m3*25 ,6set
m3*20 ,2set
shift m3*8 ,4set
m5*35 ,2
m5 Antiskid nut, 2
m3*8 ,6
m2.5*12 ,4
m4*16 ,4
Transfer m5*25 ,4 ,Countersunk head screw
m6nut ,4
m5*16, 6
20mm magnet 5mm*2 ,3mm*2
stm32f103c8t6
stlink v2
micro usb line
usb Spring line
51mm Steering wheel increased As a transfer and hide our development board
ST-Link STM32F103C8T6
3.3V -------- 3.3V
GND ------- GND
SWDIO --- - DIO
SWCLK --- - DCLK
https://www.bilibili.com/video/BV1K7411f7BR
https://www.bilibili.com/video/BV1n7411U75n
3D PRINTING SETTINGS
0.4 Nozzle 0.2 Layer 50%+ Infill
Loading prints...

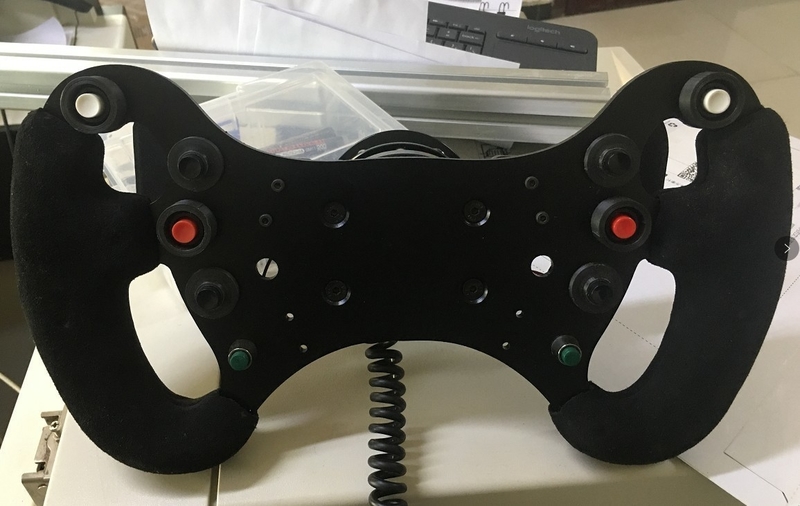

AMG GT3 STEERING WHEEL 3D PRINT
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
