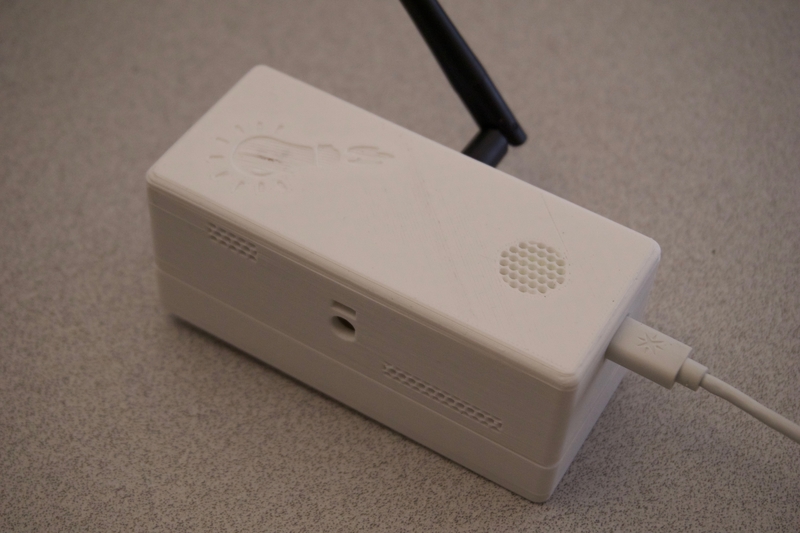

The Air Quality Wing, designed by me (Jared Wolff), is an all-in-one air quality sensor for Particle and Feather based development boards. It brings together a trio of sensors to give you as many data points as possible. That way, there won’t be anything missing when you go to measure the air inside your home or workplace.
Learn more click here
Interested in grabbing one? Go here!
The features:
- Detachable lithium battery compartment.
- Maximum battery size:
- Width: ~81 mm
- Length: ~41.9 mm
- Height: ~10.35 mm (includes battery expansion wiggle room)
- Secures with M2.5 screws
- Precision openings for the Honeywell HPMA115S0
- Dual purpose top opening for Particle RGB LED and Ventilation
- No fastener clip top
- Enough room for the original AQW and Reduced Size Version (v5 and newer)
- Knock outs for antenna connection and battery connection
- USB port cutout to run off USB power
