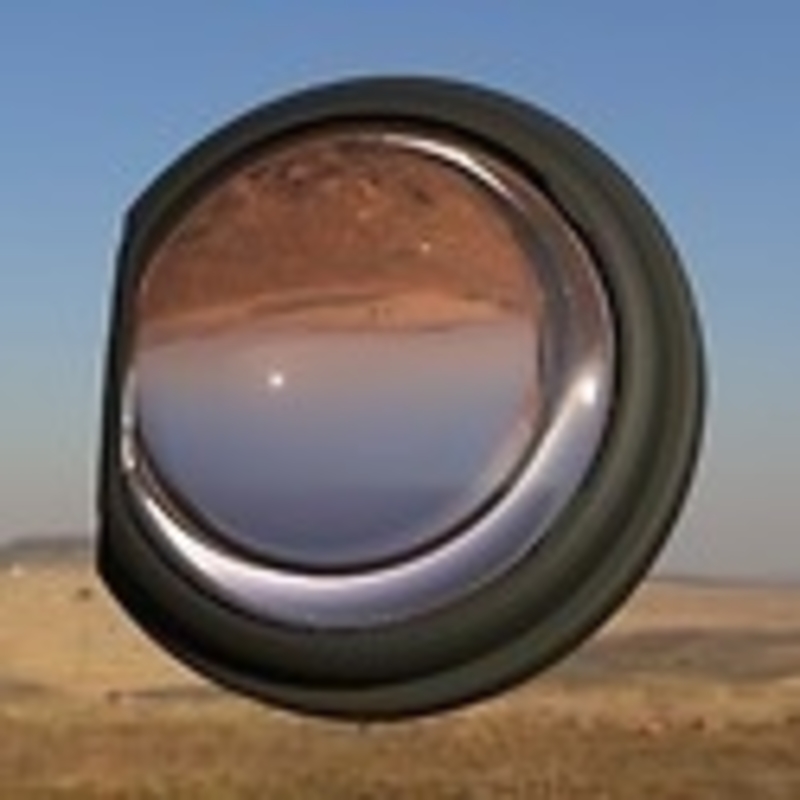

This is an adapter to fit Samsung GearVR (2016 and 2017) 42 mm lenses onto an HTC Vive (also tested and working on Vive Pro). It's for people that hate the Fresnel lenses of the Vive, which can produce "god-rays" in high contrast areas. Note: don't order a GearVR with a white body - it is a 2015 model with smaller lenses that don't fit.

UPDATES

V3.3 (slight comfort improvements over v3.2). [print 1 for each eye]

Added a version for the prescription inserts from VR Lens Lab (also fits VR Optician) There are separate files for left and right eye. May need to print with supports enabled.**

Added -2 mm low ipd (version V3.31_-2mm_low_IPD_pair).scottmueckedid a remix for low ipd, but the offset was not working for me. I've been using my own version for awhile that shifts the lenses towards the nose by 1 mm each side. I've been happy with it, so I decided to include it here. This brings the vive minimum down to 58 mm from 60. The screen image also needs to be shifted to account for this, so edit: C:\Program Files (x86)\Steam\config\steamvr.vrsettings and add the ipd offset line under the section that starts with

"steamvr" : { "background" : "#FF000000", "ipdOffset" : -0.002,

(note that the ipdOffset value is in metres, so 0.002 = 2 mm)

Added -4 mm IPD version (untested). See instructions for -2 mm ipd version above.

Installation Notes

Great detailed installation video here bycbutters tech. The process for vive and vive pro are identical.

The tolerance on the fit of the GearVR lens in the adapter is pretty tight. You may have difficulty getting it in depending on your print. With the flat part of the lens facing you, slide the top end under the 2 little nubs near the top of the adapter. You need to have the flat part of the lens perfectly parallel with the flat part of the adapter, then push in at the bottom and it should just snap in place without too much force. Note that the bulgy side of the lens faces the screen. Its really blurry upside down!

Clarity is much better than the stock Fresnel lenses. Bigger sweet spot, no reflections from the ridges, no god rays.

There is some barrel distortion. The pre-lens distortion parameters, which are stored in a json file, need to be adjusted to account for the different lens shape. slikk66 has posted a fix with instructionshereto account for the barrel distortion. There are separate versions for the Vive Pro, tryProV12orProV14. NEWProV24andProV25are created with the new distortion tool. This is a work in progress.

Judging from reports, it's important to note that there appears to be some significant variance between lens batches (both vive and gearvr). That unfortunately means the pre-lens distortion file does not work as well for some users and in some cases could be uncomfortable and even cause eyestrain. If that happens you will have to revert to stock or else modify the distortion file yourself.

A new distortion adjustment tool is available bysensercoltu on Githubwhich can be used to fine tune the distortion parameters. It can produce good results and also removes chromatic aberration if you take your time and are methodical (it took me 2 hours the first time I used it). It is definitely worth doing if you want to tweak it for your setup.

Thanksslikk66andwescottefor working on the distortion parameters.

Thanks toACkellySlaterfor posting about the lens swap he did, which inspired the need for lens adapters.

Print Settings

Printer:

Monoprice Select Mini

Supports:

No

Resolution:

0.2 mm

Infill:

15% (0% reported to work and is lighter)
