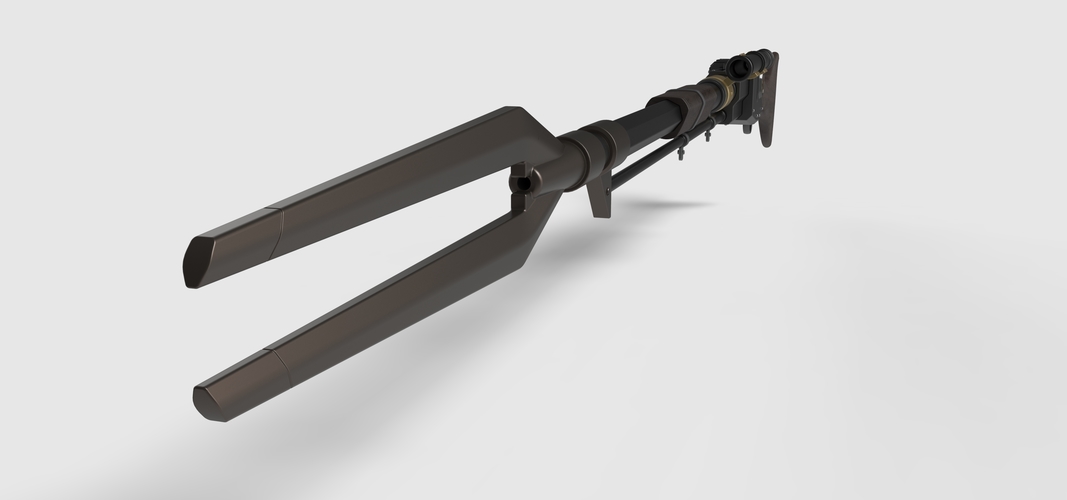

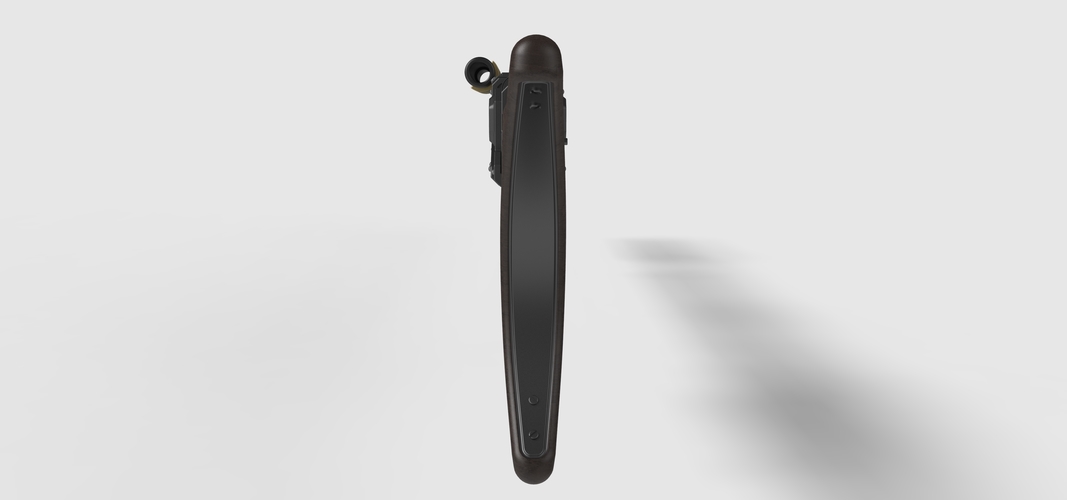

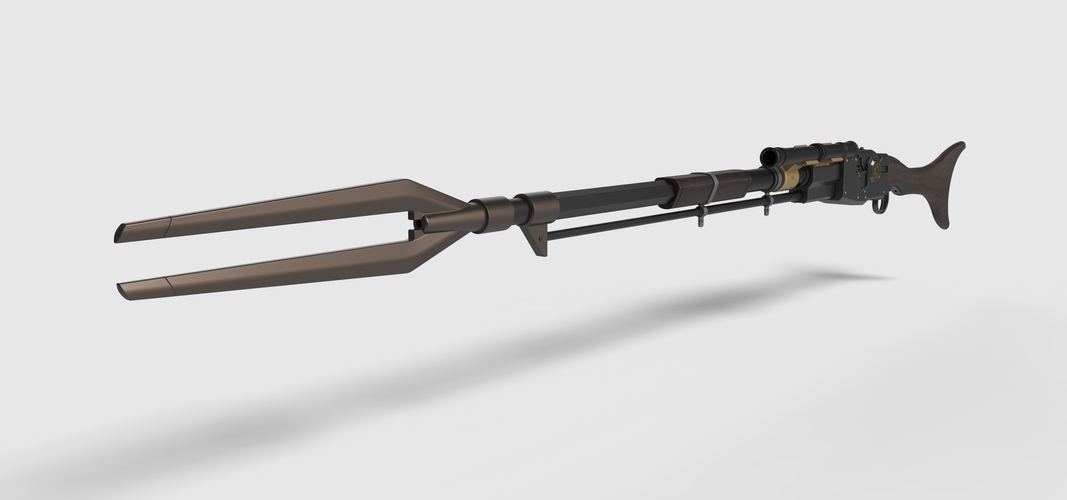

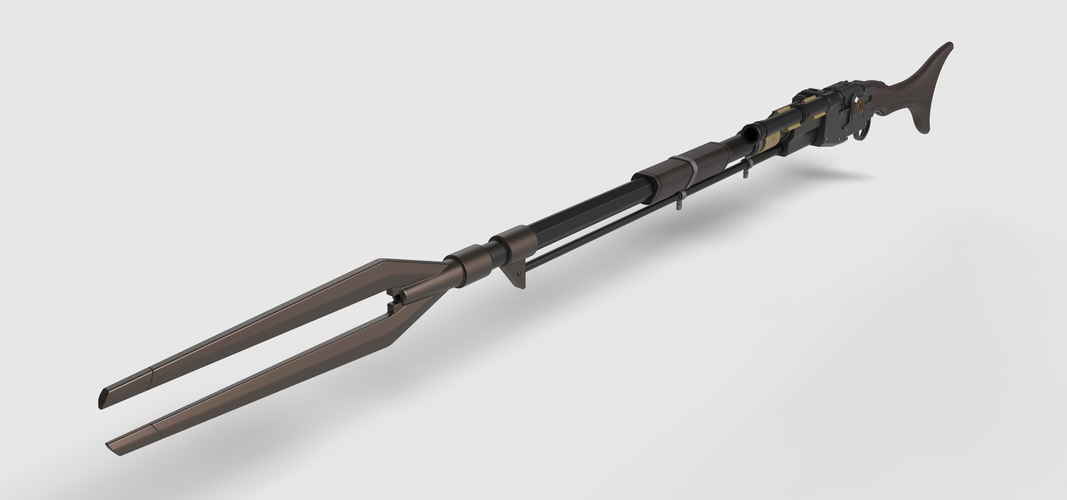

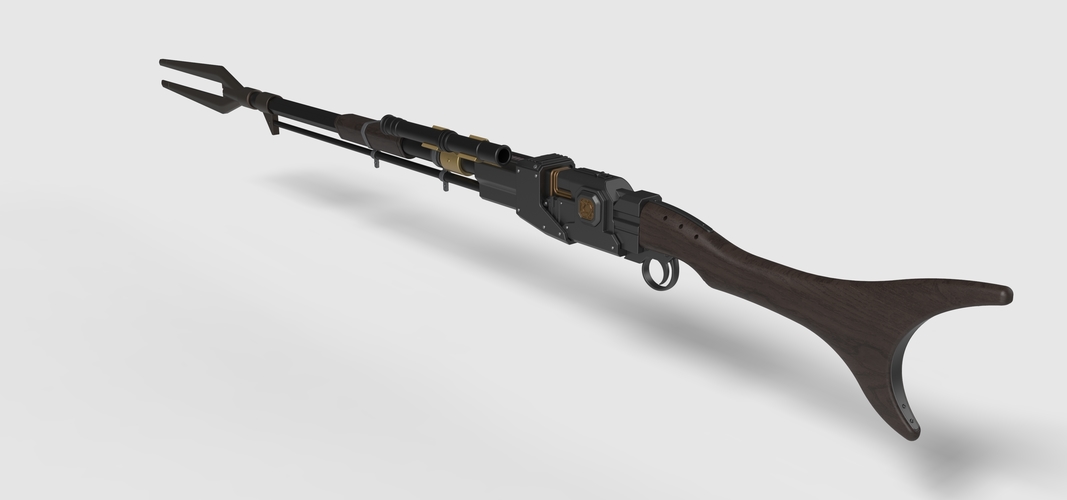

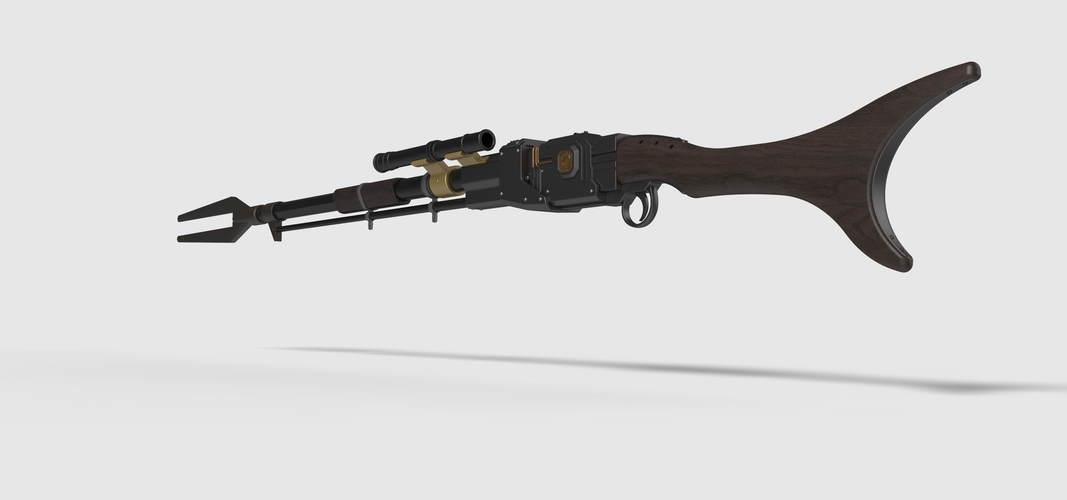

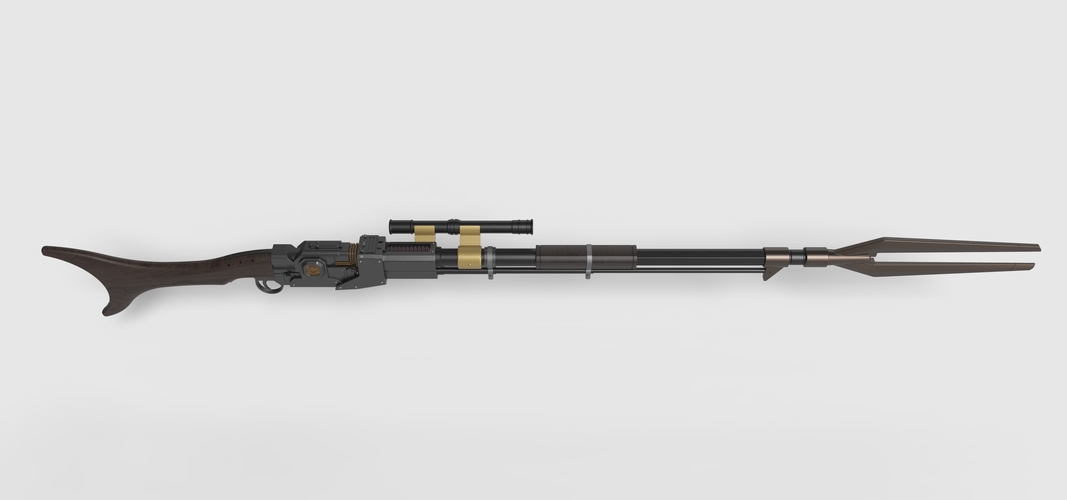

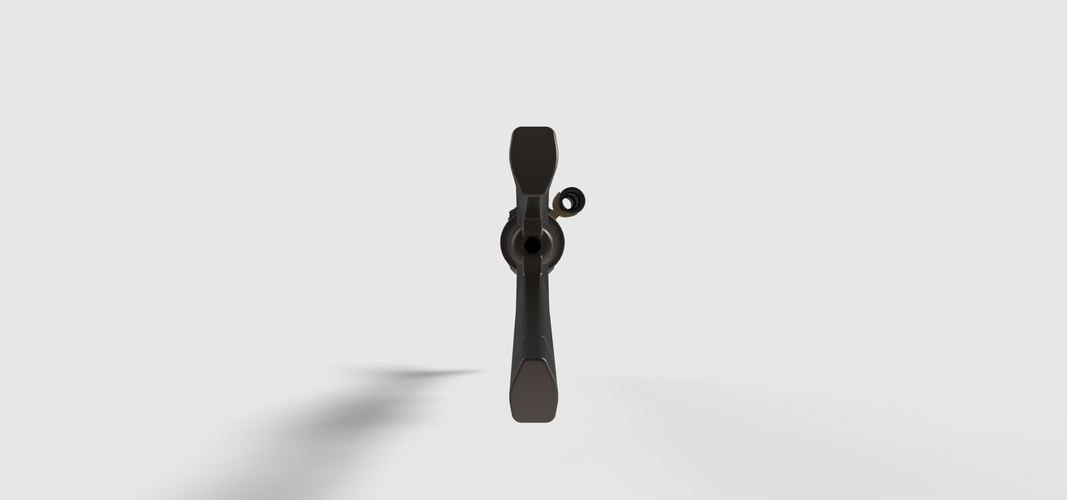

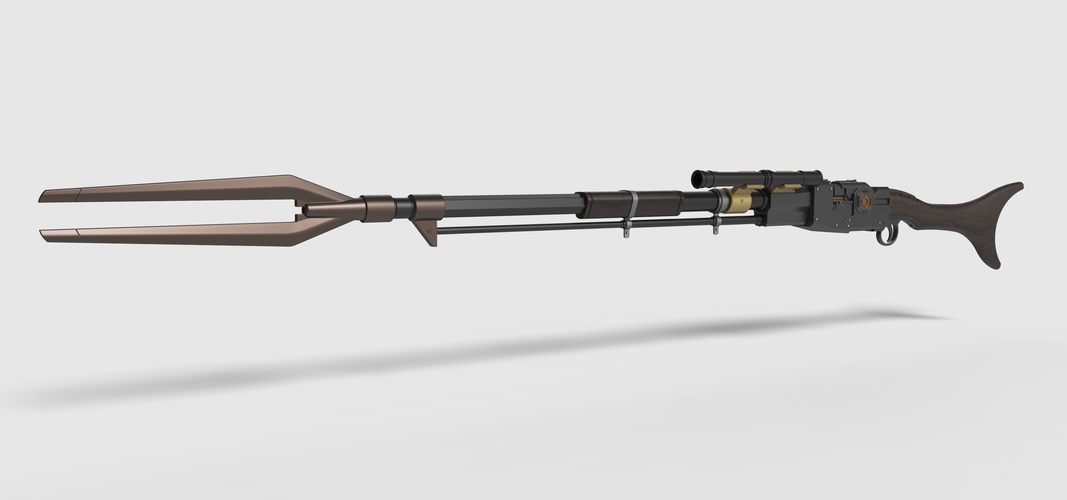

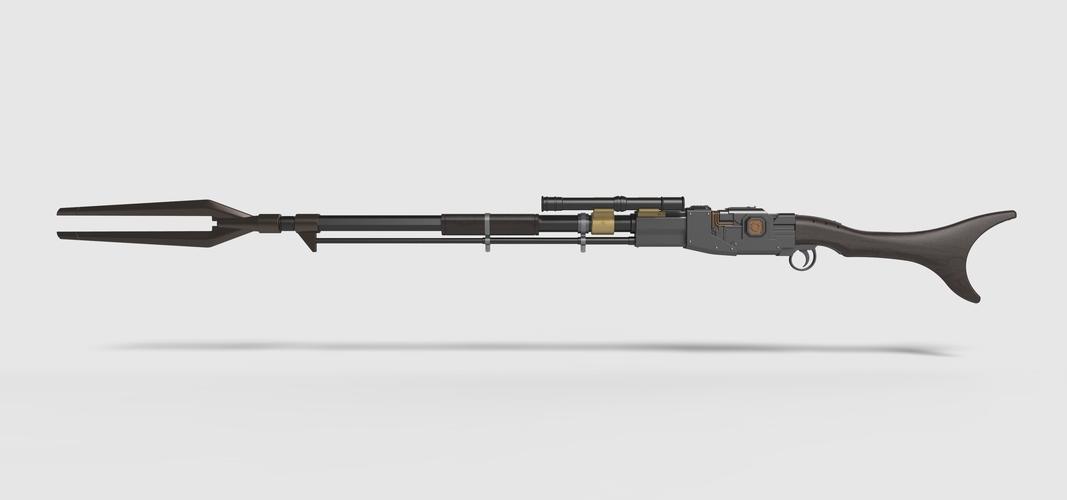

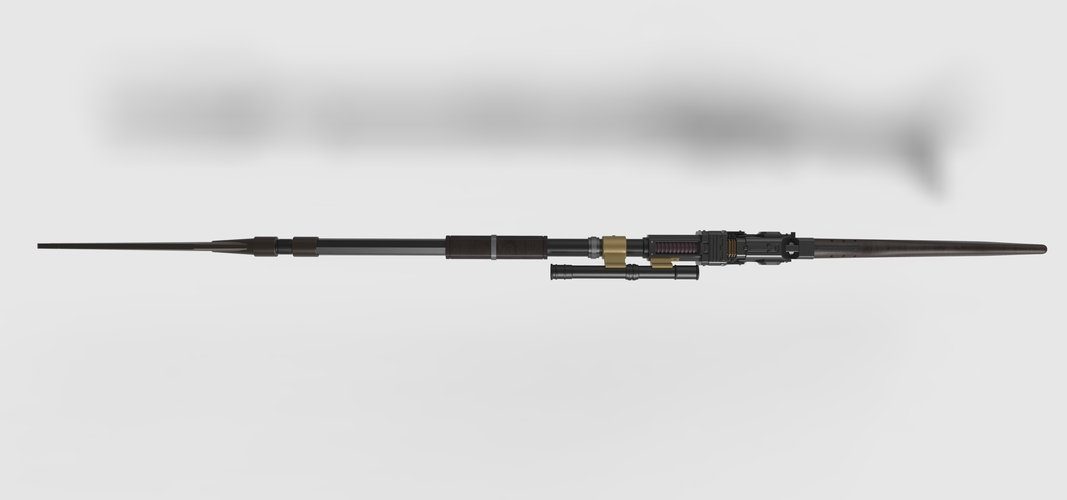

Amban sniper blaster rifle from The Mandalorian

Prints (0)

Description

Model dimensions:

- length – 1780 mm

- height – 197 mm

- width – 88.6 mm

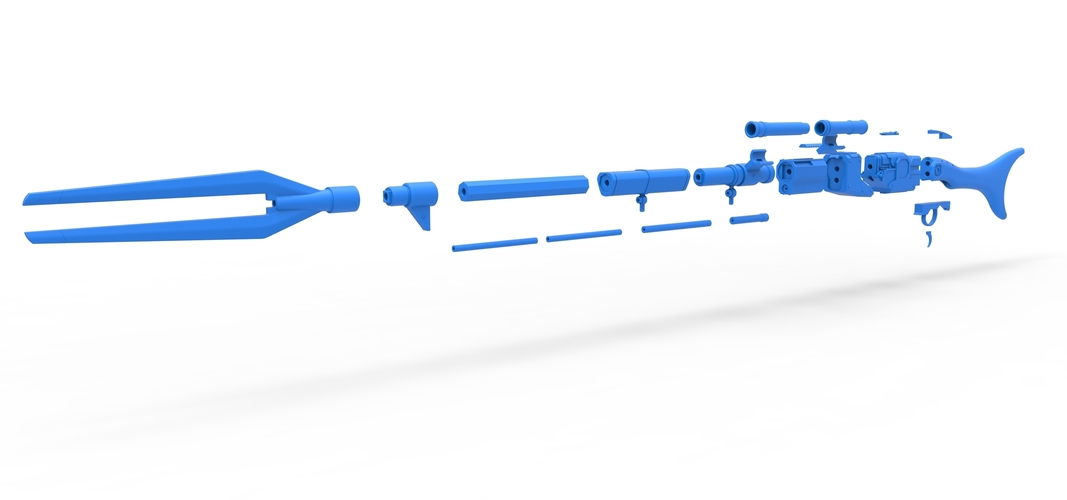

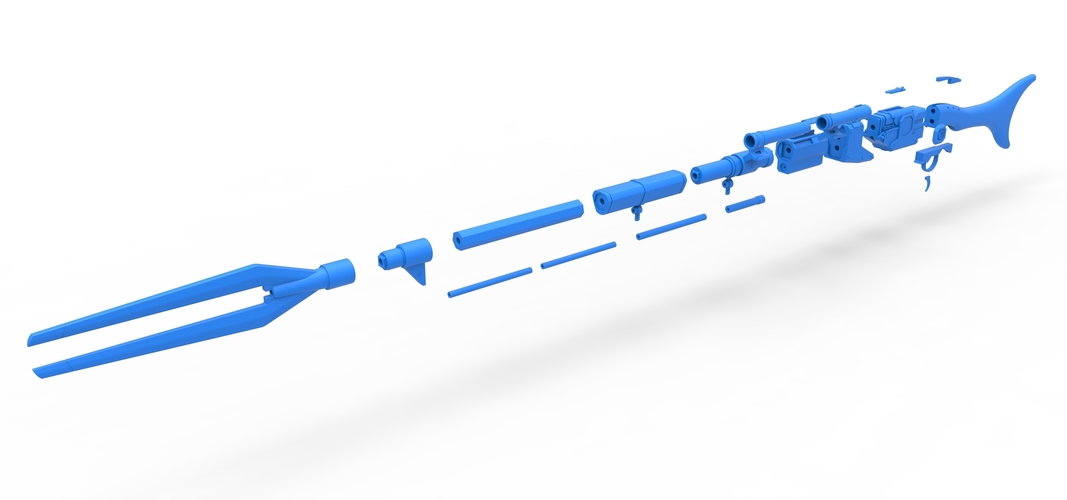

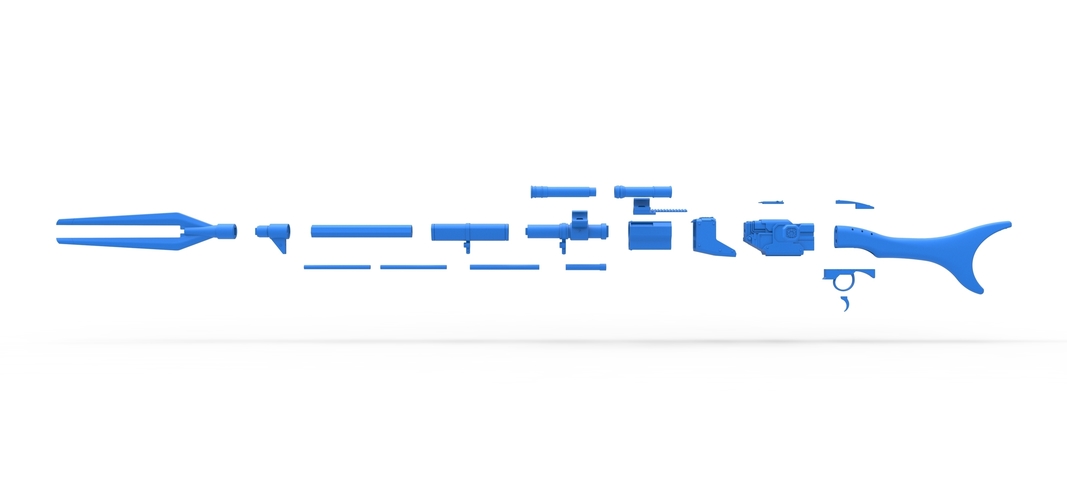

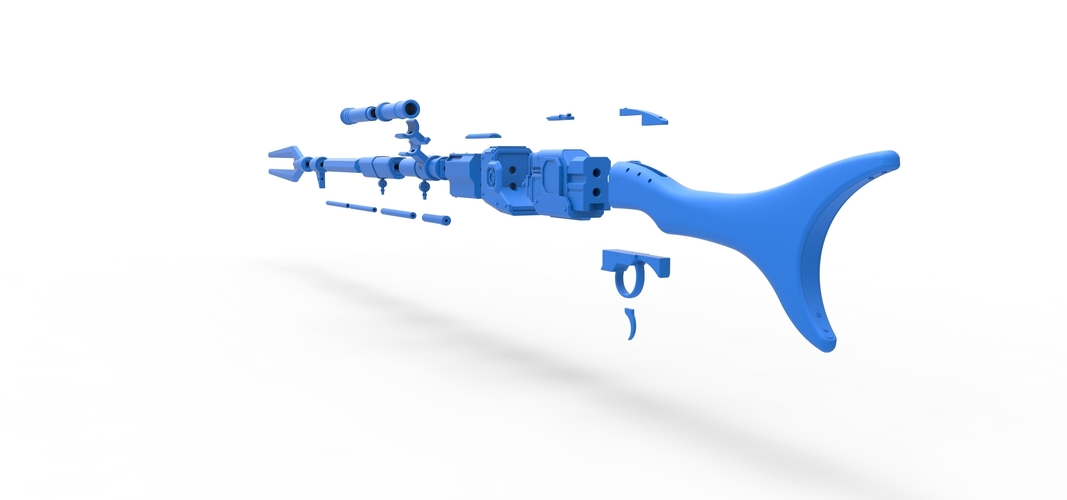

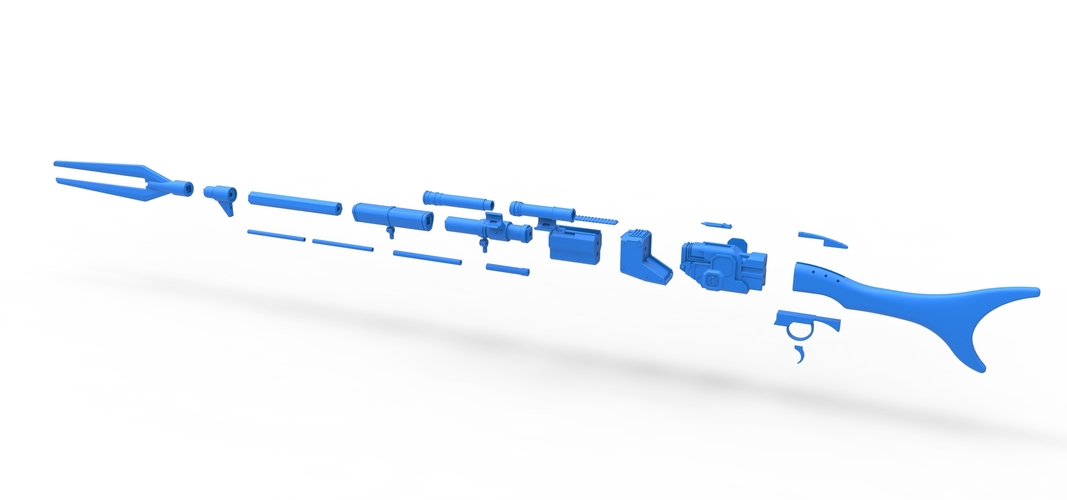

Model consists of parts: Barrel part 1, Barrel part 2, Barrel part 3, Barrel part 4, Barrel part 5, Body part 1, Body part 2, Body part 3, Butt, Guard, Scope mount, Scope part 1, Scope part 2, Side insert 1, Side insert 2, Side trigger, Top insert 1, Top insert 2, Top insert 3, Trigger, Tube 1, Tube 2, Tube 3, Tube 4.

During assembly, use guiding rods or tubes d=4 and d=10 mm.

Designed in Solid Works 2012, rendered in Keyshot 5.0.99.

Design Files

File Size

Rifle - Tube 4-1.STL
70.4 KB
Rifle - Tube 1-1.STL
42.3 KB
RackMultipart20191126-413-11z99uu.zip/Rifle.STL
46.3 MB
RackMultipart20191126-271-v4avm6.zip/Rifle.obj
43.5 MB
Rifle - Barrel part 1-1.STL
4.26 MB
Rifle - Barrel part 2-1.STL
1.47 MB
Rifle - Barrel part 3-1.STL
61 KB
Rifle - Barrel part 4-1.STL
3.61 MB
Rifle - Barrel part 5-1.STL
4.88 MB
Rifle - Body part 1-1.STL
1.21 MB
Rifle - Body part 2-1.STL
5.4 MB
Rifle - Body part 3-1.STL
7.43 MB
Rifle - Butt-1.STL
5.71 MB
Rifle - Guard-1.STL
2.47 MB
Rifle - Scope mount-1.STL
1.34 MB
Rifle - Scope part 1-1.STL
1.13 MB
Rifle - Scope part 2-1.STL
1.65 MB
Rifle - Side insert 1-1.STL
880 KB
Rifle - Side insert 2-1.STL
867 KB
Rifle - Side trigger-1.STL
290 KB
Rifle - Top insert 1-1.STL
1.34 MB
Rifle - Top insert 2-1.STL
1.13 MB
Rifle - Top insert 3-1.STL
555 KB
Rifle - Trigger-1.STL
499 KB
Rifle - Tube 2-1.STL
42.3 KB
Rifle - Tube 3-1.STL
42.3 KB
