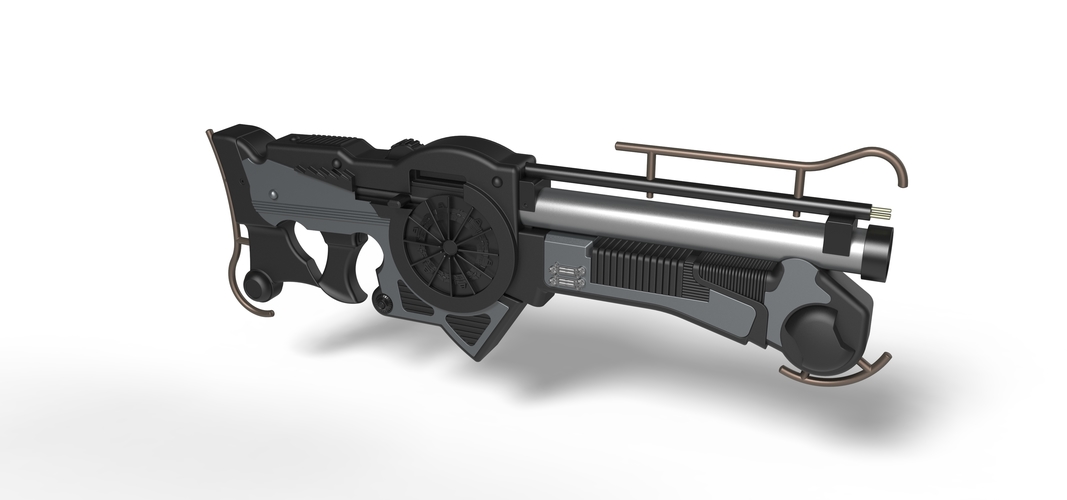

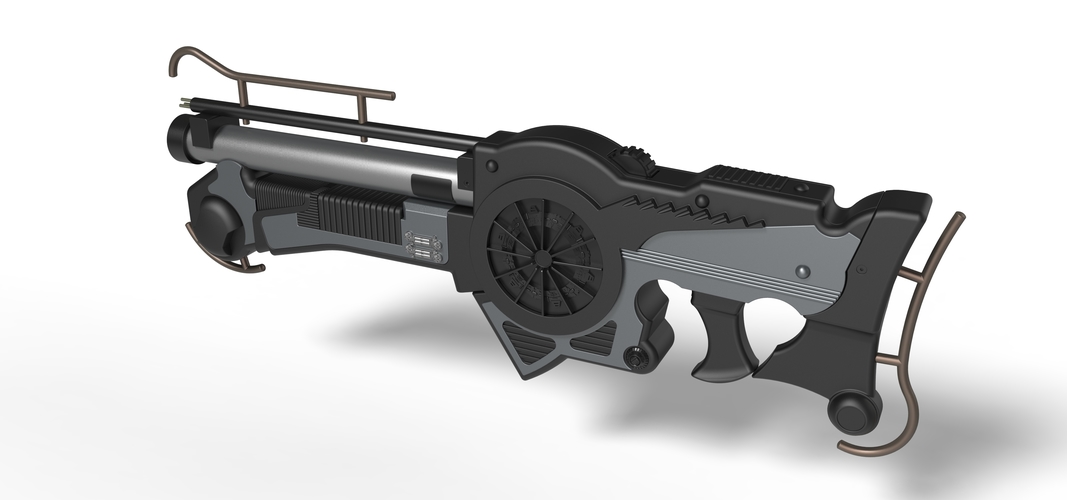

Mangalore Rifle from the movie The fifth element 1997

Prints (0)

Description

Model dimensions:

- length – 919.5 mm

- height – 341.5 mm

- width – 100 mm

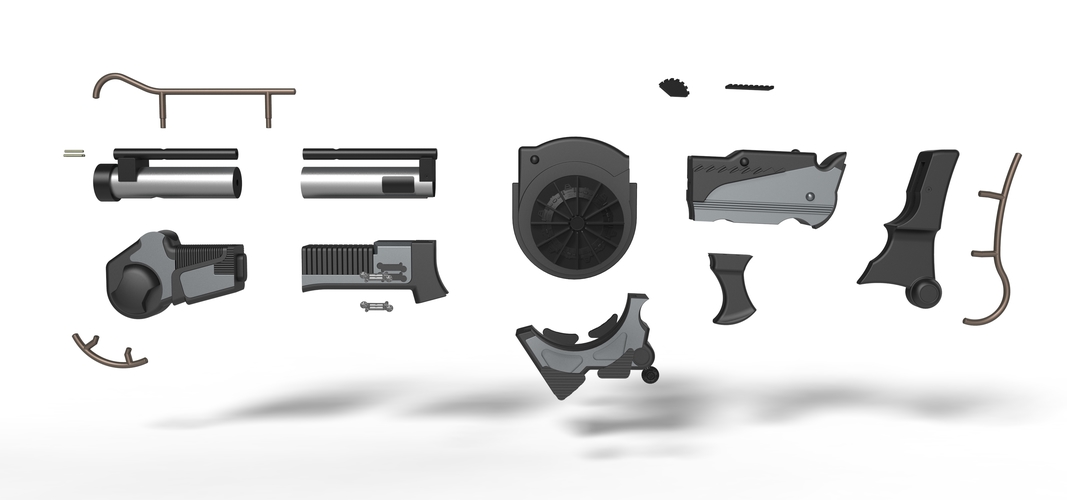

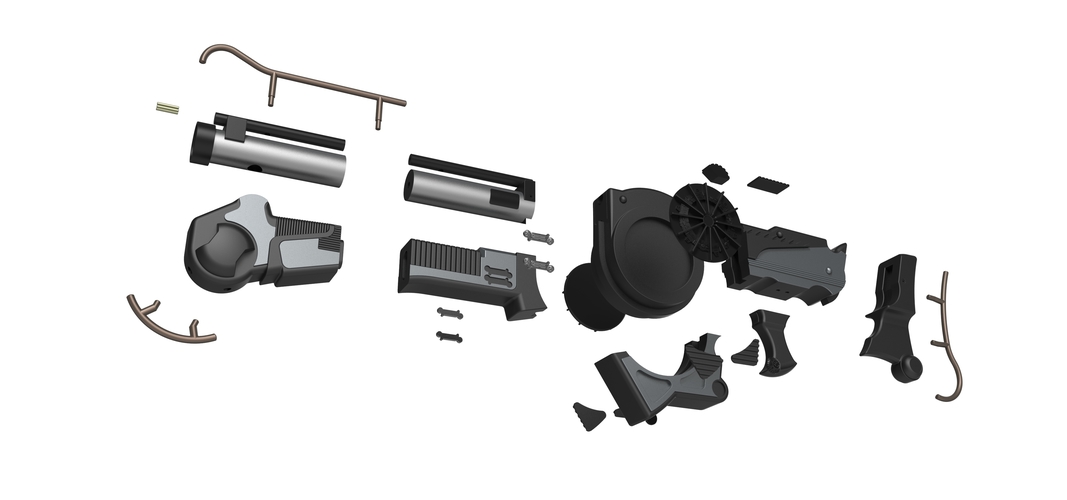

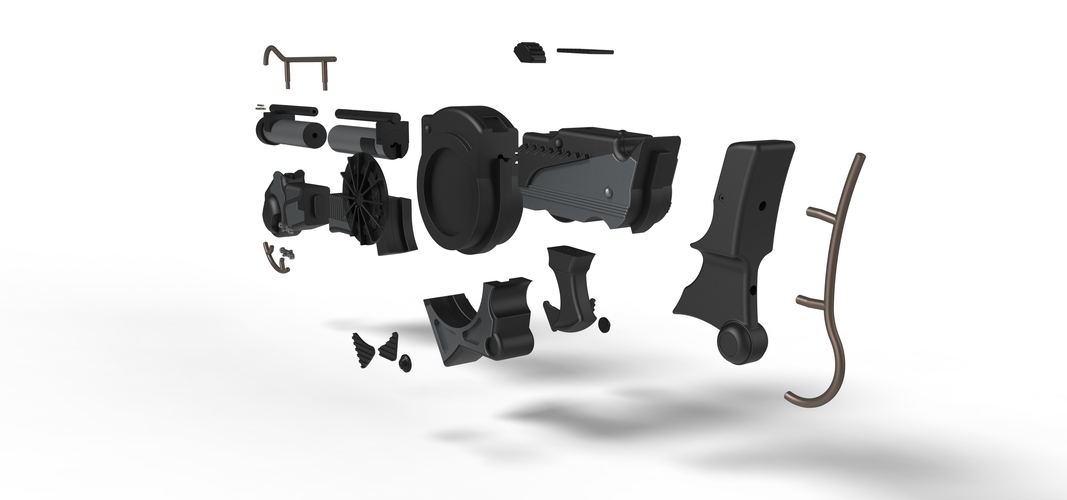

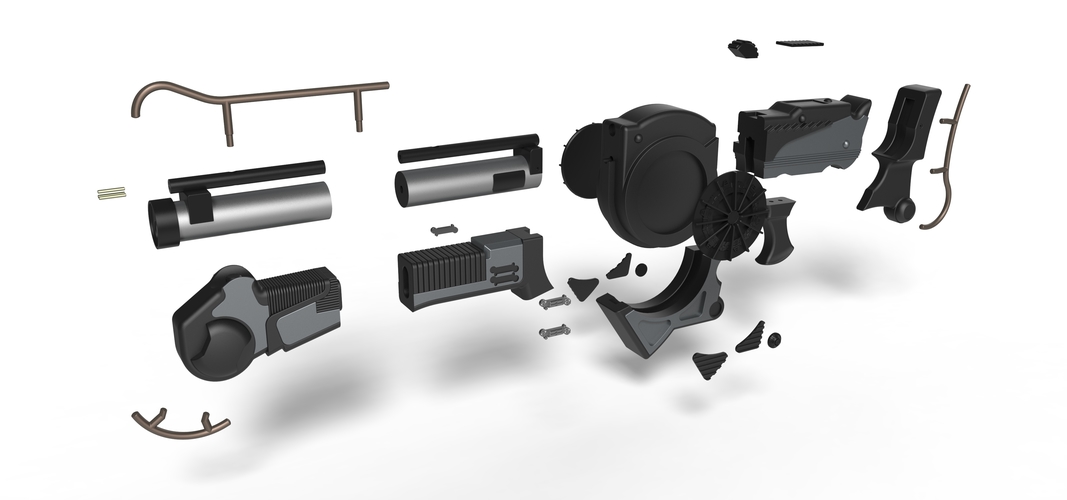

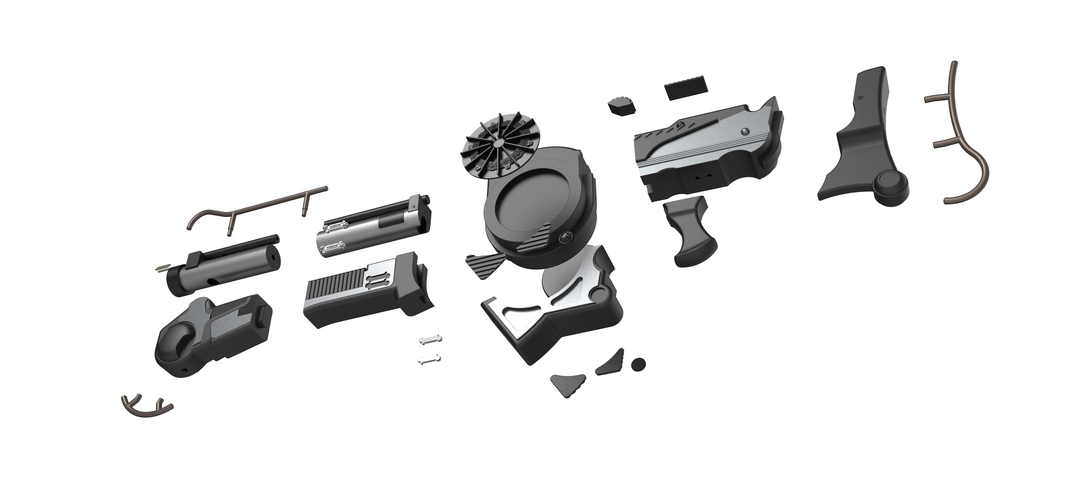

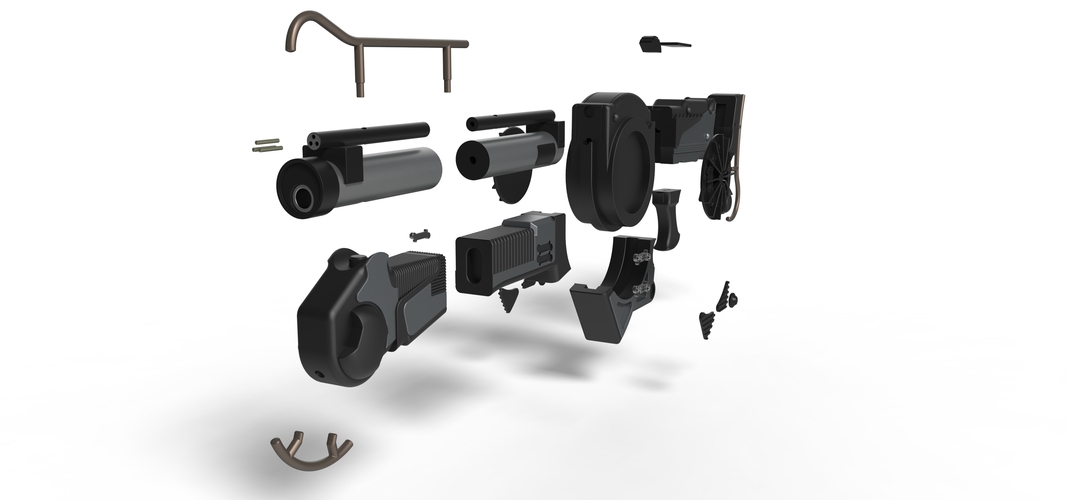

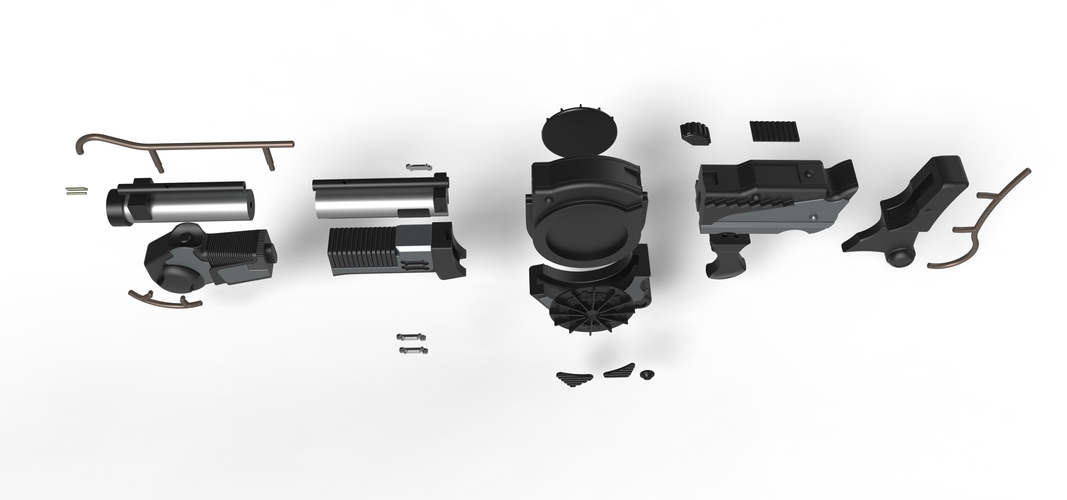

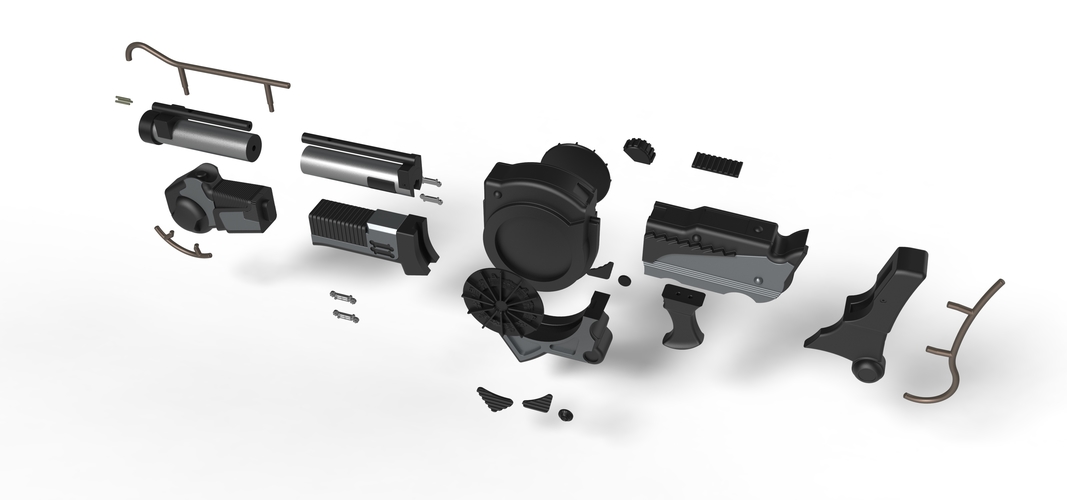

Model consists of parts: Barrel part 1, Barrel part 2, Body part 1, Body part 2, Disks, Front lower insert, Front part 1, Front part 2, Front top insert, Handle, Left insert 1, Left insert 2, Left side insert, Lower part, Pins, Rear insert, Rear part, Rear top insert, Right insert 1, Right insert 2, Right side insert, Side buttons, Top trigger.

During assembly, use guiding metal rods with diameters 6 and 10 mm.



Designed in Solid Works 2012, rendered in Keyshot 5.0.99.
