Make your own periscope

Prints (0)

Description

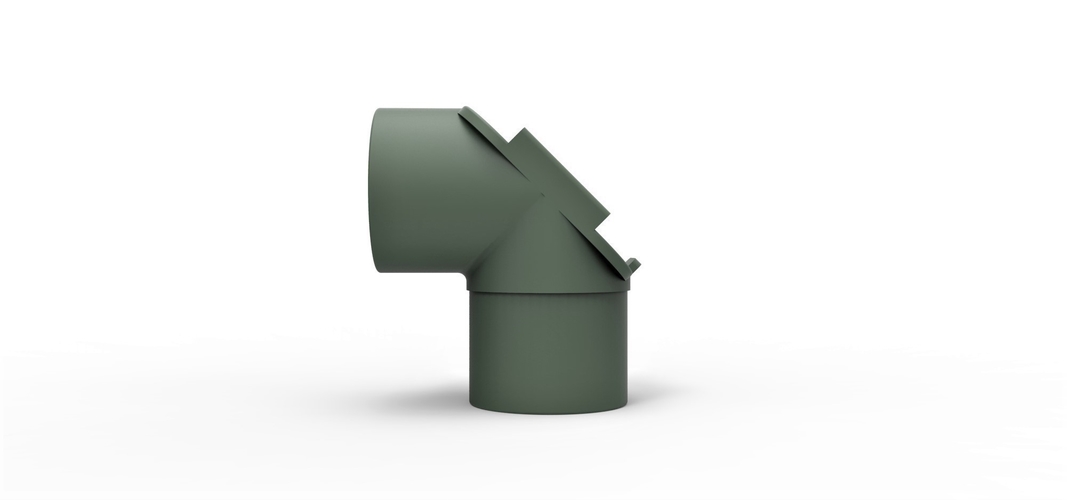

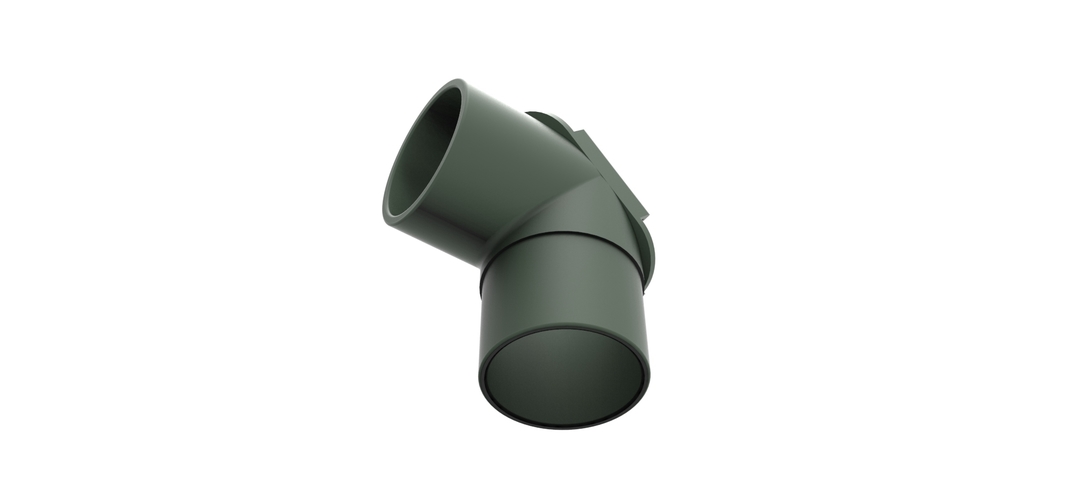

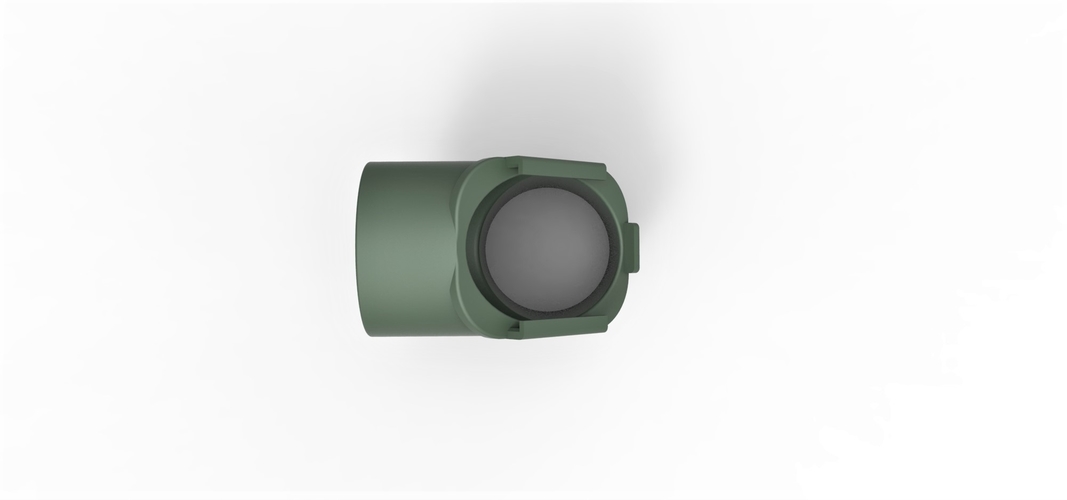

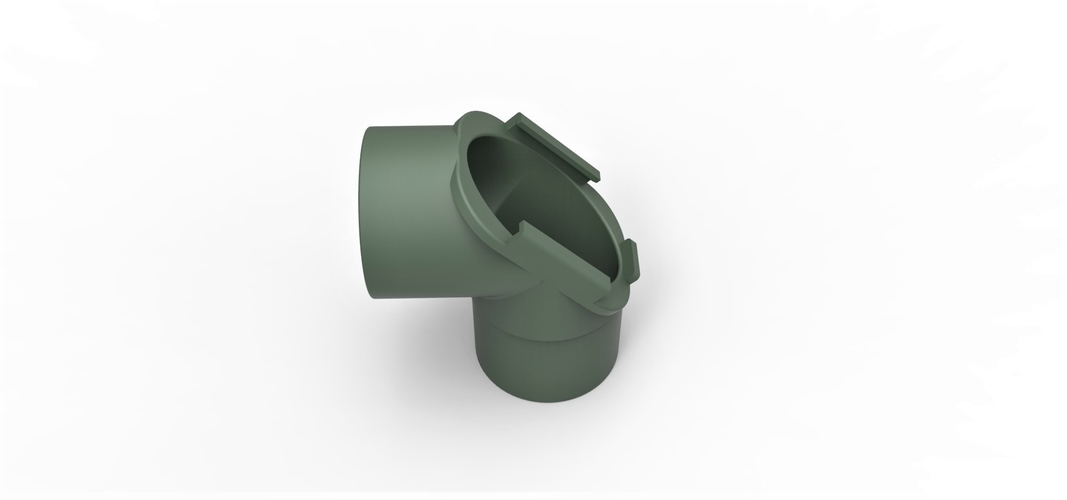

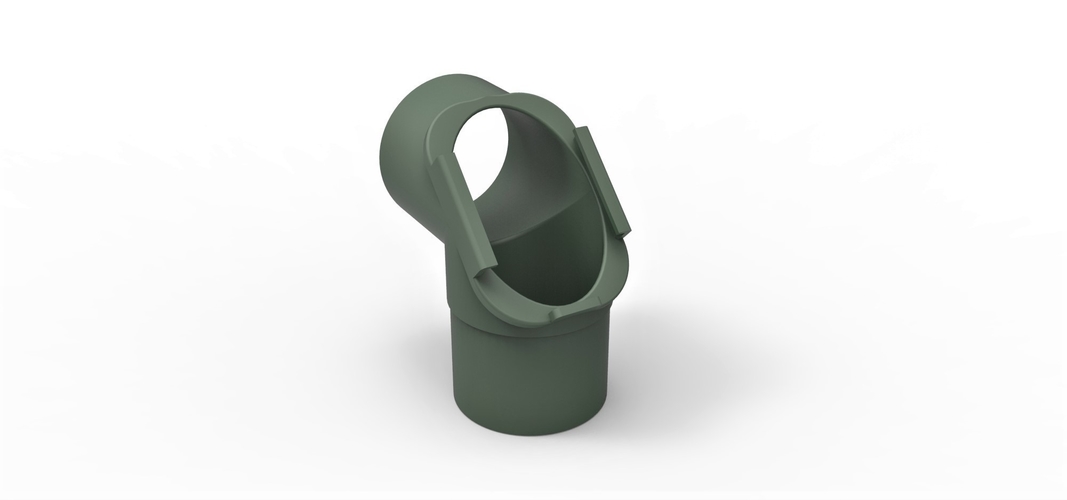

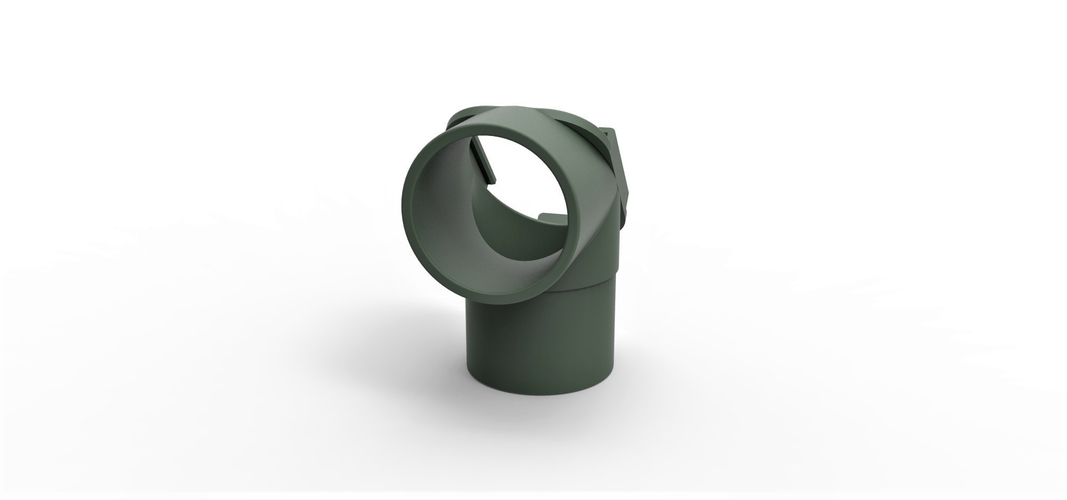

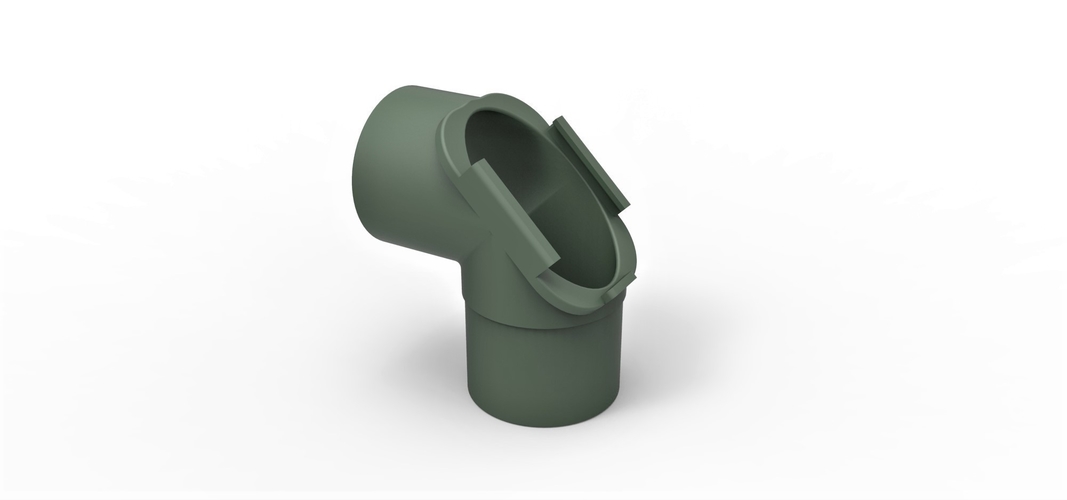

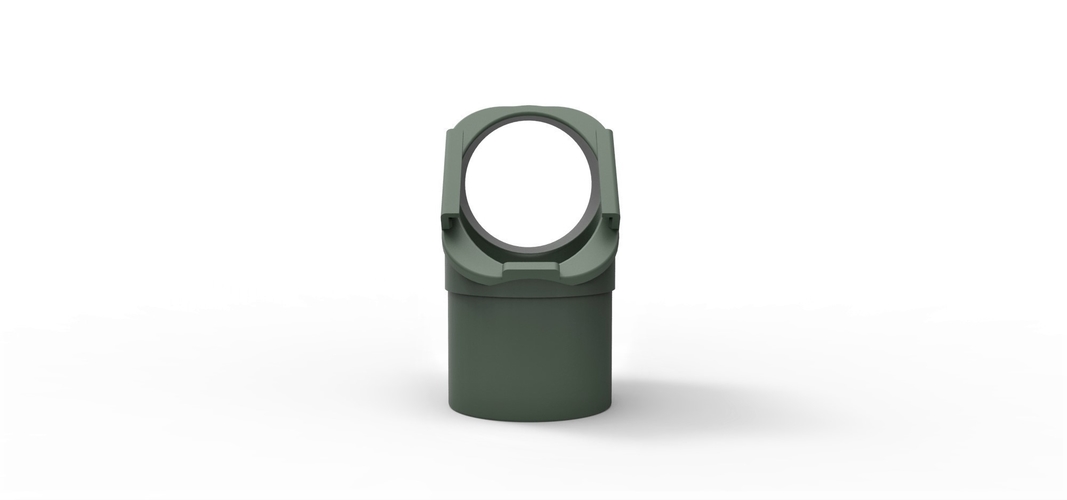

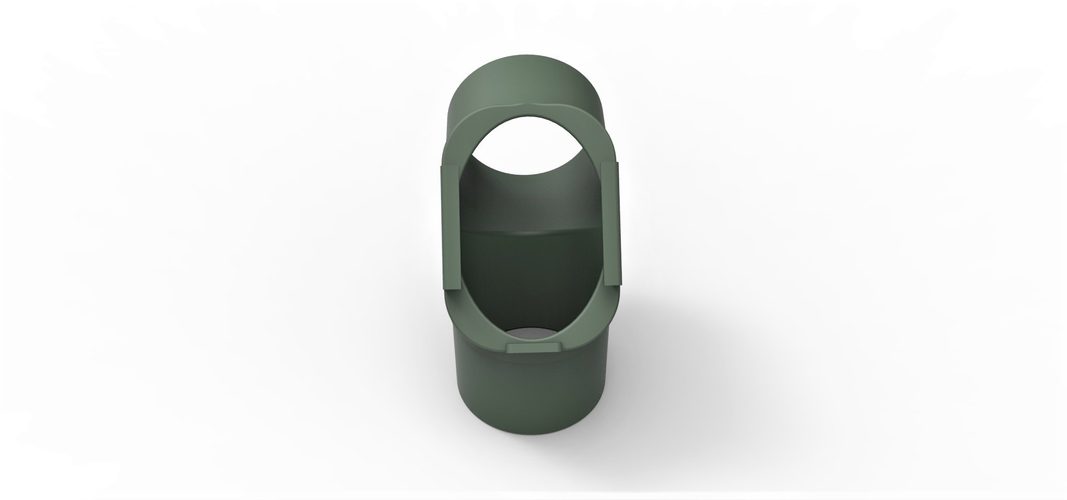

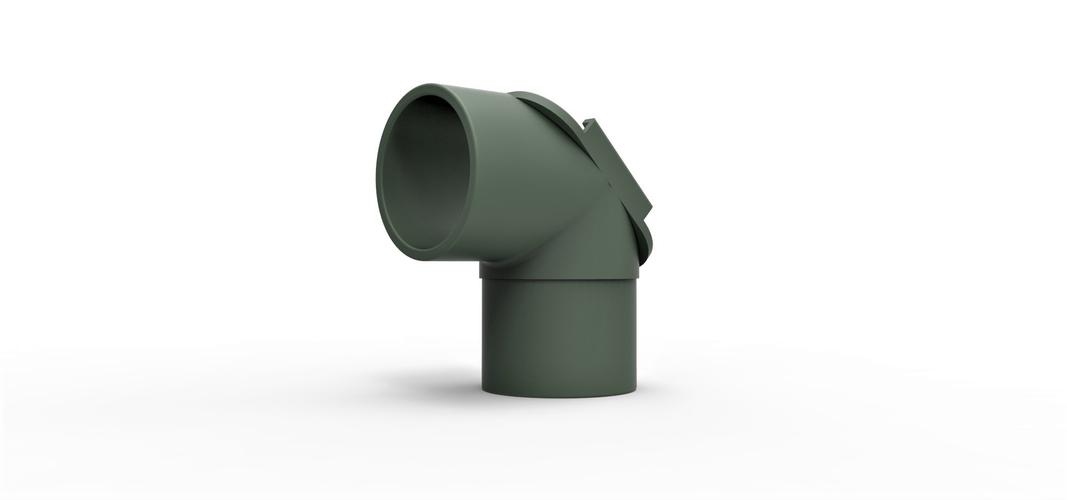

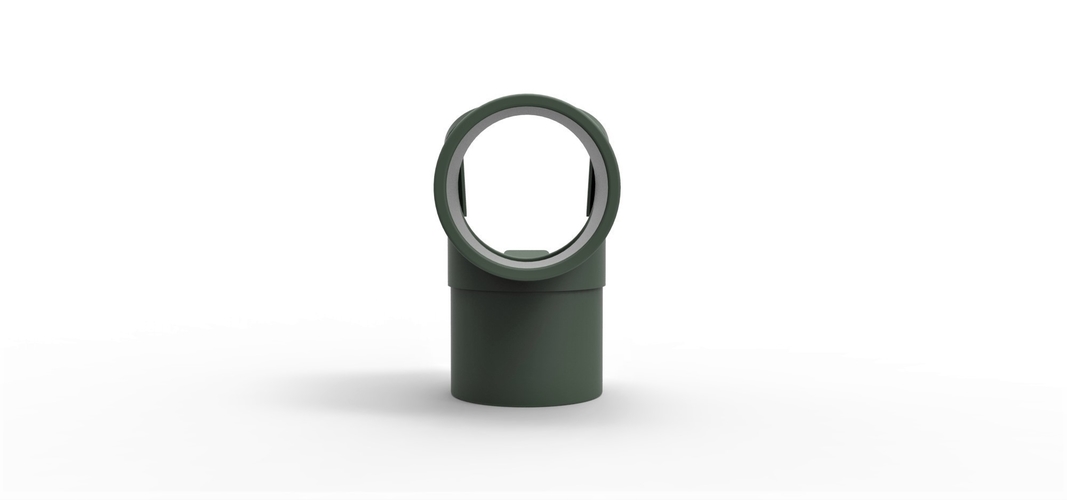

Make your own periscope.

You need to print this model twice.

Model dimensions:

- inner diameter – 50 mm

- outer diameter for tube connection – 56 mm

- height – 104 mm

- width – 58 mm

- length – 92.2 mm

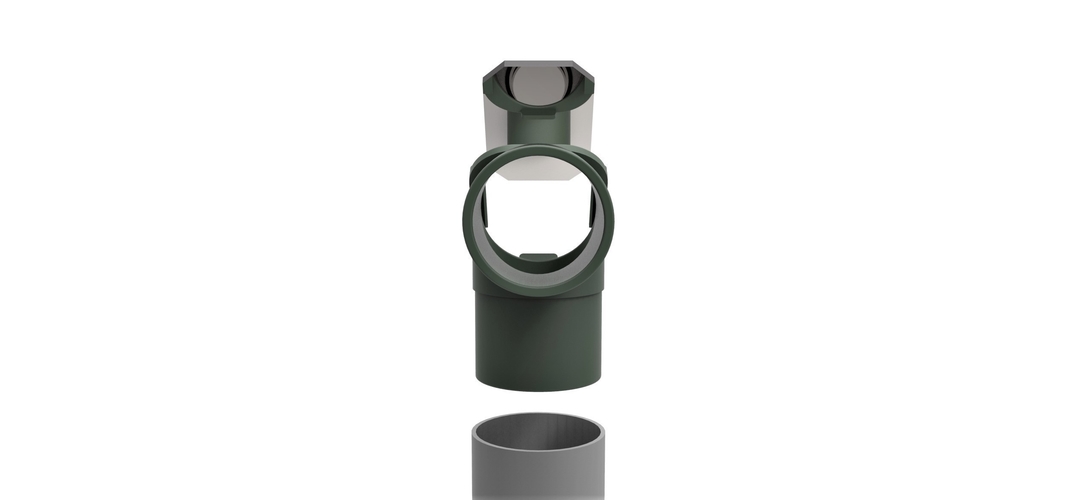

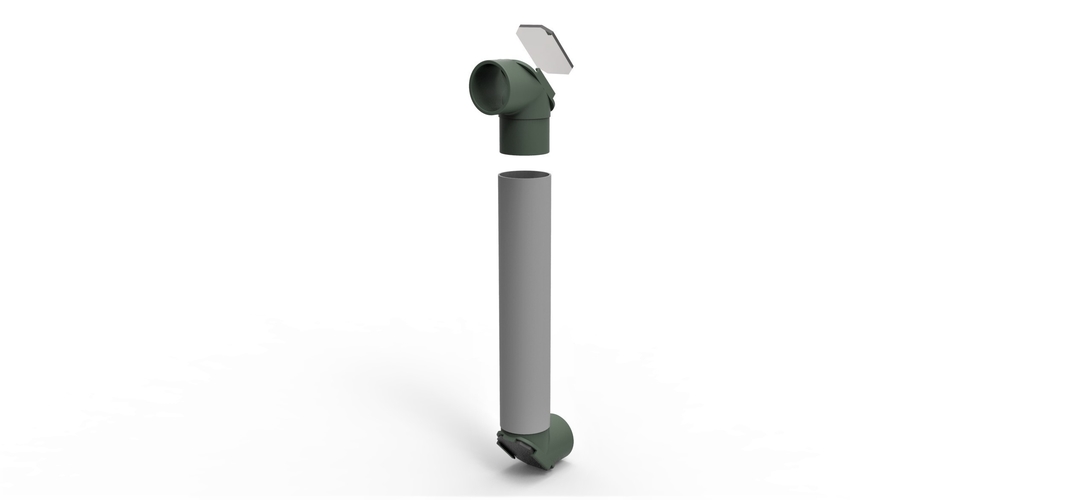

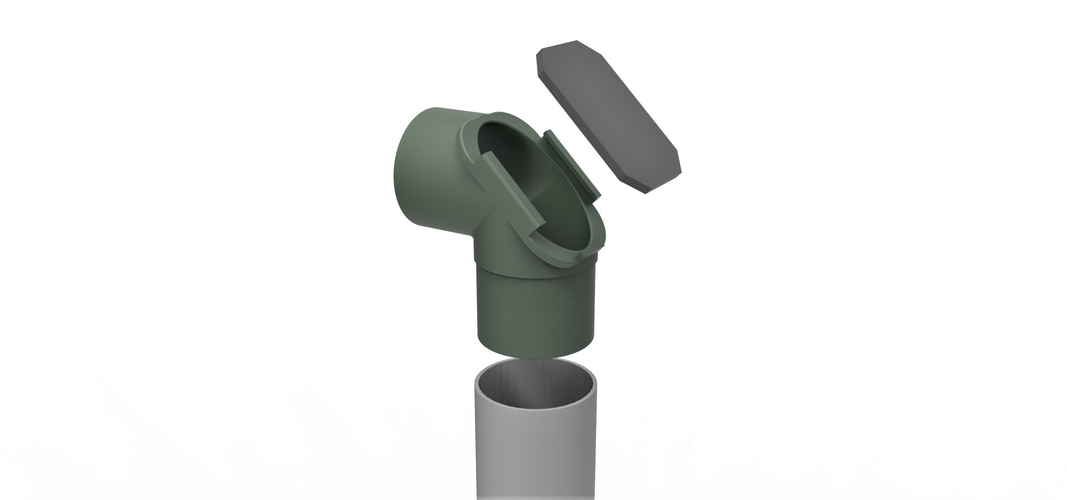

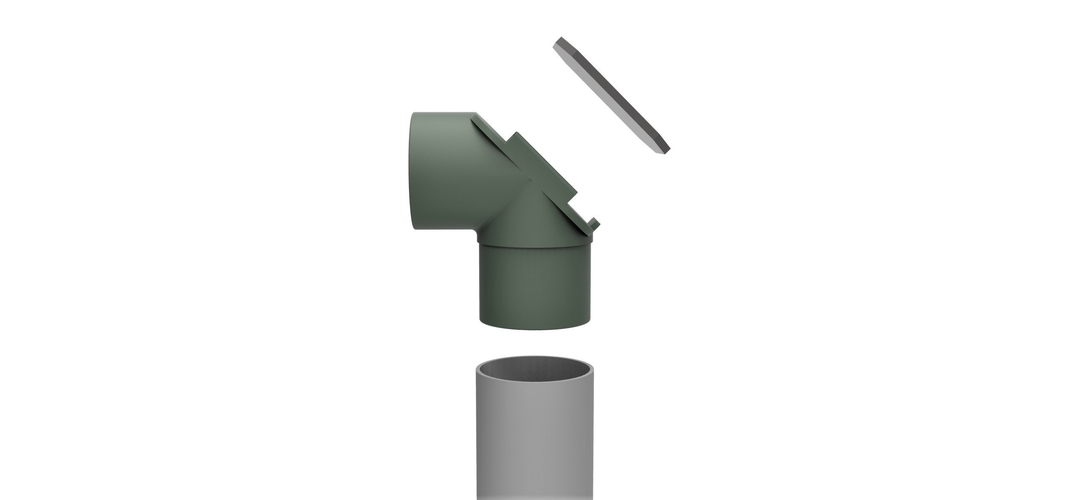

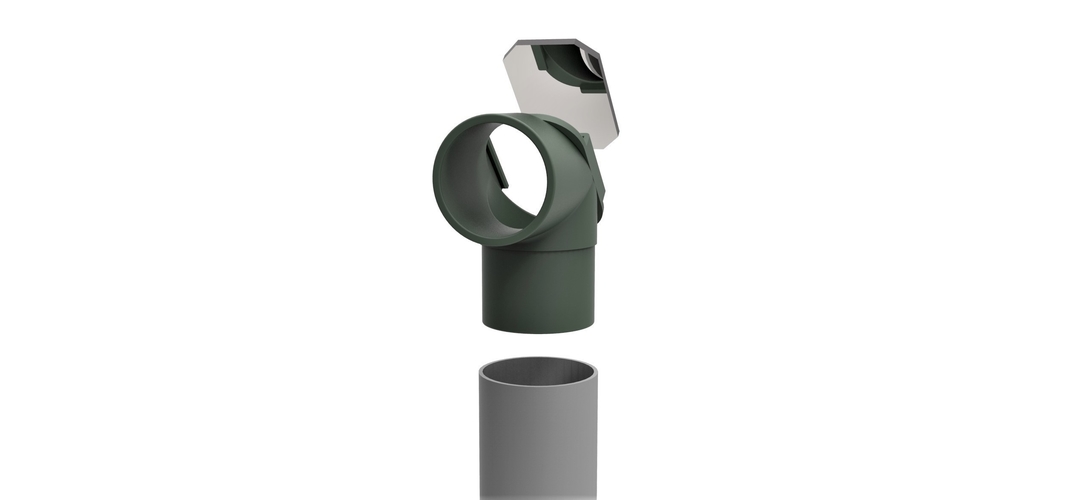

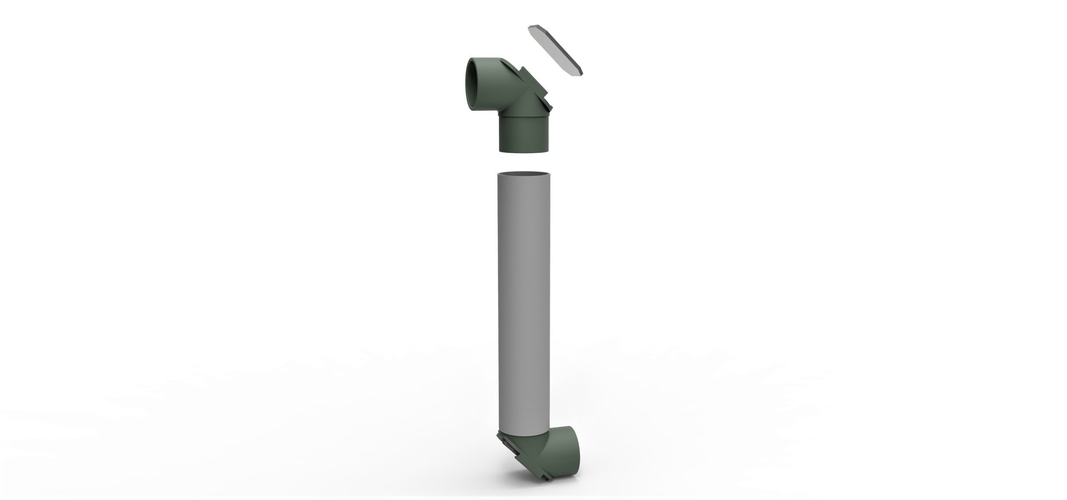

Also use two mirrors 50x75x4 and tube from paper.

Joint all components with glue.

Design Files

File Size

RackMultipart20190725-32132-8u2mri.zip/Body.STL
1.25 MB
RackMultipart20190725-45-10vi2ij.zip/Body.obj
1.72 MB
RackMultipart20190725-45-10vi2ij.zip/Body.mtl
110 Bytes
