Description

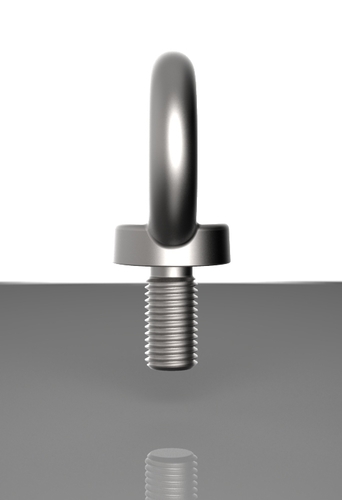

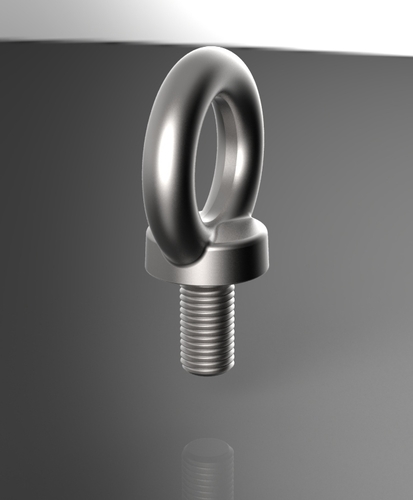

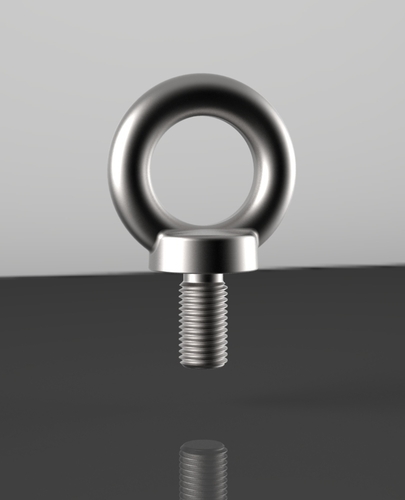

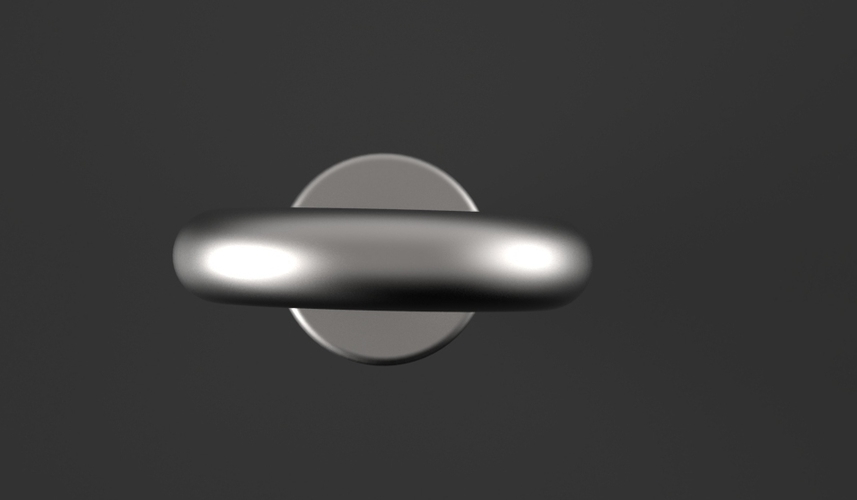

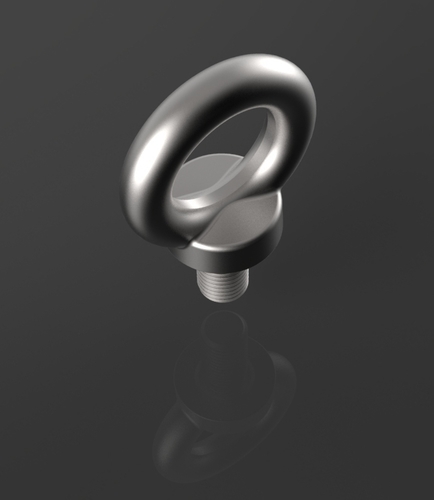

A ring bolt is a bolt with a captive ring on one end and threads on the other end.

Model dimensions:

- height – 95,5 mm

- width - 63 mm

- thickness - 36 mm

Designed in Solid Works 2012, rendered in Keyshot 5.0.99

Design Files

File Size

RackMultipart20190325-17460-hw0zp0.zip/Ringbolt.STL
7.24 MB
RackMultipart20190325-17460-1lakyz4.zip/Ringbolt.obj
6.41 MB
RackMultipart20190325-17460-1lakyz4.zip/Ringbolt.mtl
104 Bytes
