Raspberry Pi coaster

Prints (0)

Description

Hi,

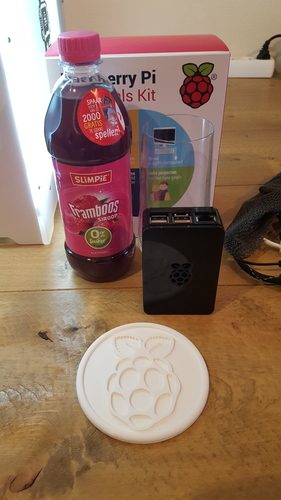

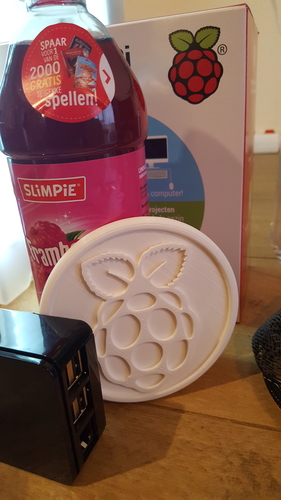

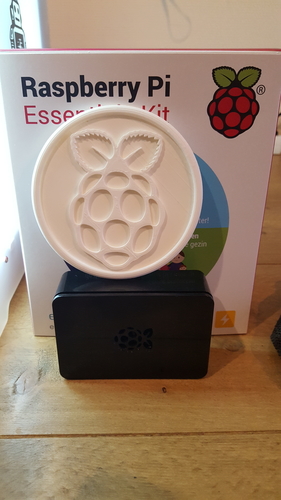

I modelled this Raspberry Pi coaster in no time. Raspberry Pi is a programmable minicomputer. It's a learning module. I'm not great in programming but i like the minicomputer. I use it at home as a desktop to listen music on YouTube. And i also plugged an arduino in the usb port so i can do little arduino tutorials on YouTube. Use this Raspberry Pi coaster to place your favourite drink.

This is a standard size coaster (100 by 100 by 5 mm), to fit in my coasterholder:

https://www.thingiverse.com/thing:3130397

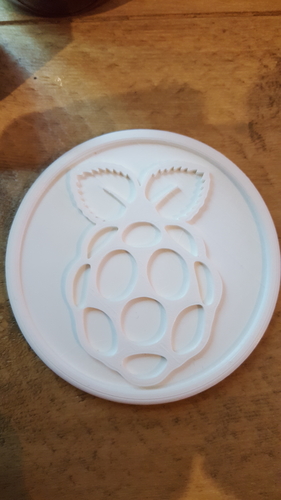

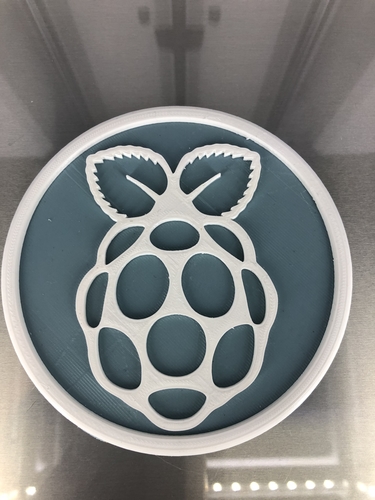

I used a skirt, just to prime my nozzle extra. I have printed this model in Ultimaker white PLA. With a 0.2mm layerheight and 10% infill.

Design process

I picked a logo from my browser and have put it in svg format in inktscape. Opened the svg file in blender and made it a 3D object. In meshmixer i have repaired the file; and erased some aspects. In meshmixer i have also added a coaster. Than i have merged the coaster with the picture after scaling the picture. Saved it as a STL file and sliced it for printing. Cause the model has still some issues even after repairing it in meshmixer; i have decided to export it into Netfabb Online Service. This is an app i discovered recently after using MakePrintable. Cause MakePrintable in my opion only gives us 3 procedures of fixing an STL file and, with Netfabb Online Service the frequency of STL fix procedures is unlimited, my choice was clear. It worked well for me and i could slice the model without any problems.

If you would like to know how i design a 2D picture (google) into a 3D model. Use this link:

https://www.youtube.com/watch?v=g6cmClwLhz8 (video is under 6 min.)

2D to 3D in Blender

use this link to download blender for free: https://www.blender.org/download/

use this link to download inkscape for free: https://inkscape.org/nl/download/

Best,

Raimon Elctrncs

Design Files

File Size

raspberry pi coaster_fixed.stl
2.15 MB
