Original Josef Prusa coaster

Prints (0)

Description

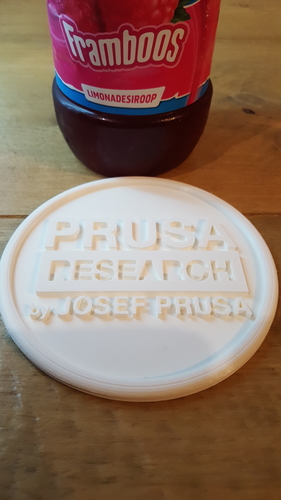

I always wanted an original Josef Prusa 3D printer. And i hope in the future, when i can buy one around the corner, i will be the proud owner of a Original Josef Prusa 3D printer. But for now, i will have to be patient and keep on dreaming. So i made a coaster, with the original logo print. I will use the coaster for my coffee and bottles of water. Cause that's what i drink most of the time. And you can also enjoy your favourite drink with this coaster now. Print it with your favourite color filament, and use your own configured settings. Because this is an easy print. It has no overhang so it doesn't need support material. And that's always a good thing!

This is a standard size coaster (100 by 100 by 5 mm), to fit in my coasterholder:

(https://www.thingiverse.com/thing:3130397).

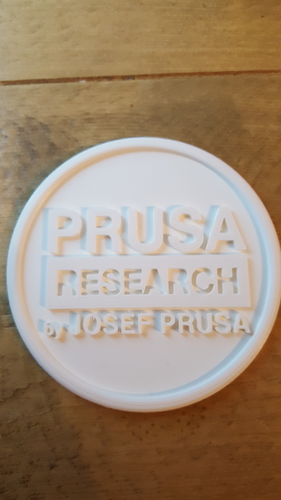

I have printed this 3D model with white Ultimaker PLA. And my resolution is 0.15mm (normal in Cura). My infill-rate is 18%. And i have printed the object with my 0.4mm nozzle at 210 degrees celcius, with heated bed. I used no support. I used a skirt just to get a good first layer, but if your machine primes at the beginning of every print your good to go.

Design process

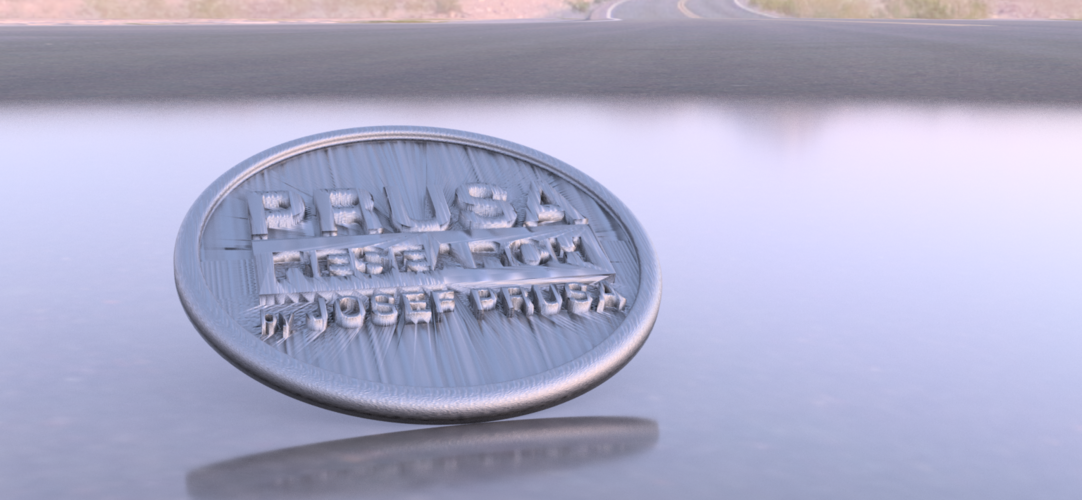

I picked a logo from my browser and have put it in svg format in inktscape. Opened the svg file in blender and made it a 3D object. In meshmixer i have repaired the file; and erased some aspects. In 123design i have added a coaster. Than i have merged the coaster with the picture after scaling the picture. Saved it as a STL file and sliced it for printing.

Greet Raimon

Design Files

File Size

original josef prusa coaster.stl
12.9 MB
