DIY Magnetic Shift Paddles

Prints (3)

Description

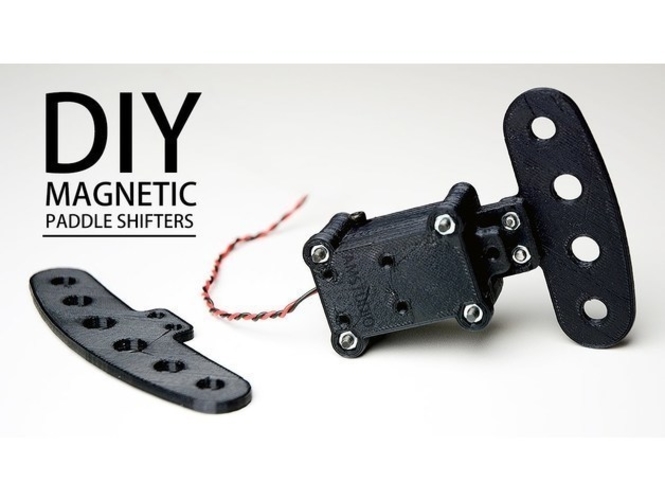

DIY Magnetic Paddle Shifters

Parts per Paddle Shifter

2x M3 Cap socket screws 10mm eBay https://ebay.to/2kolXNE

5x M3 Cap socket screws 30mm https://ebay.to/2kolXNE

2x Neodymium magnets https://ebay.to/2lETnrz

1x Micro lever switch eBay https://ebay.to/2vERsFo

Wire https://goo.gl/jMLLa5

Wire Bulk eBay https://goo.gl/msz99e

Hot glue https://goo.gl/snxe3j

Glue https://goo.gl/3UiuBD

Superglue

Solder https://goo.gl/gZZjvP

Soldering Iron https://goo.gl/T3CRNq

Soldering iron I use https://ebay.to/2Q5JFgj

Step by Step build tutorial below

Credit to Jkoljo

FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE

COPYRIGHT AMSTUDIO 2018 - ALL RIGHTS RESERVED

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model.

Design Files

File Size

READ ME.txt
181 Bytes
f1_paddle.STL
169 KB
paddle_hinge_v2.STL
145 KB
shifter_unit_btm.STL
700 KB
shifter_unit_switch_stop_plate.STL
316 KB
shifter_unit_top.STL
316 KB
