Smartwear charging station

Prints (0)

Description

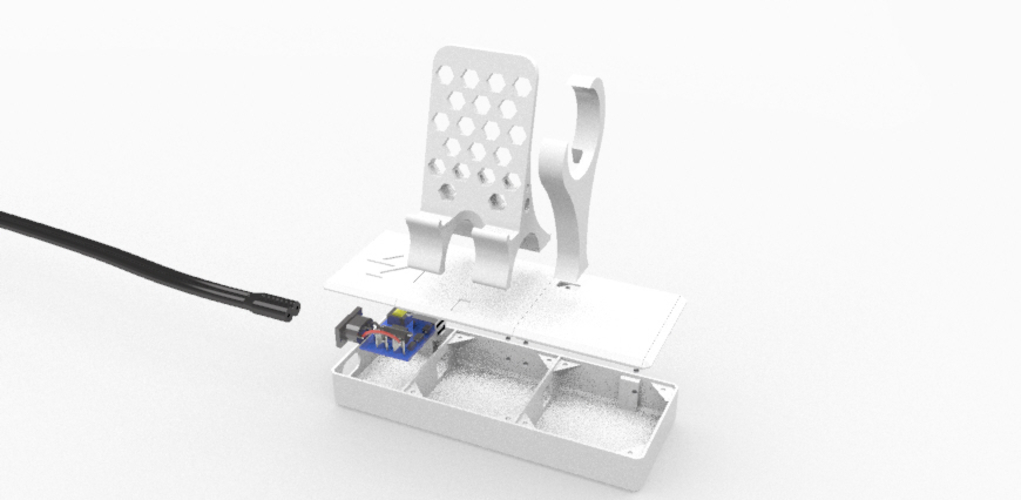

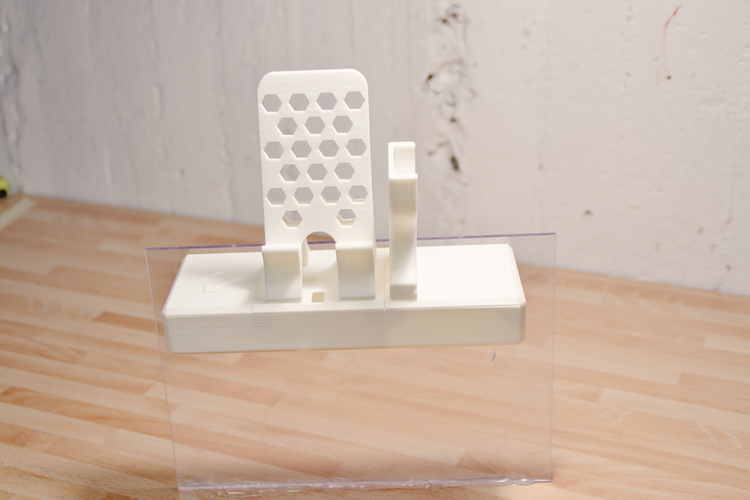

This is a charging station for your elektronical devises such as smartphones or smartwatches. It can be mounted to a wall. You can also use any holder for you smartphone that fits on the covers of the box. I added covers without the holes, so you can use different holders (e.g. two smartphone holders) and add holes for the cable where you need them. Only the position of the covers need to remain. You always need cover D2 and D3. They will fit, but the postition of the magnets wont fit perfect, so it won't hold as strong as with the correct postioning. I also added a split box version for the ones whos printer doesn't want to print the box in whole.

Feel free to take a look at the assembly video: (Audio is in German)

https://www.youtube.com/watch?v=l9q7lolTisA&t=92s

If you want to build it you need additional to the printing parts:

16 Neodym-magnets size 3mmx1mm https://www.youtube.com/redirect?q=https%3A%2F%2Fwww.ebay.de%2Fitm%2FNeodym-Magnete-super-stark-Scheiben-W%25C3%25BCrfel-N35-N45-N50-doppelt-vernickelt%2F222370391562%3FssPageName%3DSTRK%253AMEBIDX%253AIT%26var%3D521238781775%26_trksid%3Dp2057872.m2749.l2649&redir_token=zB24NkayzuescgqFQM1mzY7K7b98MTUyOTE2MDkxMEAxNTI5MDc0NTEw&v=l9q7lolTisA&event=video_description

An USB 2 port charger like this one: https://www.youtube.com/redirect?q=https%3A%2F%2Fwww.ebay.de%2Fitm%2FUniversal-2fach-Mehrfach-2A-Multi-USB-Port-220V-Netzteil-Adapter-Ladegerat-Wand%2F272761940854%3Fhash%3Ditem3f81e0eb76%3Ag%3AlcsAAOSwb69ZzS6Q&redir_token=zB24NkayzuescgqFQM1mzY7K7b98MTUyOTE2MDkxMEAxNTI5MDc0NTEw&v=l9q7lolTisA&event=video_description

An C8- socket: https://www.youtube.com/redirect?q=https%3A%2F%2Fwww.ebay.de%2Fitm%2FC8-Einbaudose-Euro-Stecker-Dose-Einbau-IEC-60320-C8-VDE-Euro2-Euro8-Acht-Buchse%2F130968874474%3Fhash%3Ditem1e7e5a6dea%3Ag%3AECwAAOSw1NFaNS1K&redir_token=zB24NkayzuescgqFQM1mzY7K7b98MTUyOTE2MDkxMEAxNTI5MDc0NTEw&v=l9q7lolTisA&event=video_description

An C7 electrical wire: https://www.youtube.com/redirect?q=https%3A%2F%2Fwww.ebay.de%2Fitm%2FStromkabel-Euro-8-C7-Netzkabel-Doppelnut-1m-mit-Eurostecker%2F282854119575%3Fhash%3Ditem41db6b5897%3Ag%3AnHoAAOSwqbxaiuWX&redir_token=zB24NkayzuescgqFQM1mzY7K7b98MTUyOTE2MDkxMEAxNTI5MDc0NTEw&v=l9q7lolTisA&event=video_description

Design Files

File Size

Box second half.stl
181 KB
Box first half.stl
147 KB
Gear S3 Holder.stl
80.9 KB
D3.stl
160 KB
D2 without hole.stl
109 KB
D1 Flash.stl
8.68 KB
D1.stl
54.4 KB
D2.stl
164 KB
D3 without hole.stl
106 KB
D4.stl
49 KB
Gear S3 Holder 2.stl
125 KB
Smartphone holder.stl
515 KB
Box entire.stl
490 KB
