3D printed shifter simracing

Prints (0)

Description

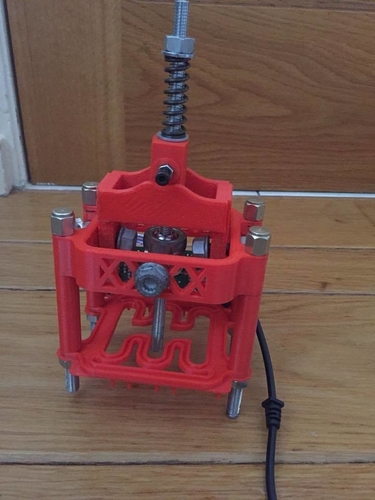

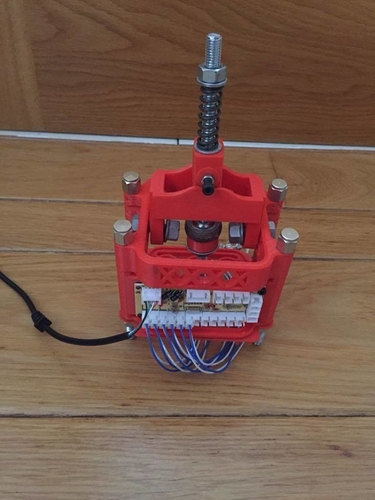

Make a DIY H shifter for your racing simulator with 3d printed parts. This model can be customized to suit your sim racing needs. By designing a new gate and adding more switches, more select-able gears can be added. In this configuration it has 6 gears in total.

PARTS USED Gear Knob eBay https://goo.gl/Jf3jFL Spring 30mm eBay https://goo.gl/c1rzyZ Washers https://goo.gl/cPV74z eBay https://goo.gl/Y9QuSn M5 bolt 25mm eBay https://goo.gl/9d6tpq M5 nuts eBay https://goo.gl/5BGxc5 Bearing large 688 eBay https://goo.gl/mhWyUr Bearing small 625 eBay https://goo.gl/Enw3mm Ball Joint eBay https://goo.gl/D83gcg M8 bolts 25mm eBay https://goo.gl/av21rt M8 NUTS eBay https://goo.gl/URv7AX M8 Threaded rod eBay https://goo.gl/ojc2kJ M8 Lock nuts eBay https://goo.gl/x1qMQX USB Encoder eBay https://goo.gl/G3Ldzz Switches Micro lever eBay https://goo.gl/MrhV1A

Design Files

File Size

Assy.STL
6.58 MB
Center.STL
198 KB
Center_top.STL
67.1 KB
Lower_frame.STL
1.61 MB
Lower_ring.STL
234 KB
Switch_mount.STL
69 KB
tussenbusje printplaat.STL
36.8 KB
tussenbusje.STL
14.1 KB
Upper_frame.STL
305 KB
