Destiny 2 Symphonic Ghost shell

Prints (0)

Description

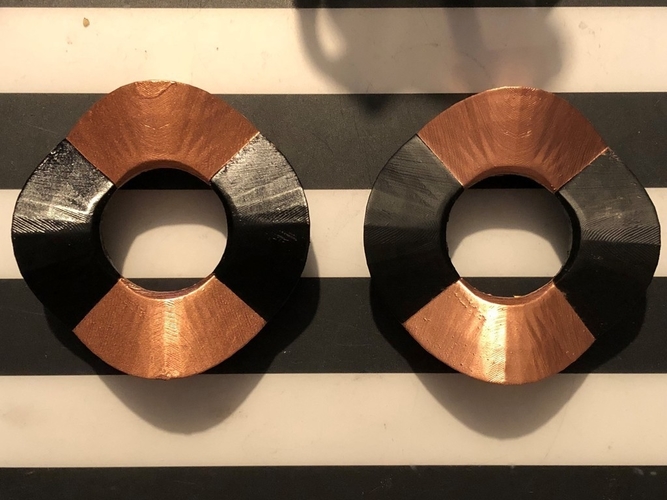

Summary This is the more simply of the new Ghost shell types from Destiny 2. I tried printing as 2 halves but found that masking and painting was a pain. I broke it out into 8 segments (4 front and 4 rear) so they can be individually painted. Once painted glue 4 together into a ring for front and 4 for the back. There are 2 large round holes in the side segments to allow fixing rare earth magnets that will hold the 2 halves together. The core is hollow and you will need to glue it together after painting. There is lots of space for fitting whatever you want inside for operation of the Ghost when complete. For the front print 2 "leftseg.stl" and 2 "topseg.stl". For the back print 2 "backseg.stl" and 2 "topseg.stl" Print Settings Printer: Anet A2 Rafts: No Supports: No Resolution: 0.1mm layers for the top, Infill: 5% or more (to suit your taste) Notes: Depending on your bed adhesion a nice brim will help the piece stop curling and stay upright during the print.

Design Files

File Size

coreback.stl
428 KB
topsegmagnethole.stl
166 KB
topseg.stl
147 KB
backseg.stl
112 KB
corefront.stl
74.9 KB
leftseg.stl
2.55 MB
