Tripod Mobile Phone Clamp

Prints (0)

Description

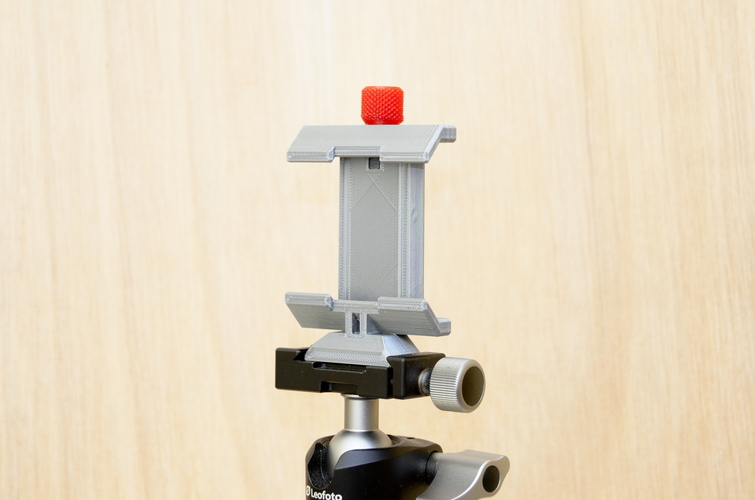

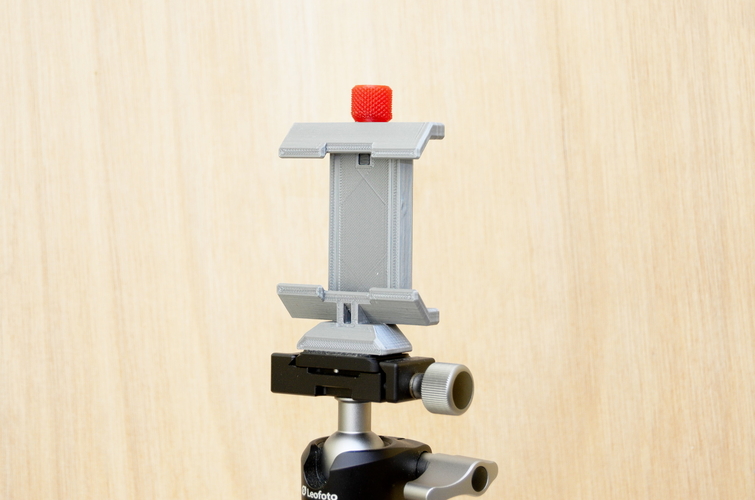

A clamp to mount your mobile phone on a tripod

This is a remix of the clamp of the Modular Mounting System . I really like the clamp but I wanted to be able to mount it on a tripod. So I add a base that can be screwed on tripod plate (with 1/4-20 screw) or mount on arca swiss type clamp. I separate threads so they can be printed with optimal orientation without support. This way the threads are very well printed and they are strong.

Post-Printing Use some acetone if you print with PLA or ABS  (or some super glue, depending the filament material) before inserting the thread part into the main part.

Acknowledgements Thanks yyh1002 for sharing his work

Design Files

File Size

M5.0_Nut.stl
73 KB
Phone_clamp_up - arca.stl
308 KB
Phone_clamp_down_v3.stl
416 KB
M5_knob_for_phone_v4.stl
1.42 MB
Phone_clamp_up - threads.stl
2.45 MB
M5x65_D.stl
3.52 MB
