Summary I'm not including any wiring instructions as I am not an electrician. I searched how to wire two lights to one switch and kept searching till I felt confident enough. If you don't know what you are doing then don't do it. I am not responsible if you get shocked or any other bad thing that might happen. With that out of the way the wiring is super simple.

Printed without support and 0% infill. Models uploaded in correct orientation for printing.

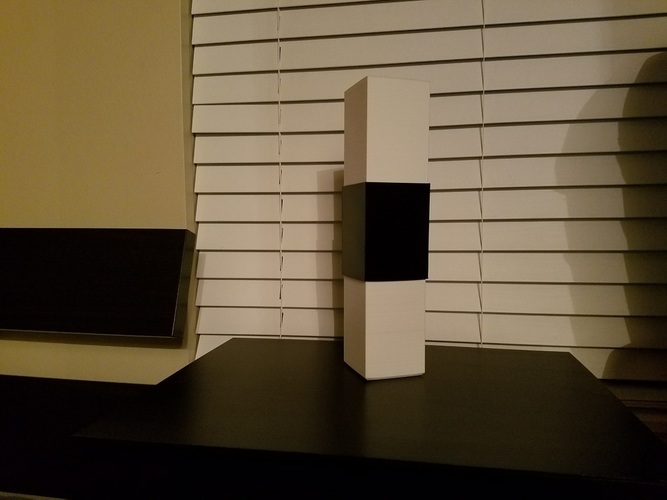

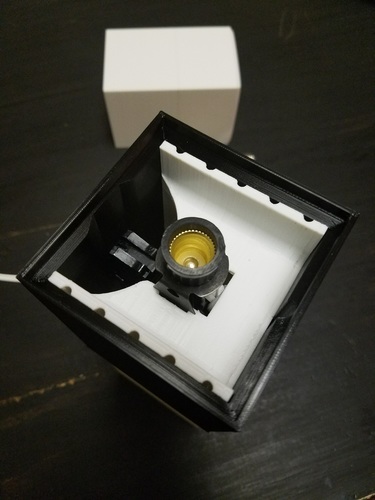

LampTopBottomWhite - Print 2 I had the best luck printing separately LampMidAnyColor - Print 1 I printed in black CenterInsertAnyColor- Print 1 This slides into LampMidAnyColor and holds the bulbs and wiring

Parts needed

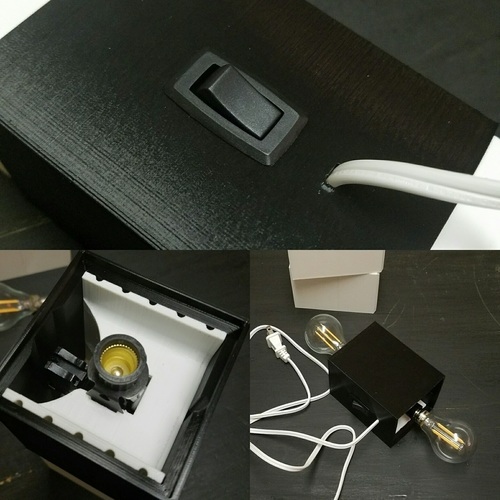

Candelabra Base x2  - I cut the roller switches out and used just the clip in bulb sockets and one plug end. The rest of the wiring was done with the second cord.

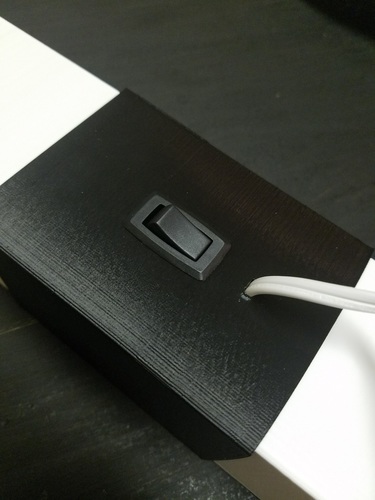

Rocker switch 16a 125v - I like using these because they mount clean... and I had one laying around

Bulbs - http://amzn.to/2pkI6Mi - Use E12 LED lights to cut down on heat and I wouldn't go any higher than 40 Watt equivalent.

Other things spade connectors, wire nuts, heat shrink, electrical tape, etc

Again - I'm not including any wiring instructions as I am not an electrician. I searched how to wire two lights to one switch and went from there. If you don't know what you are doing then don't do it. I am not responsible if you get shocked or any other bad thing that might happen.

Design Files

File Size

CenterInsertAnyColor.stl
388 KB
LampTopBottomWhite.stl
24.6 KB
LampMiddleAnyColor.stl
46.2 KB
