Magnetic Gear Toy
Free

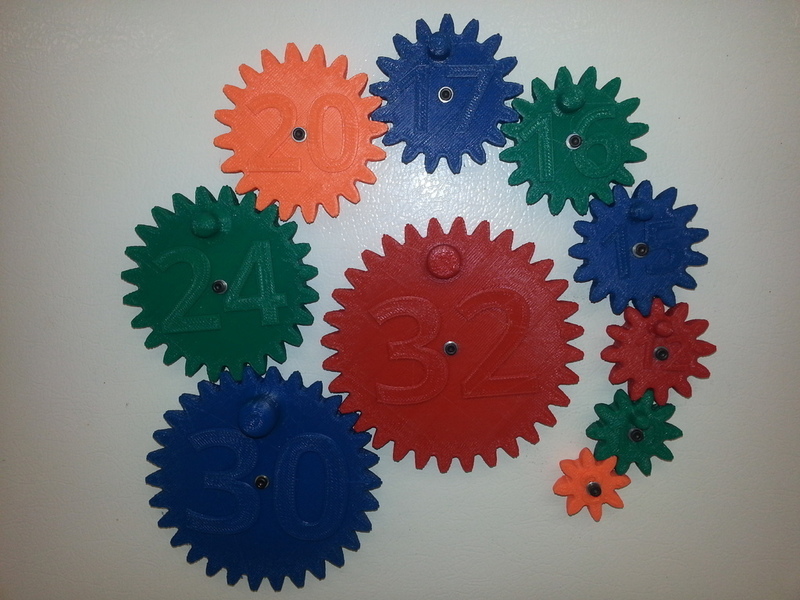

Summary Refrigerator magnet learning gear toy I made for my niece and nephew. Each gear has the # of teeth printed on them and a marker for one tooth, this allows teaching division ratios and basic counting. After printing the orange gears I realized the necessity of having a handle to grab and spin. It has been edited on in the stl file. The chamfers on the bottom are two fold. For one, it is easier for little fingers to pull gears off the fridge and for two it makes a nice round circle for your first layer. Post-Printing Assembly: After printing I cleaned out holes with appropriate drill sizes Parts: QTY 1: gear QTY 1: QTY 1: 10mm M3 shcs QTY 1: M3 washer. How I Designed This Designed on Onshape It's in a public folder. If you would like to see them they are located at If you would like to add to them and keep them in my repository please pm me and I will try to send an invite (Onshape please allow public forks!!!)

Loading comments...

Loading prints...

Magnetic Gear Toy

likes
2 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

10 downloadable files:

View 3D
Magnetic_Gear_Toy_-_8T.stl
STL Model
993.1 KB
File size
View 3D
Magnetic_Gear_Toy_-_16T.stl
STL Model
1.9 MB
File size
View 3D
Magnetic_Gear_Toy_-_24T.stl
STL Model
2.2 MB
File size
View 3D
Magnetic_Gear_Toy_-_20T.stl
STL Model
2.1 MB
File size
View 3D
Magnetic_Gear_Toy_-_12t.stl
STL Model
1.6 MB
File size
View 3D
Magnetic_Gear_Toy_-_32T.stl
STL Model
2.7 MB
File size
View 3D
Magnetic_Gear_Toy_-_10T.stl
STL Model
1.3 MB
File size
View 3D
Magnetic_Gear_Toy_-_30T.stl
STL Model
2.7 MB
File size
View 3D
Magnetic_Gear_Toy_-_15T.stl
STL Model
1.8 MB
File size
View 3D
Magnetic_Gear_Toy_-_17T.stl
STL Model
1.9 MB
File size
