Open-source lab jack

Prints (0)

Description

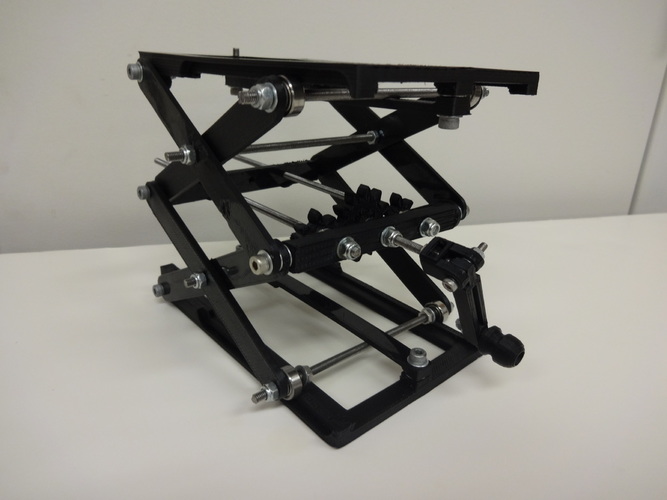

Summary This is a lab jack, which is a height adjustable platform ideal for mounting optomechanical sub-assemblies, which require height adjustment. This component is part of the Open-source optics project, whose goal is to radically reduce the cost of scientific optical hardware: by the [Michigan Tech's Open Sustainability Technology Research Group]( http://www.mse.mtu.edu/MOST). For similar see the Open-Source Lab How to Build Your Own Hardware and Reduce Research Costs Instructions Lab jacks cost between about $30 and several hundred dollars. Use the OpenSCAD files to customize it for your application, print on your favorite open source 3-D printer and enjoy for a few bucks. This works well and can get a good quality z-axis small change for any standard optical arrangement. However, the gearing is a bit sticky so will need improved if you are going to automate with lots of precise height changes. Full information here on appropedia Thanks to Nick for the designs and GregFrost for the gears. This component is part of the Open-source Optics Library: Zhang C, Anzalone NC, Faria RP, Pearce JM (2013) Open-Source 3D-Printable Optics Equipment. PLoS ONE 8(3): e59840. This is part of a larger project to reduce the cost of scientific equipment using open-source hardware. Read more here

Design Files

File Size

Platform.stl
81.4 KB
Bar_Holder.stl
16 KB
Central_Bars.stl
266 KB
Scissor.stl
29.7 KB
Lab_Jack_M4_Gears.stl
90.3 KB
Hand_Crank.stl
1.64 MB
