Magnet Mannequin

Prints (0)

Description

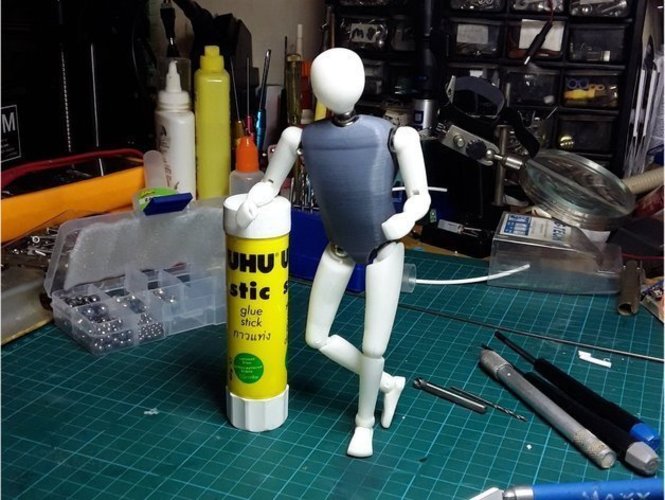

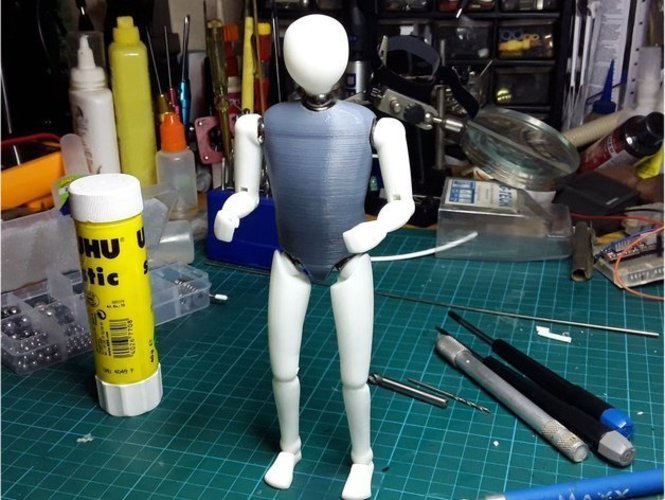

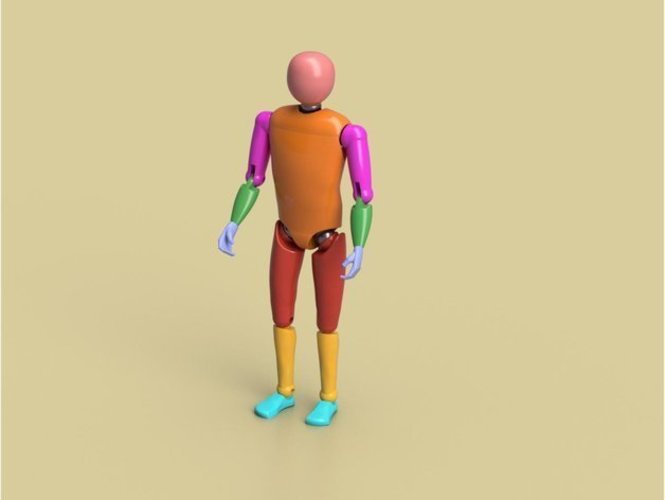

Poseable Mannequin model 10th scale ( +/- 180 mm high) .

Adapted to use Neodymium disk magnets & 10mm steel balls. I have only provided the left side stl's as they can be mirrored in your slicer

You can also mirror in meshmixer Here's a quick video i made on how to do this >>

The elbows, knees & ankle joint are simple 3mm dia pins ( 3mm filament or BBQ skewers) The hands are attached with 1.75 mm filament puch fit pins to allow articulation

Magnets http://www.banggood.com/20pcs-N50-Strong-Countersunk-Ring-Magnets-12-x-3mm-Hole-4mm-Rare-Earth-Neodymium-p-979800.html?p=X9120314803172015043 Steel balls ( any magnetic 10mm steel balls will work) http://www.banggood.com/16Pcs-10-M4-Threaded-Steel-Ball-Rod-Ends-For-Kossel-3D-Printer-Magnetic-Joints-p-1003375.html?p=X9120314803172015043

These are affiliate links that will cost you nothing and will help me gain points for my next project Thanks

Design Files

File Size

PM_Mannequin_R1-_left_lower_arm.stl
1.01 MB
PM_Mannequin_R1-_left_lower_leg.stl
1.49 MB
PM_Mannequin_R1-_left_upper_arm.stl
1.32 MB
PM_Mannequin_R1-_left_upper_leg.stl
1.95 MB
PM_Mannequin_R1-head.stl
2.04 MB
PM_Mannequin_R2-torso.stl
3.41 MB
PM_Mannequin_R1-_left_foot.stl
2.4 MB
PM_Mannequin_R1-_left_hand.stl
2.62 MB
